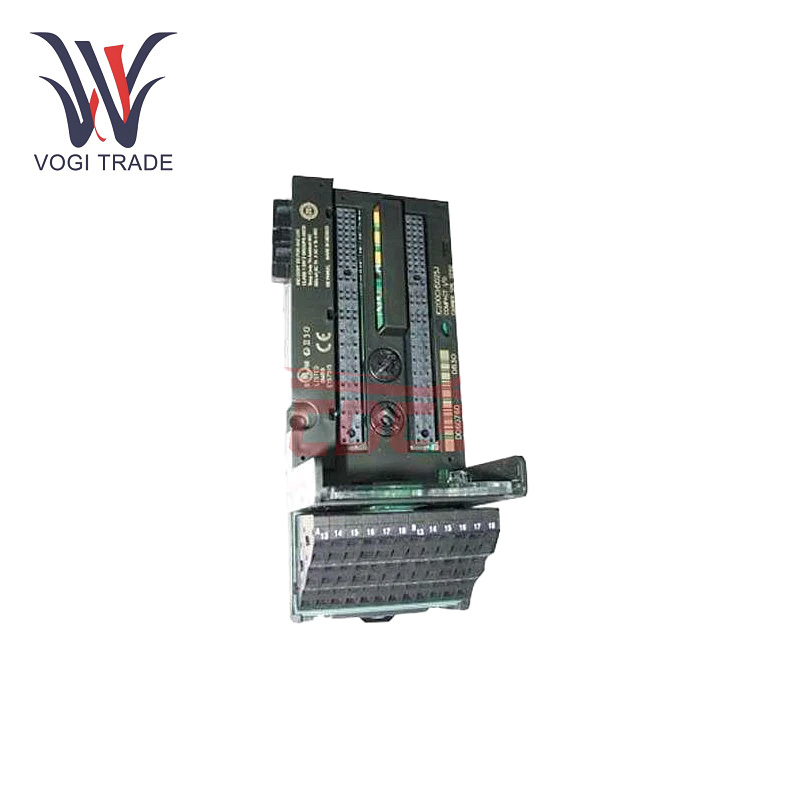

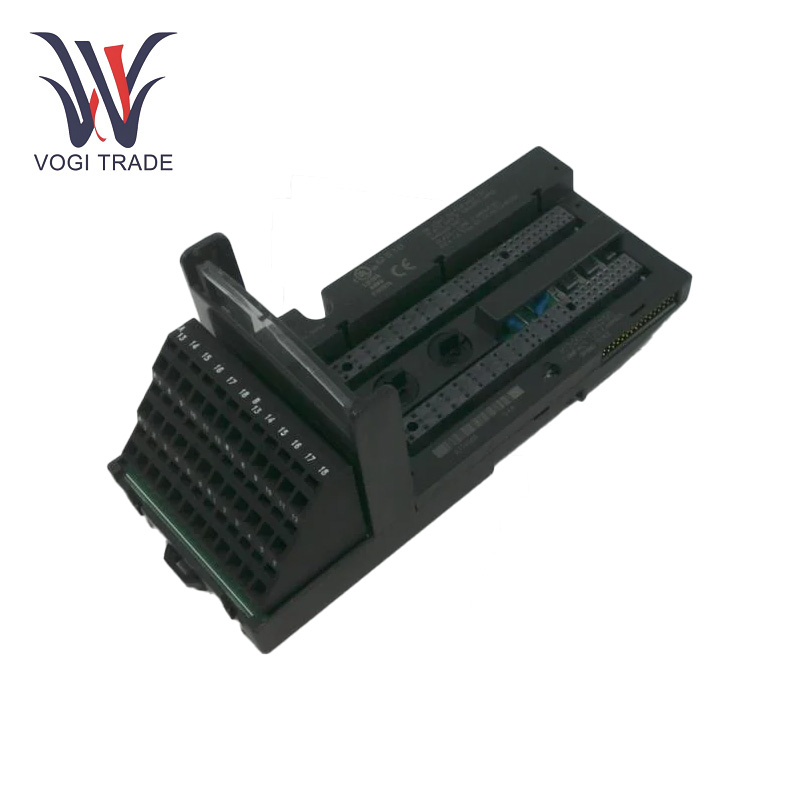

Brand: GE Description: I/O Carrier Module Condition: Brand New Certificate：COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 25 Payment Term: T/T Shipping Port: ShenZhen GE IC200CHS025 is a compact I/O carrier module designed for the VersaMax series. It features 36 spring-clamp-style terminals for field wiring, accommodating up to 32 input/output points and four power connections.
|
Manufacture |
GE |
|
Model Number |
IC200CHS025 |
|
Ordering Number |
IC200CHS025 |
|
Catalog |
Versamax |
|
Country Of Origin |
USA |
|
HS CODE |
85389091 |
|
Dimension |
16cm x 6.8cm x 7cm |
|
Packing Dimension |
19cm x 9cm x 10cm |
|
Weight |
0.7kg |
Technical Parameter
Terminal Type: 36 IEC box-style terminals.
Single Wire Gauge: AWG 14 to AWG 22.
Dual Wire Gauge: AWG 18.
Vertical Spacing: 2 inches.
Horizontal Spacing: 1 inch.
Maximum Voltage: 264 V AC.
Surge Protection: Can withstand transients up to 300 V AC.
Operating Temperature: -40 to 60 °C.
Functional Features
Stable Power Supply: GE IC200CHS025 ensures that a stable power supply is provided to I/O modules and other devices connected to the system, thereby contributing to the stable operation of the entire system.
Compact spring-type I/O carrier module design : Because of the vertical installation (spring-type) of the compatible I/O modules, I/O modules can be easily disassembled, and boundary field wiring will not be affected.
Transmission of Signals: GE IC200CHS025 performs exceptionally well in terms of signal transmission, transmitting a variety of control signals with high fidelity and ensuring reliable communication between the different components in the system.
Compatible Connection: The 14 terminals on the module can connect a single copper wire or double copper wire, making it rich connected.
Application Areas
Power Plants：In power plants, GE IC200CHS025 is used to interconnect and control I/O devices, such as sensors and actuators, connected to DCS monitoring systems to maintain the stability of power generation equipment and the smooth operation of the production process.
Industrial Automation Production Lines：It is mainly used in automobile manufacturing, food processing, textile and other industrial production automatic production line, control the operation of motor, conveyor, manipulator and other equipment, complete the automation of production process, improve production efficiency and product quality.
Chemical Industry: GE IC200CHS025 is used to monitor and control parameters such as temperature, pressure, and flow in chemical production processes, and to control the opening and closing of valves and pumps to ensure the safety and stability of chemical production.
Water Treatment and Environmental Protection：In water treatment plants and environmental pollution projects, it controls water pumps, aerators, water quality monitoring equipment and other devices, and achieves automated control of water treatment processes and monitoring environmental parameters.
Substation automation: GE IC200CHS025 is used in the substation comprehensive automation system to connect, control and monitor various electrical equipment and protection devices, realize functions such as data acquisition, monitoring and control, and ensure that substations operate safely and reliably.
