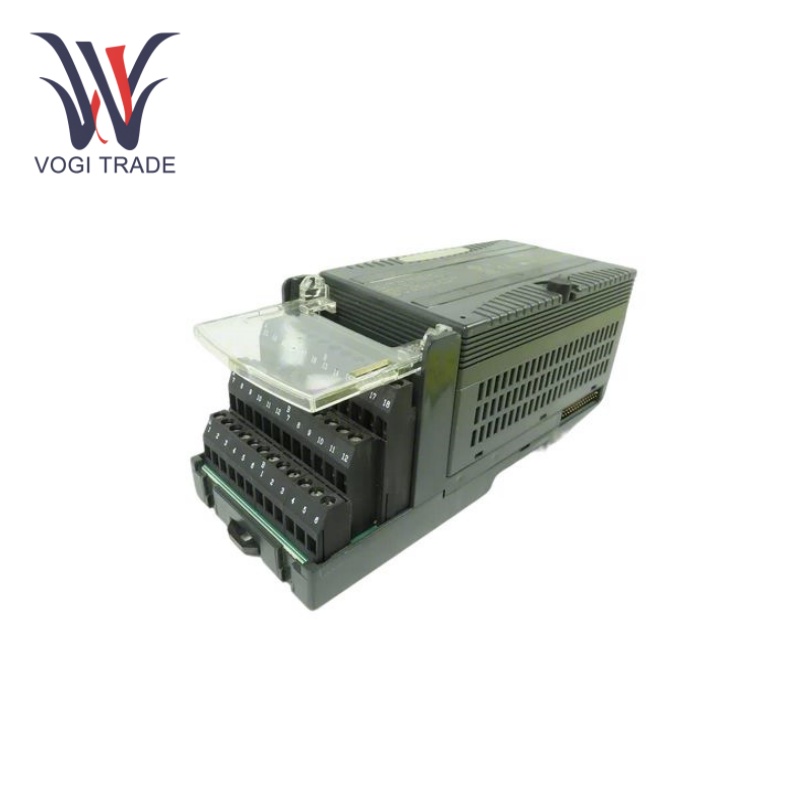

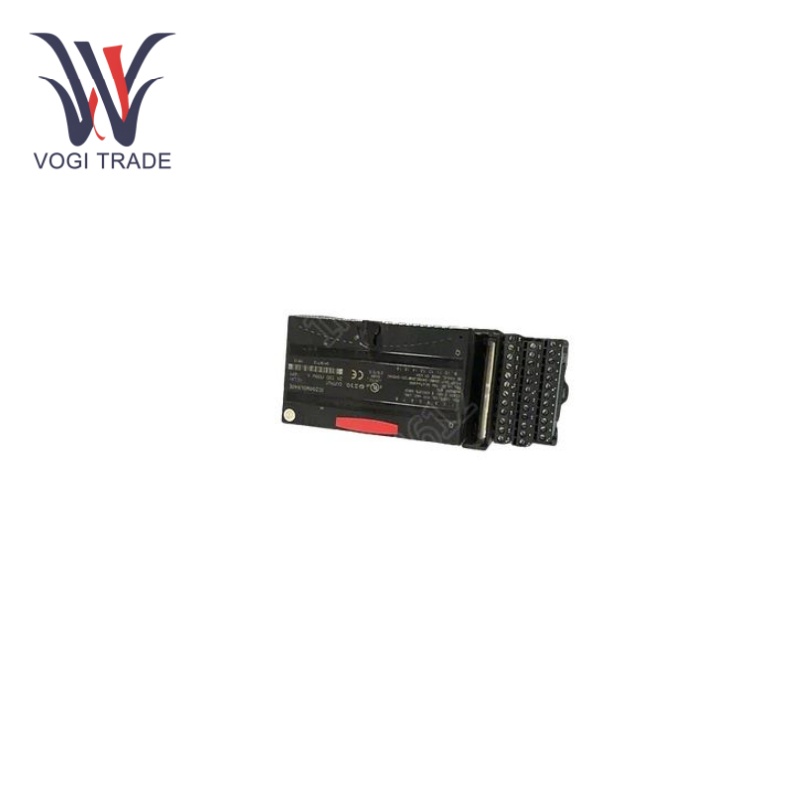

GE IC200MDL940

Technical Parameter

Number of outputs: 16.

Output type: Independently isolated normally open (N.O.) or Form A contacts.

Output voltage: 0 to 125VDC.

Output current: Maximum rated current is 2.0 amps.

Output voltage drop: 0.3V.

Channel response time: 10ms.

Switching frequency: Maximum switching frequency per output contact is 20 cycles per minute when used with inductive loads.

Maximum backplane current draw: 490mA.

Operating temperature range: 0 to 60 °C.

Compliant: CE and cULus compliant.

Functional Characteristics

Isolated Output Points:GE IC200MDL940 has sixteen isolated or form A contacts. With the built-in channel-to-channel isolation,  each contact output can be wired to different voltage sources and utilized in complex environments without interference between channels.

Reliable Relay and Contact: The embedded relay adopts fixed coil and moving armature structure, whose contacts are also silver alloy material, so its service life and switch reliability are above the industry standard to ensure the output of the module is stable and reliable.

Low Power Consumption: GE IC200MDL940 with a five-volt output backplane (which provides the primary power source) can draw up to 490 milliamps of current and has low power consumption which reduces the power load of the whole system.

Fault Diagnosis

Output Voltage and Current Measurement:Check the measured values against the normal output voltage and current range. However, if the measured data is far away from the normal range, it may indicate that there is a problem with the module's power supply circuit, relay contacts, or external load.

Isolation Resistance Test: Use megohmmeter to test the insulation resistance between GE IC200MDL940 input and output, as well as between channels. The lower isolation resistance than normal may mean the insulation performance of the module has a problem, beyond the signal interference, may even damage the equipment.

Application Fields

Industrial automation: In industrial automation production lines, such as automotive manufacturing, mechanical processing and food processing industries, GE IC200MDL940 can be used to control various actuators, such as relays, solenoid valves and indicator lights, realize the automation control of production process, improve production efficiency and quality.

Power Generation and Distribution: The module can be utilized for controlling and protecting power equipment, including circuit breakers, contactors, and relays, in power generation and distribution systems. It is also applicable to the monitoring and control of the power grid to ensure the safe and stable operation of the power grid.

Building automation: GE IC200MDL940 can be used to control the corresponding electrical equipment in building automation systems, such as lighting control, air conditioning control, and elevator control, realizing the intelligent control and energy-saving management of the building.

Process Control: In the process control industry, especially in petrochemical, chemical and pharmaceutical industries,GE IC200MDL940 can be used for the control and monitoring of process equipment (including pumps, valves, reactors, etc.), to provide process equipment operation status, to ensure the operation of the production process normal, improve the safety and reliability of production.
