Brand: GE Description: Power supply module Condition: Brand New Certificate：COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 6 Payment Term: T/T Shipping Port: ShenZhen GE IC200PWR002 has overload and short-circuit protection. It can resist the rigors of a demanding industrial environment, especially resistance to both electrical noise stemming from switching and temperature spikes.
|
Manufacture |
GE |
|
Model Number |
IC200PWR002 |
|
Ordering Number |
IC200PWR002 |
|
Catalog |
VersaMax |
|
Country Of Origin |
USA |
|
HS CODE |
85389091 |
|
Dimension |
13.34cm x 5cm x 4cm |
|
Packing Dimension |
16 cm x 8 cm x 7cm |
|
Weight |
0.91kg |
Technical Parameter
Input Voltage: 18 - 30 VDC, with a nominal value of 24 VDC.
Input Power: 11 W.
Inrush Current: 20 A at 24 VDC for a maximum duration of 6 ms; 25 A at 30 VDC for a maximum duration of 6 ms.
Hold-up Time: 10 ms.
Protection Features: Equipped with internal short-circuit, overload and reverse polarity protection.
Function Features
Rugged Construction: GE IC200PWR002 is housed in metal and silicon gel is poured inside to keep it safe from outside contact with the components.
Dual Voltage Output: It has output voltages of 5 VDC and 3.3 VDC which fulfills the power requirement of various components that have specific voltage needs.

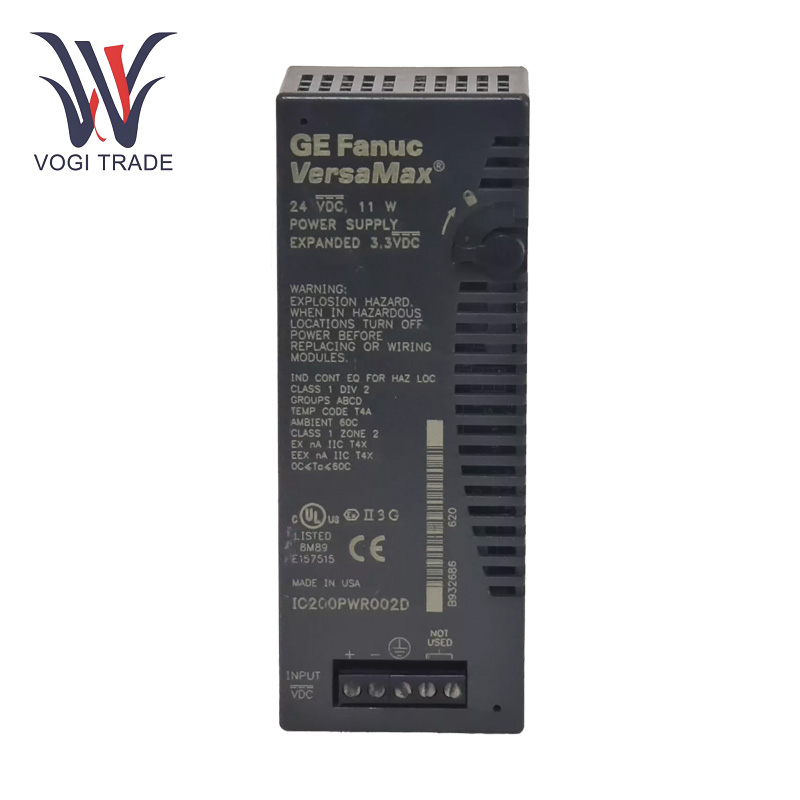

Screw-Terminal: GE IC200PWR002 is equipped with 5 screw-type terminals on the bottom front panel. The left two are +DC and -DC terminals, the third is the ground terminal, and the last two need no connection.
Operation Method
Installation: Install GE IC200PWR002 directly into the designated slot on the backplane, and connect it to the CPU or NIU as per the connection diagram, making sure connections are done properly.
Wiring: Connect input terminals to a 18 - 30 VDC adge with a nominal voltage 24 VDC. Output terminals connected to the devices for which power must be supplied; check the polarities.
Safety Measures: Safety measures like proper earthing of the DC- terminal to the frame ground and earth ground is essential to ensure safe and stable operation.
Application Areas
Industrial Automation: GE IC200PWR002 powers a variety of VersaMax I/O modules, CPUs, and NIUs on industrial production lines to control equipment, such as conveyor belts, robotic arms, and assembly machines, ensuring the stable operation of the production process.
Power Systems: It is used in power plants and substations, providing power to the control systems of power generation equipment, transmission and distribution equipment, monitoring systems, etc., helping to ensure the reliability of the power grid operation.
Automating Buildings: GE IC200PWR002 can be used at intelligent buildings to be able to supply energy towards the VersaMax systems that manage lighting, air conditioning, and accessibility and elevator systems, making the building smarter and more comfortable.
Water Treatment plants: It is used in water treatment plants, used to provide control: operation of water pumps, valves, water quality monitoring equipment of control systems, automatic control of water treatment process, as well as improve the efficiency and quality of treatment.
Chemical Industry: GE IC200PWR002 provides power to the control system of chemical reaction equipment, material transportation equipment, and safety monitoring equipment in chemical production process, which is an important guarantee for the safety and efficiency of production.
