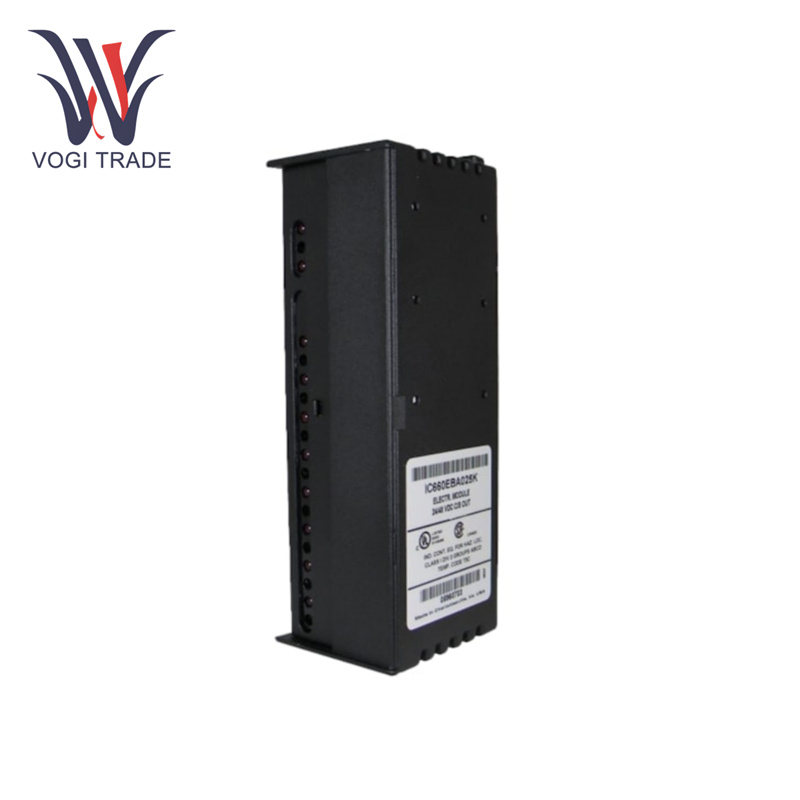

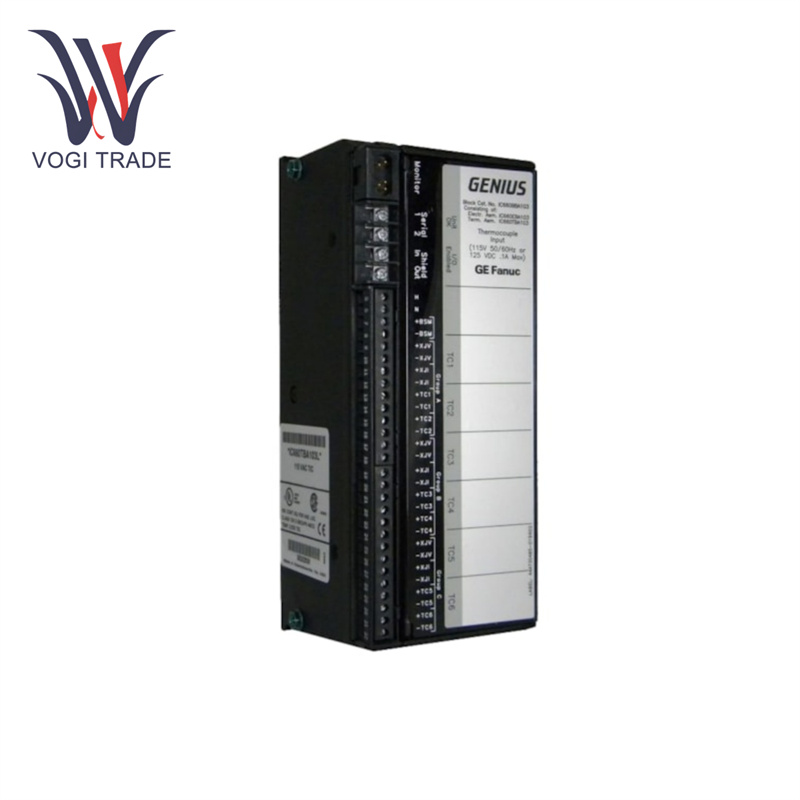

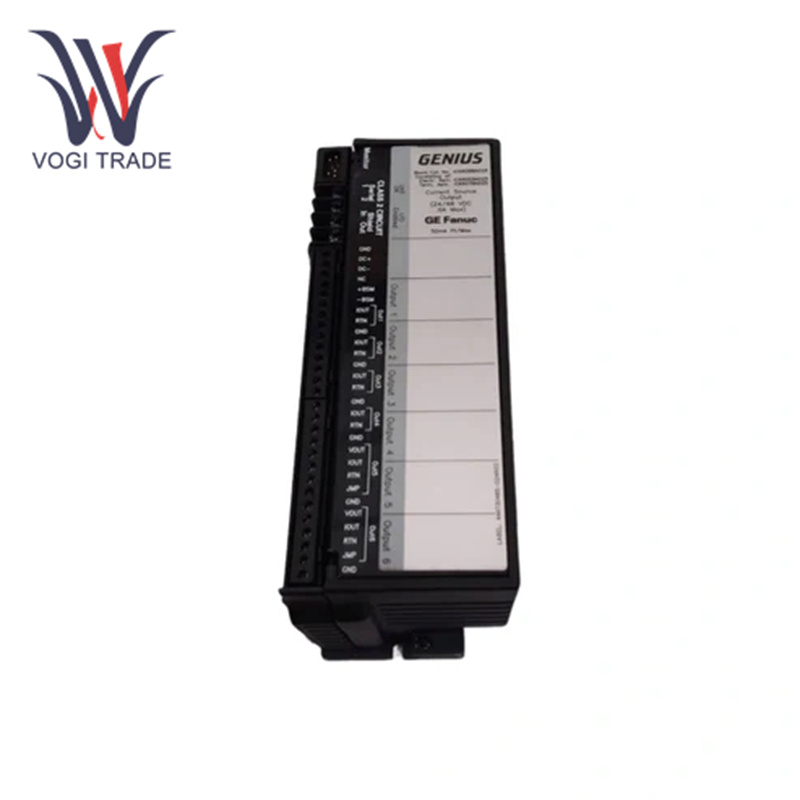

GE IC660BBA025

Operating Parameters

Operating voltage: 5 V DC ± 5%

Input current: 130 mA maximum

Frequency response: DC - 100 kHz

Operating temperature range: -20°C to +70°C

Storage temperature range: -40°C to +85°C

Product features

Data acquisition and processing: GE IC660BBA025 is mainly used to acquire data from various input sources like sensors and convert it into the digital format. An analog front end processes the sensor data, performing functions like filtering, amplification, and analog-to-digital conversion so that data is acquired accurately and reliably.

Communication interface: GE IC660BBA025 is multiple communication interfaces including Ethernet, serial ports (such as RS-232/485). Designed exclusively for connecting to industrial networks, these interfaces facilitate communication between industrial machines and other devices in the network, allowing for data exchange, remote monitoring, and control.

Programmable logic control: GE IC660BBA025 enables programmable logic functions, giving users flexibility in customizing its behavior and functionality based on particular requirements for their application. It enables engineers to program complex control block algorithms, logic and event-triggered operations, increasing system flexibility and adaptability.

Application Scope

Industrial Automation: High-level event logging, such as information about the operation of industrial automation systems, such as manufacturing plants, process industries, conveyor systems, assembly lines, and packing systems. It can be used for machine control, process monitoring, quality control, data logging, etc., in order to improve production efficiency and product quality.

Building Automation : As an alternative for building automation applications like HVAC (heating, ventilation and air conditioning) control, lighting control and access control systems. Its smart integrated platform integrates with all other building management systems and develops smart energy-saving buildings.

Power Generation and Distribution: The is utilized in power generation plants and distribution areas. GE IC660BBA025 could be used for monitoring electrical parameters, controlling generators, assuring reliable power infrastructure operation.

Troubleshooting

Power Supply Problem: If the GE IC660BBA025 module does not work, first use a multimeter to measure the power supply voltage and ensure that the power supply voltage is in the nominal range. Also, see if the power cord and connector is loose or damaged. If you are using a power supply unit then check if it is functioning properly.

Communication Problems: Check the communication cable and connector connections and whether they are intact. Note that if DEBUG = 1, all transmitted data is redirected to the serial through print() and all the data received from the serial is redirected to the standard output. If you have access to a second cable, known good cable, or second device, test those as well to identify the problem. In addition, check if there is any network configuration issue if it is Ethernet communication.

Issue With Data Acquisition: In case data acquisition fails, ensure that the input sensors & its wiring are in place. Make sure that the sensors are calibrated and checking fine. Test for noise or interference in the wiring of the sensor which could corrupt the quality of the data. Moreover, verify the configuration of the module with respect to data acquisition channels and settings to ensure that they align with the specifications of the sensors.
