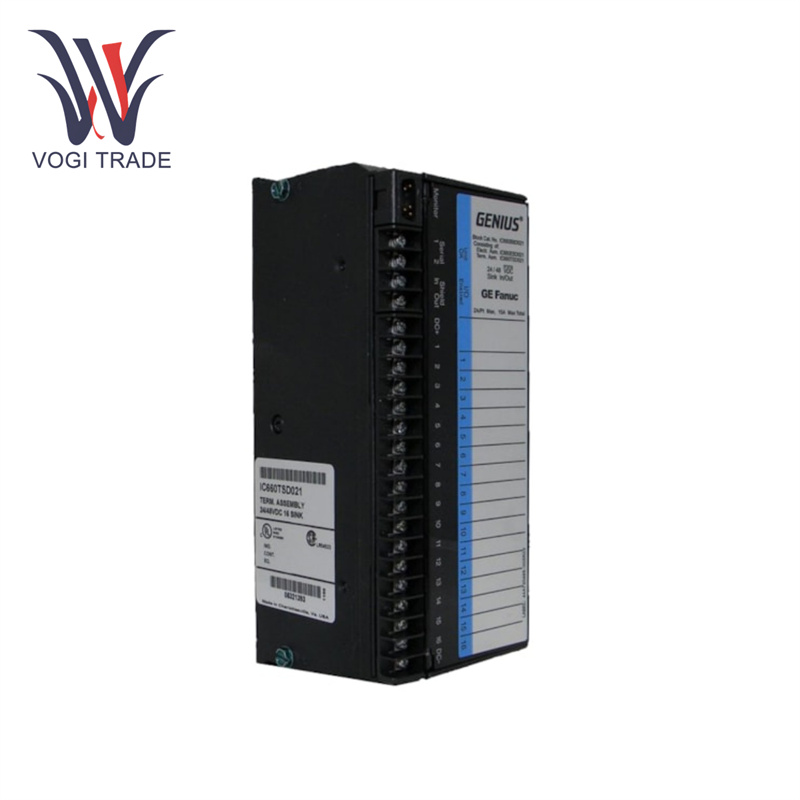

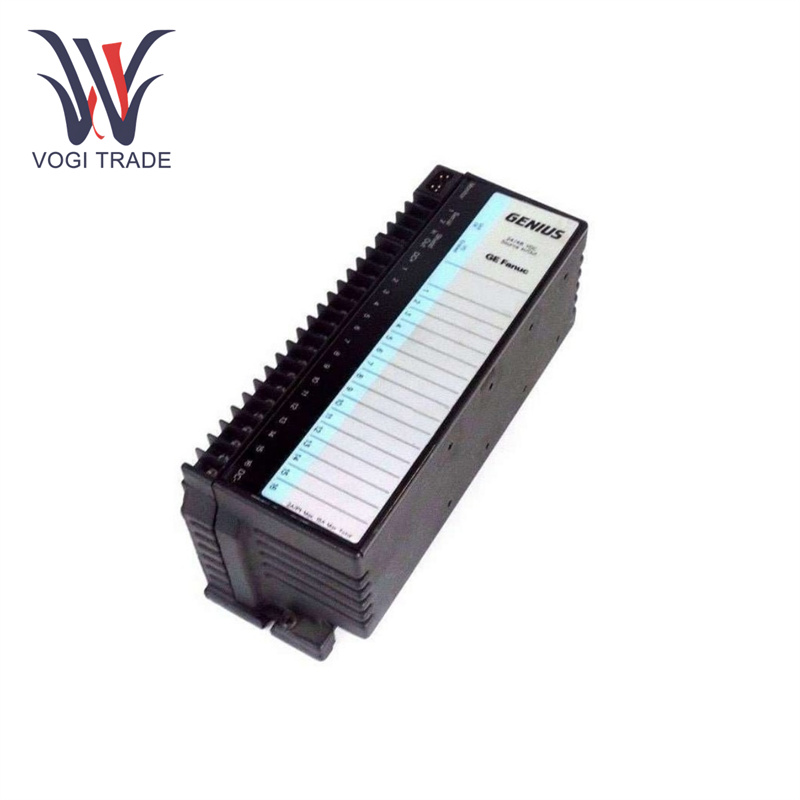

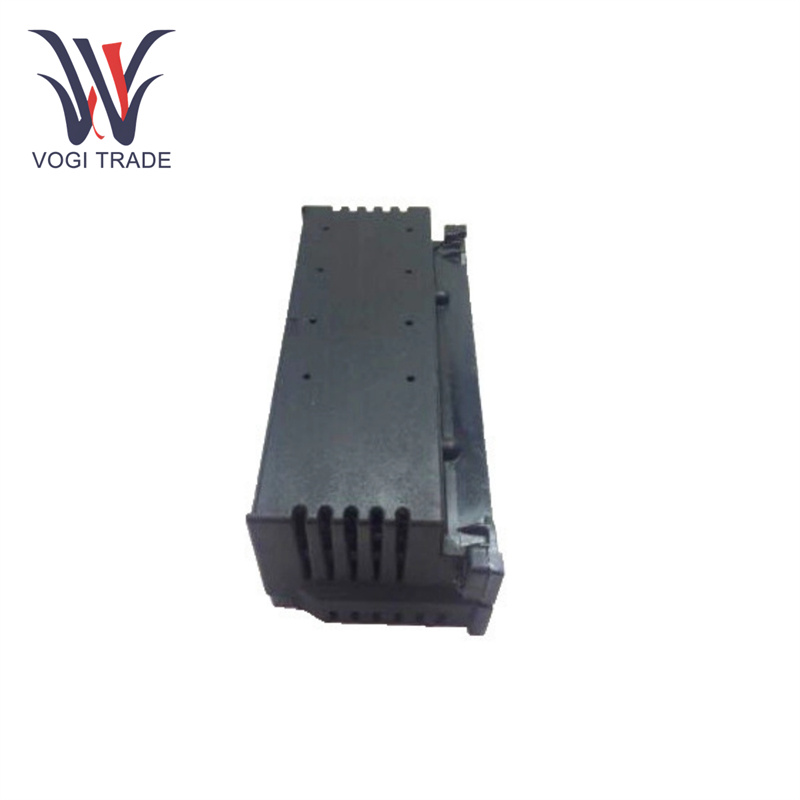

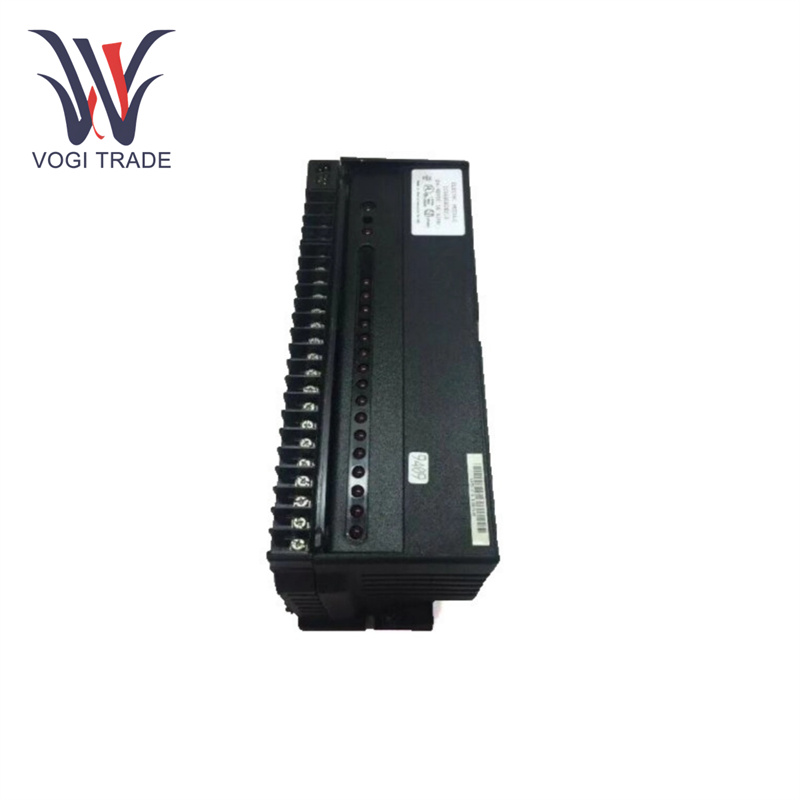

GE IC660BBD021

Operating Parameters

Supply Voltage: 24 to 48 VDC

Number of I/O Circuits: 16

Operating Voltage Range: 18 to 56 VDC

Load Current per Circuit: Up to 2 Amps

Input Response Time: 1.7 ms (with filter)

Output Response Time: 1.0 ms

Input Filter Time: Configurable from 5 to 100 ms

Isolation between Modules: 1500V for one minute

Operating Temperature Range: 0 to 60 degrees Celsius

Product Features

Signal Processing : GE IC660BBD021Signal ProcessingIt can do operations like noise reduction, signal amplification, and waveform shaping. This is relevant in industrial environments where signals can be corrupted and we need to know the data we make decisions with is actually correct.

Data Conversion: It can translate to and from the analog signal correctly. This allows seamless integration with digital control systems, and the possibility of using analog sensors, which enhances the scope of use.

Communication Protocols: The GE IC660BBD021 supports various communication protocols such as RS-232, RS-485, and Ethernet. These interfaces enable it to talk to other industrial equipment, exchange information in real time, and be just one part of a much broader tree of automation control.

Application Scope

Manufacturing: For controlling automated machines in factories, monitoring the production line status, and managing quality checking processes. It can, for example, manage the speed of conveyor belts and detect failures in a manufacturing machine.

Energy Management: It enables tracking of energy generation, transmission, and consumption at power plants and renewable energy production units. It can facilitate control of solar energy systems' inverters and manage load on the grid.

Smart Buildings: GE IC660BBD021 Building automation systems control lighting and HVAC (heating, ventilation, and air conditioning) systems. It enables buildings to run more efficiently and modulate their settings based on who’s in them and under what conditions.

Troubleshooting

Input voltage not available: If the GE IC660BBD021 module is not powered on, you must use a multimeter to measure the input voltage first. Check if it is in the 20 - 50 VDC range, and that the power supply is stable. Verify that the power connector is tight, too.

Signal integrity issues : if the signal looks garbled or wrong, check the input/output pin configuraction. Verify that you have configured the signal conditioning settings correctly and also noise free from outside. A spectrum analyzer also is valuable for diagnosing any issues related to frequency.

There are common reasons for module: Communication issues, In case communication fails check the communication protocol parameters in the module and in connected device. Check for a defective or improperly connected cable. If relevant, try a different cable or use a different port on the laptop to identify the problem.
