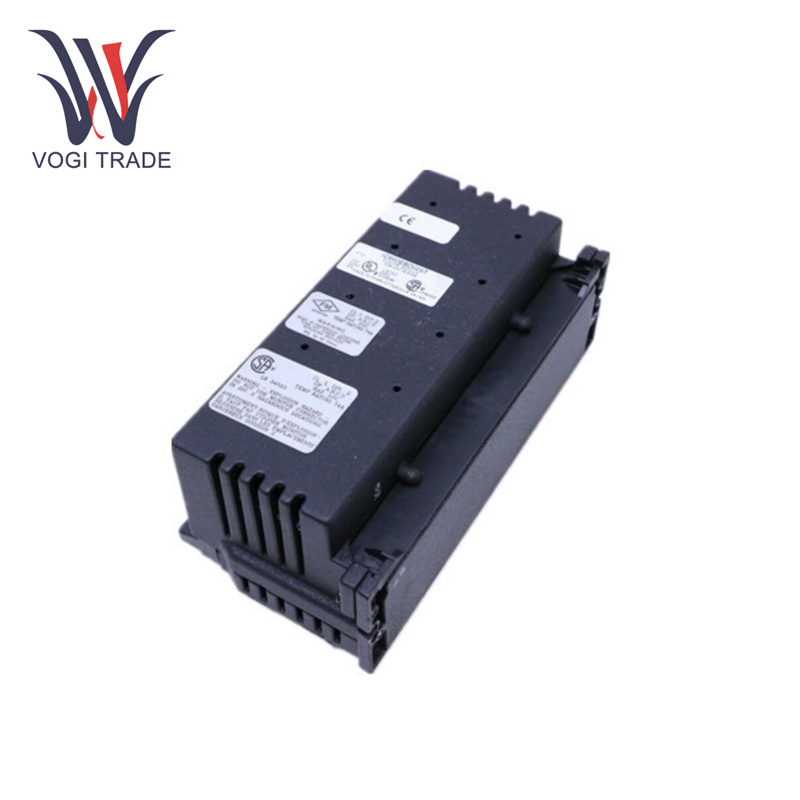

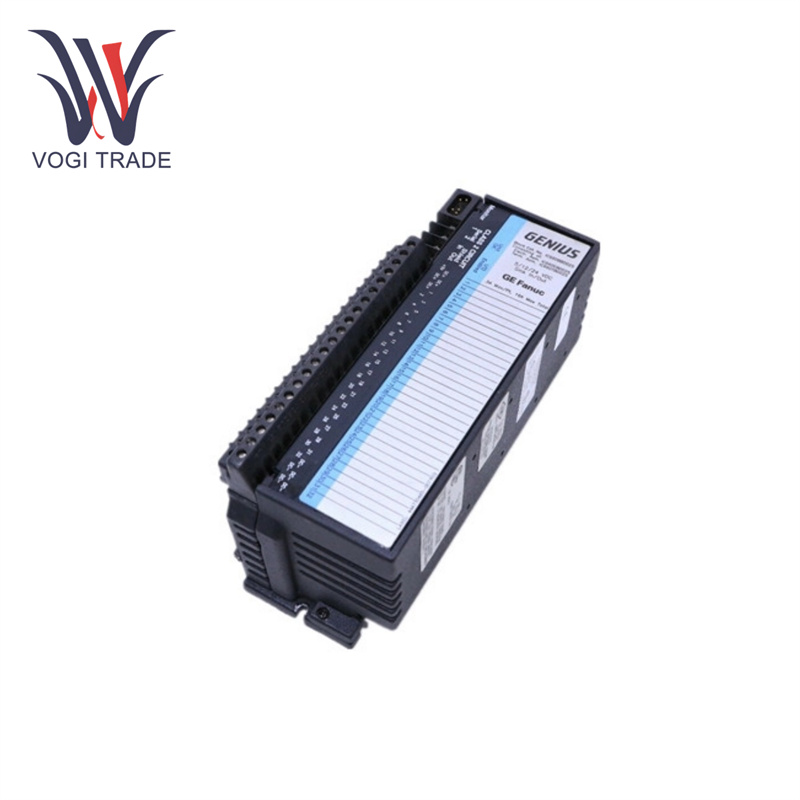

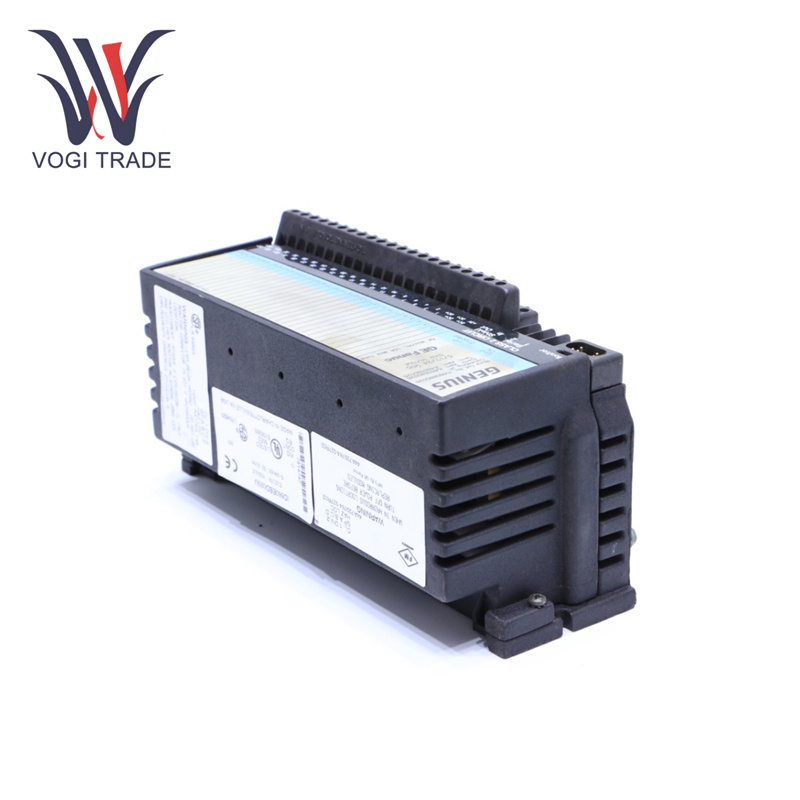

Brand: GE Description: Sink I/O Block Module Condition: Brand New Certificate：COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 22 Payment Term: T/T Shipping Port: ShenZhen The GE IC660BBD025 is a receiver I/O module with 32 I/O points, multiple operating voltages, inter-block isolation, multiple ports, and strong compatibility.
|
Manufacture |
GE |
|
Model Number |
IC660BBD025 |
|
Ordering Number |
IC660BBD025 |
|
Catalog |
- |
|
Country Of Origin |
USA |
|
HS CODE |
8537101190 |
|
Dimension |
5cm*10cm*15cm |
|
Packing Dimension |
7cm*12cm*17cm |
|
Weight |
2kg |
Technical parameters
Rated voltage: 5V DC, 12V DC and 24V DC
Operating voltage range: 4.9 to 5.3V DC or 10 to 30V DC
Input range: 18-30V DC. Load current: 0.5A load current, maximum instantaneous surge current can reach 4A/10ms
Isolation voltage: Isolation voltage is rated at 850V.
I/O points: 32 I/O points
Power consumption: 11W when 8 I/O points are configured as input, 18W when 32 I/O points are configured as input.
Operating temperature: 0℃~60℃.
Humidity during operation: 0%-95%
Communication protocol: Genius protocol
Ports: port monitoring, serial port, output port
Features
Rich I/O configuration: GE IC660BBD025 has 32 configurable I/O circuits, which can freely mix input and output and flexibly adapt to different industrial control needs.
High communication capability: GE IC660BBD025 provides Genius I/O bus terminals and handheld monitor ports, which can be connected and communicated with other devices in the system through simple operations. It adopts the Genius protocol communication system to provide stable and efficient data transmission, which can be seamlessly integrated with industrial automation systems.
Stable short-circuit protection mechanism: Each channel has internal short-circuit protection when used as an output, which can protect the drive from short-circuit faults caused by short-term surges and wiring errors. The module-to-module isolation voltage is rated at 850 volts, with good isolation means to maintain the safety and stability of the system.
Outstanding advantages
High reliability: GE IC660BBD025 has a resettable self-protection circuit with advanced diagnostic functions, which can quickly detect and handle various faults, reducing system downtime and maintenance costs. High-quality components and strict manufacturing processes enable it to operate stably and long-term in harsh industrial environments.
Flexible and easy to use: Software configurable design, GE IC660BBD025 can easily set and modify module parameters and functions through programming software according to specific application requirements without complex hardware changes. Easy installation and maintenance, small size and light weight, can be easily integrated into existing industrial automation systems, saving installation space and time.
Silicon-independent: With the support of GE Fanuc Genius I/O series and 90-30 series devices, it has good rationality and scalability, which is convenient for building large-scale industrial control systems.
Application range
Industrial automation production line: widely used in various industrial automation production lines, controlling the start and stop of equipment, operation sequence, and realizing automatic operation and monitoring of production lines
Process control system: In process control systems in chemical, pharmaceutical, water treatment and other industries, GE IC660BBD025 can control the on and off status of various valves, pumps, and switches, and transmit the collected data to the host computer for processing and analysis, which can effectively help maintain the stability and safety of the production process and improve productivity and product quality.
Building automation: The GE IC660BBD025 module can be used to complete intelligent control and energy-saving management of various equipment, realize intelligent control and energy-saving management of buildings, and create a comfortable and energy-saving building environment.
