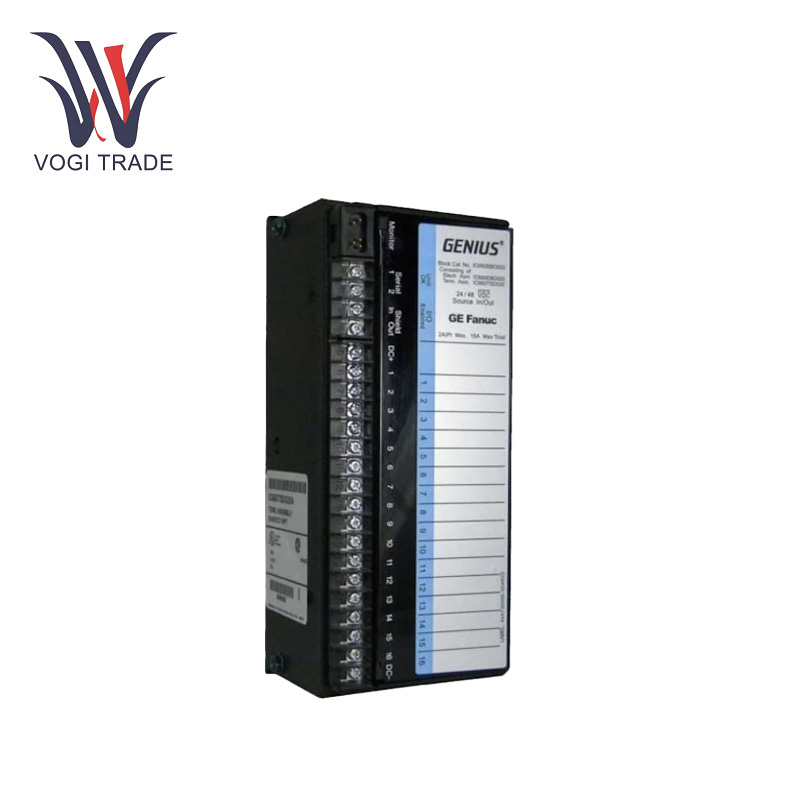

GE IC660TBD024

Operating Parameters

Standards voltage: 5V, 12V, or 24V DC.

Output Max: Each circuit up to 0.5A.

Surge Current: Maximum: 16 Amps Block Output for 4 to 10 ms.

Operating Temp: 0—60 degrees Celsius.

Product Features

Space-saving Form Factor: GE IC660TBD024 Its compact and rugged design allows it to be integrated into tight control cabinets. At the same time, its solid construction with high-strength materials makes it effective in resisting shocks, vibrations, and corrosive products common in industrial environments.

Precision Signal Processing: GE IC660TBD024 advanced circuitry for handling analog and digital signals. It can precisely amplify weak signals, reject noise and perform high-resolution conversions to ensure the integrity of processing data.

Usability:  GE IC660TBD024 can flexible connectivity Since it can communicate with so many others, it can easily fit into the complex tangle that is an industrial network.

Installation

The mounting method: also be DIN rail mounted as the package includes clips and brackets for mounting. Ensure the DIN rail has been securely Mount/ Level against the wall before and during Mounting so there is no Misalignment or movement of GE IC660TBD024.

Wiring Instructionsf: ollow the wiring diagram in product's manual Be sure to check the polarity of the power supply when connecting it to prevent burning out. Use cable such as shielded cables to reduce electromagnetic interference for signal wires. Make sure all wire connections need to be securely tightened.

Initial setup/configuration: Configuration of the device is essential before the device is used for the first time. This includes setting things like communication speeds, input and output mappings, calibration values, etc. To make this easier, the manufacturer generally offers some dedicated software or user-friendly interface.

Application Ranges

Manufacturing: It is used extensively in manufacturing for controlling robotic arms, conveyor belts, and automated assembly lines. With its capability to connect to and control sensors and actuators, it can accurately control production steps, track quality, and fine-tune processes instantly.

Chemical Plants: In the chemical industry, GE IC660TBD024 helps in controlling temperature, pressure, and flow rates of different substances. It can receive data from multiple sensors, process it, and then send control signals to valves and pumps to maintain operating conditions at their best.

Energy Management Systems: it is used in the power distribution facilities and renewables to monitoring the energy consumption, generation, and grid connection. It can serve with on-time information for power optimization and effective energy transfer.

Troubleshooting

Power Failure: If the device does not power on, to begin with, check the connection of the power cable. Ensure that they are plugged in correctly and are not out of order.Measure the input terminals with a voltmeter to make sure that it is within the desired range. If the power indicator does not light up and the voltage is correct, check for a burned fuse (if any) and take appropriate action (replace).

Integration and Incompatibility Issues: Verify that data integration points are functioning correctly or that the integration design is compatible with the devices involved. Check the communication protocol settings as well on both the GE IC660TBD024 and the Connected Device. Incorrectly configure an output, however, and you’ll end up with gibberish data, or unexplained transmission failures. Shutting down the virtual machine without losing any data or the ability to access the saving process.

Incorrect sensor signal readings: If the device is reading incorrect sensor signals, check the sensor connections. Make sure it's nice and tight, and there is no corrosion. Then, the sensor calibration and fine-tuning. Improper calibration can lead to misleading readings. Please refer to the recalibration procedures recommended by the sensor manufacturer. The equipment itself may have internal calibration settings as well.

Overheating: If the device overheats during operation, start by checking the environmental temperature. So make sure it is in the acceptable range of operation. Check also for anything blocking the air cooling vents. If the problem remains unchanged after all these checks, it may indicate a failure within the device.
