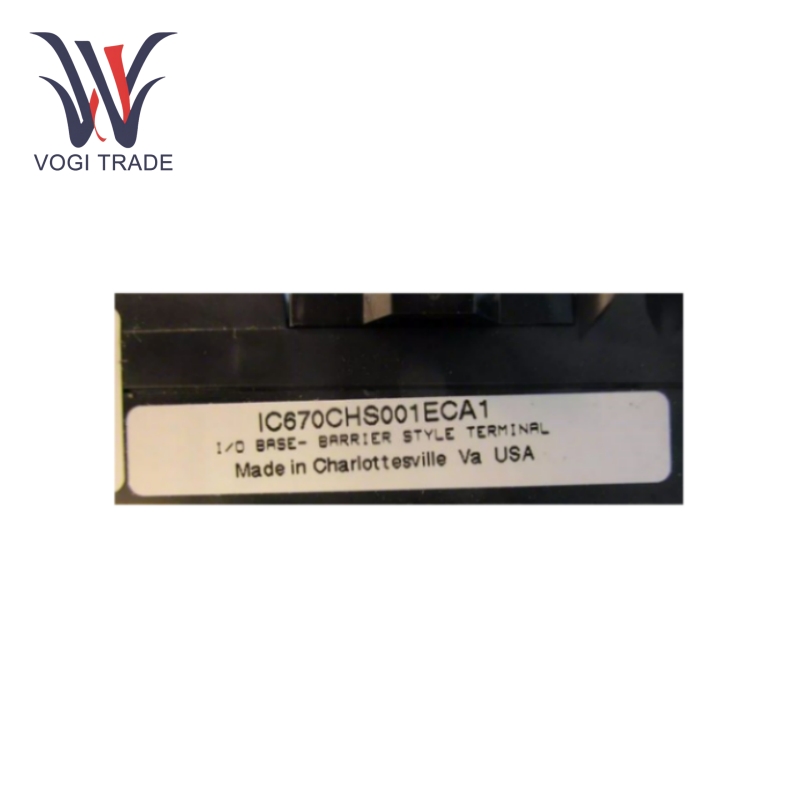

GE IC670CHS001

Specification

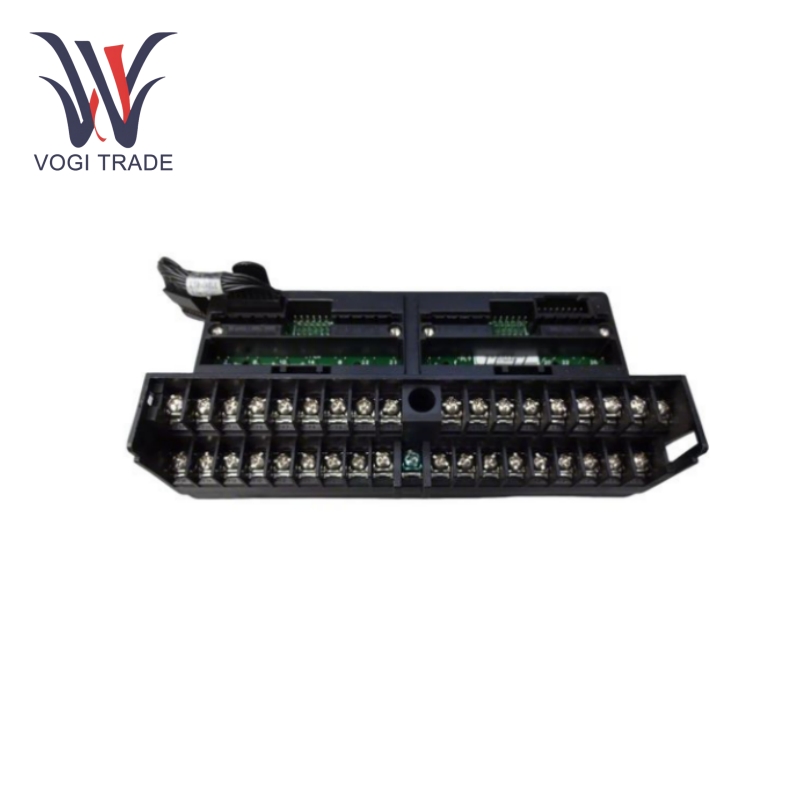

Terminal quantity and specifications: There are 37 terminals in total, of which 2 terminals (marked as terminals A and B) are used for power connection, and the remaining 35 are used for single terminal connection.

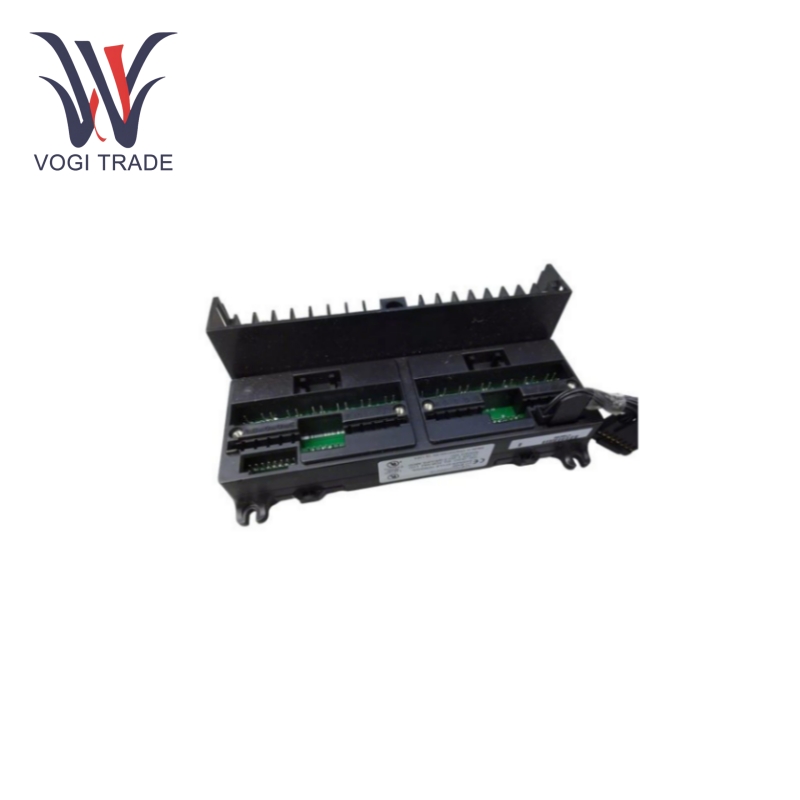

Module quantity & type: GE IC670CHS001 is a barrier I/O carrier able to accommodate two discrete I/O and analog I/O field control modules.

Installation technique: The terminal module is designed for horizontal installation and can be mounted on a DIN rail or directly mounted onto the housing's sub-panel.

Communication function: The GE IC670CHS001 module provides backplane communication. The connector supported by the module again connects to the other terminal wiring module next to it. While using this module, particularly in absorbing BIUs using version 2.1 or higher firmware will allow for hot insertion or unplugging.

Compatibility: The GE IC670CHS001 is capable of being connected to one or more terminal bases via compatible pre-assembled cables IC670CBL001, and auxillary wiring terminals can also be connected to provide added grounding, signal return, and signal common connections.

Features

Mechanical stability: The GE IC670CHS001 is locked into the substation base with the aid of mechanical screws that help avoid any inadvertent disconnection due to mechanical stresses. In addition to this, there is a protective enclosure on the terminal strip of the I/O base. This barrier protects active parts of the equipment from being short-circuited, hence enhancing the mechanical stability and safety of the system.

Hot swap feature: GE IC670CHS001 allows hot swapping in applied areas under non-hazardous applications when a particular bus interface unit is installed. This means that while the system is working, modules can be plugged or unplugged without powering off the system altogether; this will allow prompt system maintenance and upgrades when needed, which reduces production downtime associated with equipment maintenance or module replacement and in turn will greatly increase production output.

Accommodate multiple modules: GE IC670CHS001 is a fence-type I/O carrier which accommodates two field control modules and supports discrete I/O and analog I/O modules. The capability of GE IC670CHS001, rapid I/O operations, in a limited amount of space improves integration and flexibility of a system, allows users to configure different types of I/O modules upon their needs for different complex control tasks.

Application

Automobile production: On the automobile production line, GEIC670CHS001 can be used to interconnect robot control signals and welding equipment control signals with various sensor signals. For example, while welding the car bodies, it connects the motion control signal of the welding manipulation with actuator equipment signals to control the welding quality and production efficiency.

Mechanics fabrication: In CNC machine tooling and also every other type of mechanics machining, GEIC670CHS001 can interconnect tool position sensors, spindle speed sensors, and vary varied control input so that a higher level of control is assured for optimum processing and product quality.

Pharmaceutical Industry: In pharmaceuticals, the control for the environment of production and process parameters is nearly on a par where control systems like GEIC670CHS001 join hands with temperature and humidity sensors, pressure sensors, etc., and various control signals of pharmaceutical equipment in clean rooms.

Intelligent control: In the HVAC system of smart buildings, GE IC670CHS001 can be used to connect the temperature sensor, humidity sensor, air speed sensor, and various control signals of the centrifuge to allow the air-conditioning to do intelligent control, whereby it adjusts the operating state of the air-conditioning unit according to changes in indoor and outdoor environmental conditions, resulting in improved efficiency energy adjectives and indoor thermal comfort.
