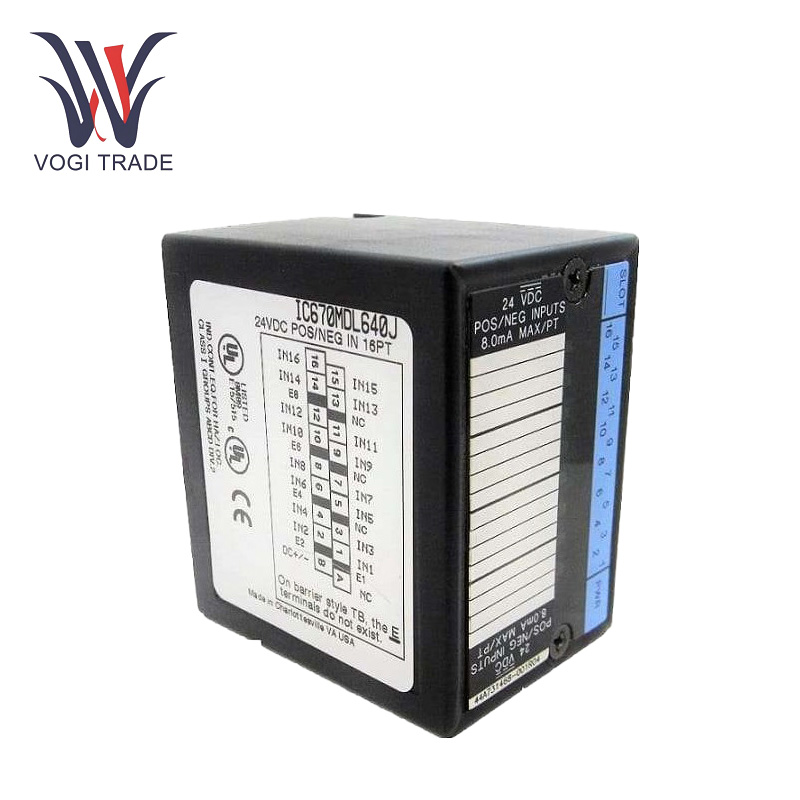

Brand: GE Description: Input module Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 8 Payment Term: T/T Shipping Port: ShenZhen GE IC670MDL640 supports multiple logics for easy adaptation to diverse industrial settings, has precise input handling, and a quick response time.
Manufacture |
GE |
Model Number |
IC670MDL640 |
Ordering Number |
IC670MDL640 |
Catalog |
- |
Country Of Origin |
USA |
HS CODE |
8479909090 |
Dimension |
12cm*12cm*15cm |
Packing Dimension |
14cm*14cm*17cm |
Weight |
0.8kg |
Operating Parameters
Field Adjustable Output Voltage Range: 0 - 30 VDC.
Nominal Operating Voltage: 24 VDC.
Number of Input Channels: 16.
Number Of Channels: 10.
Isolation Voltage: 250 VAC (permanent) / 1500 VAC for 1 min.
Impedance: 3 kΩ (minimum).
Typical Current Drawn from Power Supply: 75 mA.
Maximum Current Drawn from Power Supply: 83 mA.
State 0 Current: 0 - 1mA State 1 Current: 3.0 - 8mA.
Response Time (Typical): 6 ms.
Product Features
Multiple Logic Support: Positive and negative logic wiring are both supported. It allows him to easily fit into different industrial environments. For example, in several automatic industrial lines where some electrical systems were designed on positive logic and some on negative logic, this module can be easily combined without complicated signal conversion processes.
Precise Input Handling: What does the module do: GE IC670MDL640 can accurately measure input signals with a range of 0 - 30 VDC with a nominal voltage level of 24 VDC The user input current for each input channel is 7.5 mA 24 VDC. This precise management of input ensures that choosers to omit any error sources by taking advantage of available sensors and outside equipment, which permit accurate detection and transfer of input signals to the control system.
Quick Response: The input response time of on state and off state both is 6ms, typical (max) (along with 10ms. Such quick response is vital in real - time control situations. For example, it may respond quickly to sensor status changes in high - speed manufacturing processes, enabling the control system to make timely decisions and adjustments.
Installation
DIN Rail Mounting: GE IC670MDL640 was simply to be mounted on a regular DIN rail. The first step is to position the mounting clips of the module so that it is aligned with the grooves of the DIN rail. Then, press firmly on the module until it clicks into place. This method is common for industrial control panels with limited space which also makes it easy to exchange and service the module.
Panel Mounting: There is also the possibility for panel - mounting for custom - designed control panels. Screw holes are pre - drilled on the control panel based on the module's mounting hole pattern. As before, the module is attached to the panel by screws or bolts. It helps create a more resilient installation for situations where vibration and shock resistance is critical.
Troubleshooting
No Input Signal Detection: Verify Wiring: Inspect the wiring connections between external devices and the module. Make sure the wires are not loose, damaged or corroded. Reconnect the wires securely if there are any sign of problems.
Abnormal Input Signal Values: Electrical Interference can change input signal values. Check the wiring to make certain that it is away from: that high - voltage power lines and other sources of electromagnetic interference. Use shielded cables to minimize interference, if needed.
Module Overheating: You must check if your module is getting enough ventilation. If a closed control panel is installed with the module, check whether there are enough ventilation holes. A blocked ventilation port could lead to heat build-up and overheating.
Application range
Industrial Automation: In industrial automation systems, GE IC670MDL640 is used for connecting different types of sensors , to the control system. These sensors track the position, movement and presence of objects in the course of production. Readings of sensors are transmitted very well to the Programmable logic controller , which controls the automatic operation of motors, actuators, and other production line equipment.
Power System Monitoring: GE IC670MDL640 is used to monitor the status of electrical equipment in power plants and substations. It can, for instance, be hooked up to switches, circuit breakers, and relays in order to sense their on - off states. By accurately emitting these status signals for uploading to the monitoring system, operators can remotely monitor the power system's operation and respond in a timely manner to any abnormal situations, ensuring the stable supply of electricity.
Building Management: And in smart buildings, GE IC670MDL640 connects all types of sensors, including door sensors, window sensors, and temperature sensors, to your building management system. It helps to keep an eye on building security and environmental status. The signals generated from these sensors can be used by the building management system to control the operation of lighting, air-conditioning and security systems in order to provide a safe and comfortable environment for the building occupants.
