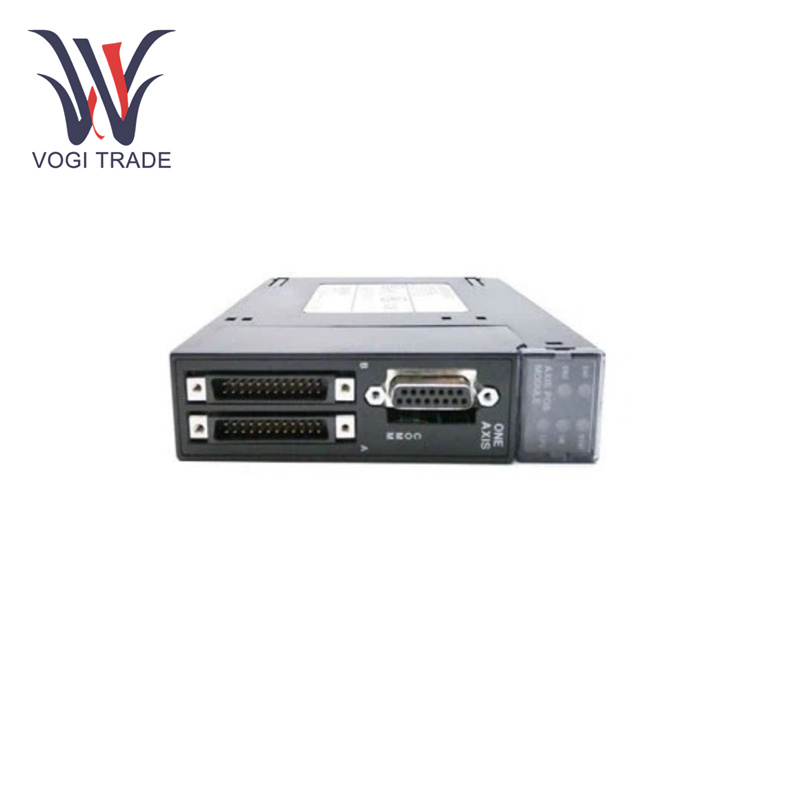

GE IC693APU301

Operating Parameters

Axis Control: Single-axis positioning

Standard Mode: Combines motion control with PLC logic solving capabilities

Slave Mode: Provides electronic gearing for master/slave applications

Inputs: 12 discrete inputs

Outputs: 4 discrete outputs

Voltage: 5 VDC, powered from PLC backplane

Current Consumption: 1.1 Amps

Product Features

operating modes:The GE IC693APU301 is designed for applications where accurate positioning is critical and control of a single axis of motion is performed. There are two primary operating modes that it supports.

Standard Mode:combines motion control with PLC logic to sync with the rest of the automation system.

Slave Mode: Activates electronic gearing (i.e. a master/slave configuration where the module's motion is synchronized with the master axis)This allows for the GE IC693APU301 to be suitable to a range of industrial applications since the module inputs and outputs can be configured for use with specialized sensors or actuators that enhance the process being monitored or controlled.

Data Storage and Retrieval: GE IC693APU301 is Internal memory is designed for data storage; for instance, process variables, configuration settings, and historical data can be stored. Efforescentes have incentives in retrieving this data to optimise processes, troubleshoot issues and quality control.

Communication Interfaces: Ethernet/IP, Profibus, Modbus These interfaces make it easy to communicate with other industrial devices, such as sensors, actuators, or human-machine interfaces (HMIs). This interoperability is crucial for building integrated industrial automation systems.

Application Range

Utilization in Manufacturing Process: GE IC693APU301 is used in assembly lines, machining operations and packaging processes in factories. It could control how fast robotic arms move, the speed of conveyor belts used to transport products, and the function of multiple machines to increase the efficiency of the production.

Food and Beverage Industry: These are suitable for food processing plants to control the temperature, pressure, and flow rate of production equipment. Additionally, it ensures that the raw materials and finished products meet food safety compliance by monitoring their quality.

Chemical and Pharmaceutical: To control the complex reactions involved in their processes, these industries and pharmaceuticals rely on the GE IC693APU301 to read chemical reactions, control ordering materials, and ensure that preparations containing the desired products. This precise control of the module is crucial in retaining the effectiveness of the chemical and pharmaceutical processes.

Troubleshooting

Check power supply: Ensure the module is being powered with the right voltage (5 VDC) by the PLC backplane and not exceeding 1.1 amps when drawing current. If the voltage is not correct, and then verify the power supply unit and its connections.

Programming errors: If the module is not working as expected, validate the logic implemented in the program. Identify the source of the issue by analysing the code. You will use programming software from the manufacturer to debug the software and make corrections.

Check status indicators: Use the LEDs provided by the module to check whether it is suffering from some fault condition.

Confirm configuration settings: Verify that the module is correctly configured for the target operating mode (whether standard or follower), and that all parameters are set appropriately for the intended application.
