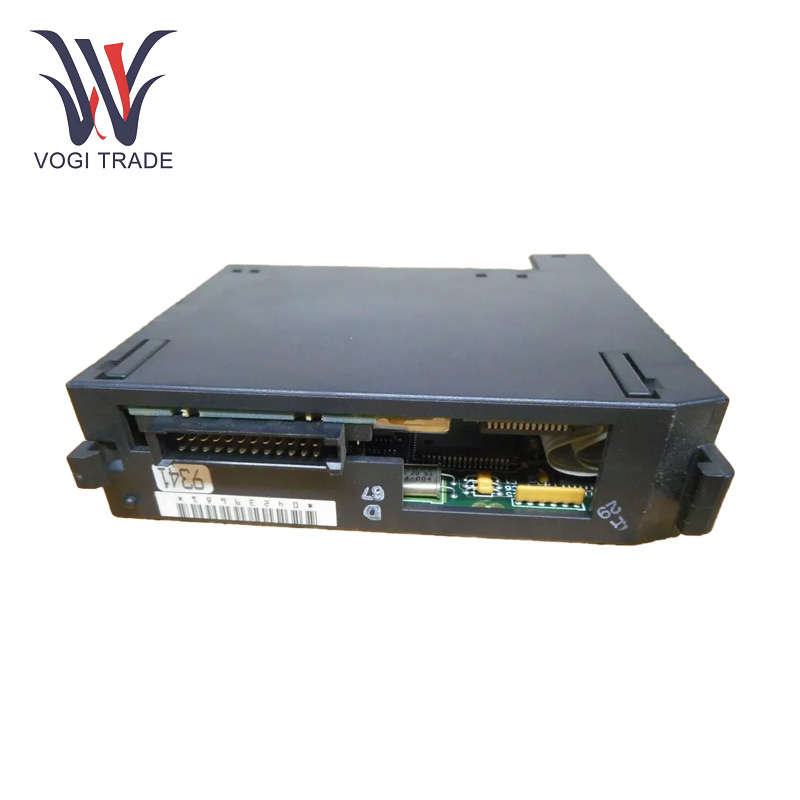

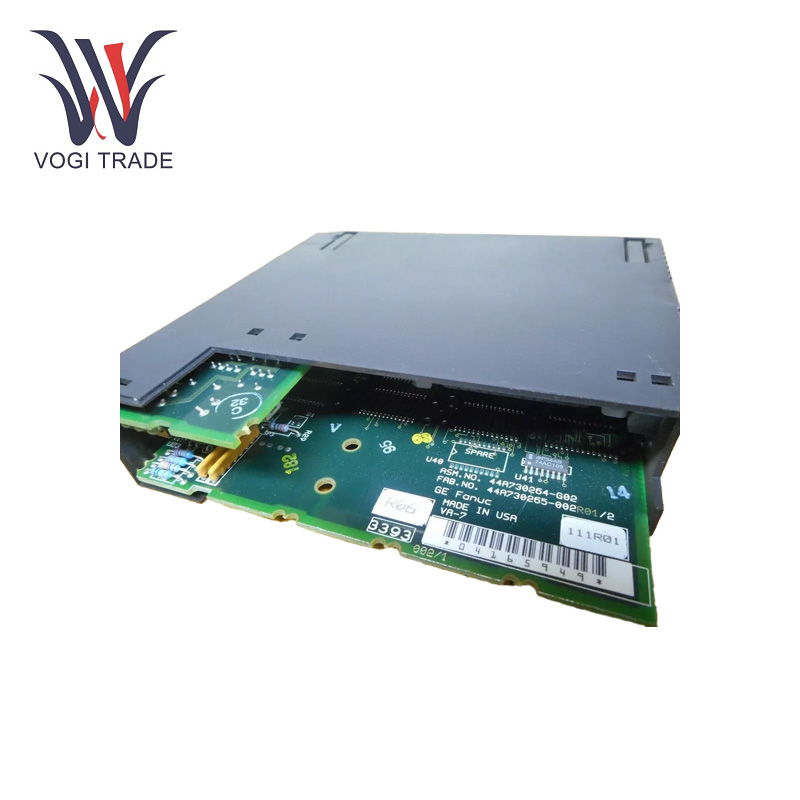

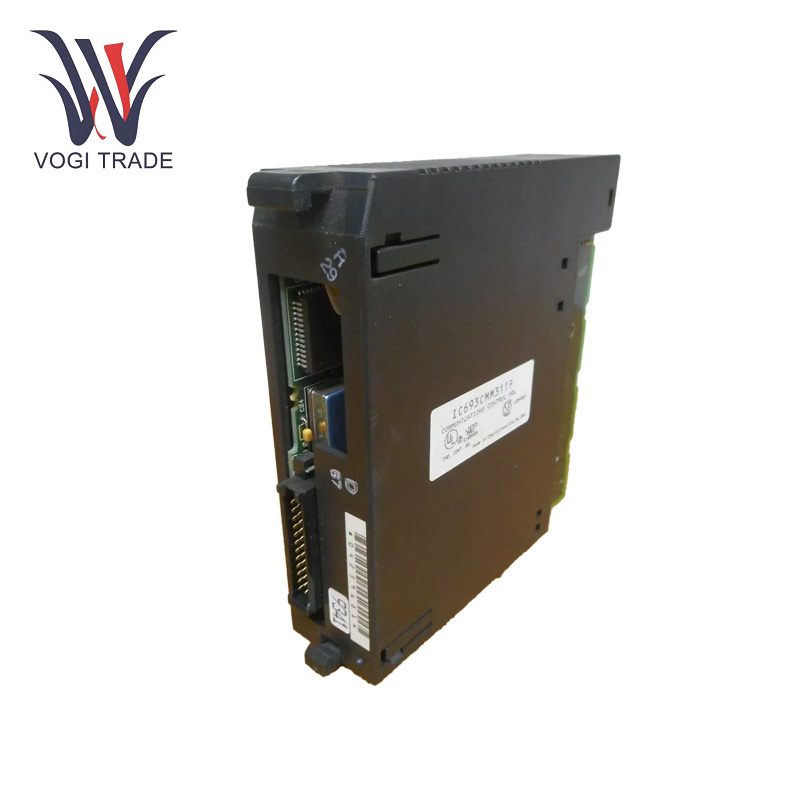

Brand: GE Description: communication coprocessor module Condition: Brand New Certificate：COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 5 Payment Term: T/T Shipping Port: ShenZhen Whether for connecting to enterprise-level networks, third-party devices, or enabling remote access, GE IC693CMM311 is a reliable solution that boosts system efficiency and operational flexibility.
|
Manufacture |
GE |
|
Model Number |
IC693CMM311 |
|
Ordering Number |
IC693CMM311 |
|
Catalog |
90-30 |
|
Country Of Origin |
USA |
|
HS CODE |
85389091 |
|
Dimension |
23cm x 16cm x 4.5cm |
|
Packing Dimension |
25cm x 18cm x 7cm |
|
Weight |
0.8kg |
Technical Parameter
Power Supply: 5V DC.
Internal Power: 400 mA at 5V DC.
Supported Protocols: GE Fanuc CCM, RTU (Modbus), SNP.
Port 1: Supports RS-232.
Port 2: Supports either RS-232 or RS-485.
Functional Characteristics
Flexible port configurations: The ports of GE IC693CMM311 can be configured to different protocol combinations i.e. CCM protocol on both ports, CCM protocol on port 1 and RTU protocol on port 2, and so on.
Push-to-Restart Button: Users can push to restart the communication; no need to restart the whole module, saving time and increasing operational efficiency of the whole system.
High Performance: GE IC693CMM311 is also a high-performance coprocessor that offloads the burden on the main CPU for communication tasks and improves the overall performance of the whole machine, so that the main CPU can focus on critical processing functions.
Fault Diagnosis
LED Indicator Diagnosis: There are status LED indicator on GE IC693CMM311 such as “Module OK”, “Port 1”, “Port 2” etc. By observing the state of these indicators the users can quickly tell whether the module and its ports are functioning normally. If the "Module OK" indicator is off, it means that the module power supply and internal circuit may be faulty. If it is "Port 1" or "Port 2" flashes in an abnormal state, it means that the corresponding port will have a communication problem.
Substitution Method: If possible, swap the suspected failing GE IC693CMM311 with a known working module. If the system operates normally and correctly after replacement, then this means that the original module is faulty and that it should be repaired or replaced.
Software Diagnosis: Use the configuration software provided by GE to check the communication state and data flow of the module at the same time. Errors The software can output verbose error messages and diagnostics, helping users quickly zero in on the source of the problem. Similar to this, in case of a communication error, the software can show the error code and some potential solutions.
Application Fields
Industrial Automation: It is commonly applied in diverse industrial automation production lines, for example, automotive manufacturing, food processing, and packaging machinery, to connect and control a large number of I/O devices, realize the control and monitoring of production equipment, and enhance both production efficiency and product quality.
Process Control: GE IC693CMM311 can also be used in process control industries like the chemical, petrochemical and pharmaceutical industries to connect sensors, actuators and other equipment, transmitting analog and digital signals, and helping to achieve the precise control of process parameters such as temperature, pressure and flow.
Building Automation: In building automation systems, it can be applied to connect and control various devices such as air conditioners, elevators, and lighting systems, achieving centralized management and intelligent control of buildings, which can improve the comfort and energy efficiency of buildings.
Power System: GE IC693CMM311 can be used to connect and monitor the various power equipment and sensors in the process of power generation, transmission and distribution, such as generators, transformers, circuit breakers and other equipment, and transmit the collected data to the control center for real-time power system monitoring and control.
