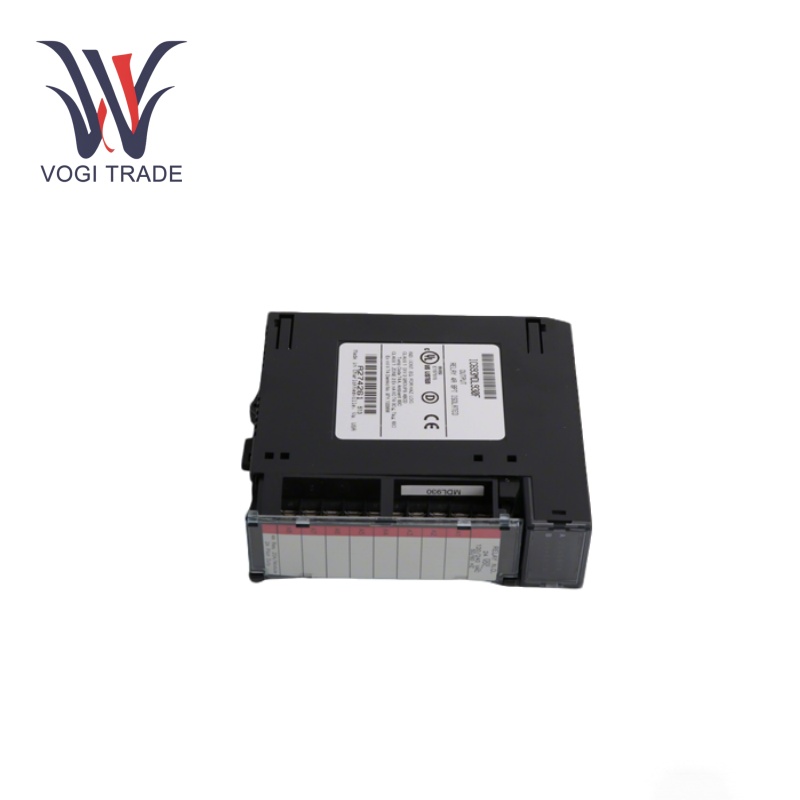

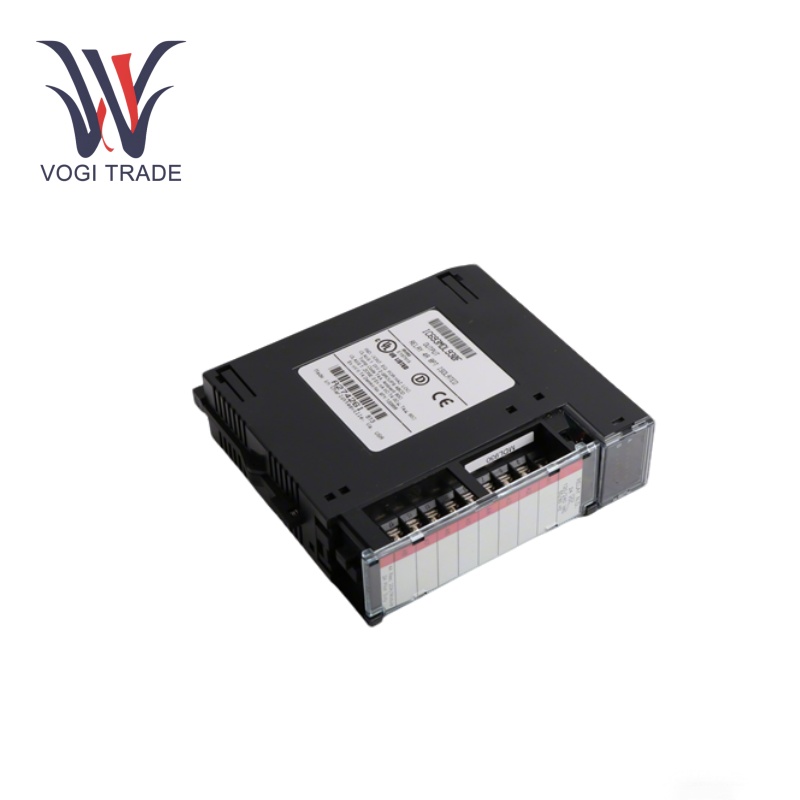

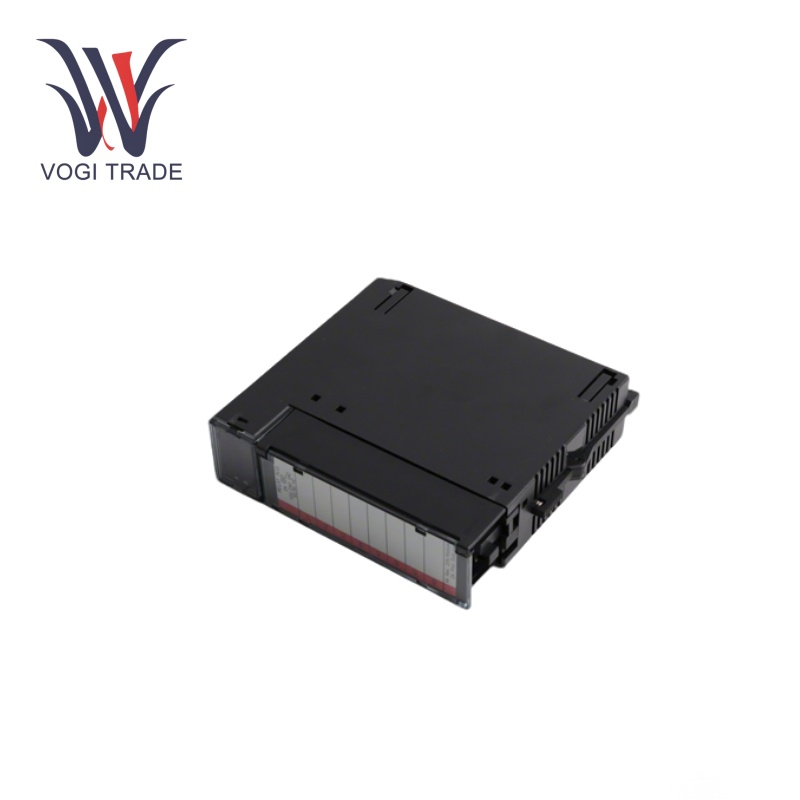

GE IC693MDL930

Technical Parameter

Rated Voltage: 24V DC.

Number of Outputs: 8.

Frequency: 50/60 Hz.

Output Current: 4 A per circuit.

Output Voltage Range: 5 - 30V DC, 5 - 250V AC.

Isolation: 1500V between field side and logic side; 500V between groups.

Backplane Current Consumption: 6 mA from a 5V bus; 70 mA from a 24V bus.
Response Time: 15 ms.

Switching Frequency: 20 cycles per minute.

Maximum Inrush Current: 5 A.

Operating Temperature: 0 - 50°C.

Module Width: Single slot.

Functional Features

High-capacity Output: GE IC693MDL930 has a total of 8 normally open relay circuits, with an output switching capacity of 4 A per circuit, which can satisfy the control requirements of various high-power loads.

High Isolation: 1500V isolation between field side and logic side, and 500V isolation between groups, to effectively avoid cross interference between various circuits to improve the stability and reliability of the system.

Wide Voltage Compatibility: GE IC693MDL930 works under 24V DC or 120/240V AC rated voltage, and the output voltage range is 5 - 30V DC and 5 - 250V AC It can be adjusted according to different power supply environment and load requirements.

Status Monitoring: GE IC693MDL930has two rows of green LEDs on top. First line A1 can display the state of the output point 1 - 8: the state of whether on or off, which can help the user to observe which channel is working at any time.

Compatible: Designed for the Series 90 - 30 programmable logic controller; mounts in any I/O slot of a 5 - slot or 10 - slot baseplate. It also supports both modern RX3i and RX7i systems.

Application Areas

Manufacturing Industry: GE IC693MDL930 is used to facilitate equipment and system control and monitoring in the production process, from conveyor belts to robots and production lines. It controls the start and stop of conveyor belts, and robotic arms.

Energy Industry: It is utilized in the supervision and regulation of coalfired power stations, electricity networks, and energy apparatus. For example, GE IC693MDL930 can regulate the opening and closing of circuit breakers in power networks, as well as manage the operation of energy conversion equipment in power plants.

Transportation: It is used in controlling and operating traffic lights, vehicle tracking systems, and transport equipment. For instance, it can control the switching of traffic lights and the working of automatic ticket gates in subway stations, etc.

Building Automation: GE IC693MDL930 can control equipment in an intelligent building, including elevators, air conditioning systems, and lighting systems. It can do things like turn air conditioning units on or off and open or close elevator doors, for example.

Water Treatment Industry： It is used in the control system of water treatment plants to control the operation of pumps, valves, and other equipment, and to monitor the water quality and process parameters.
