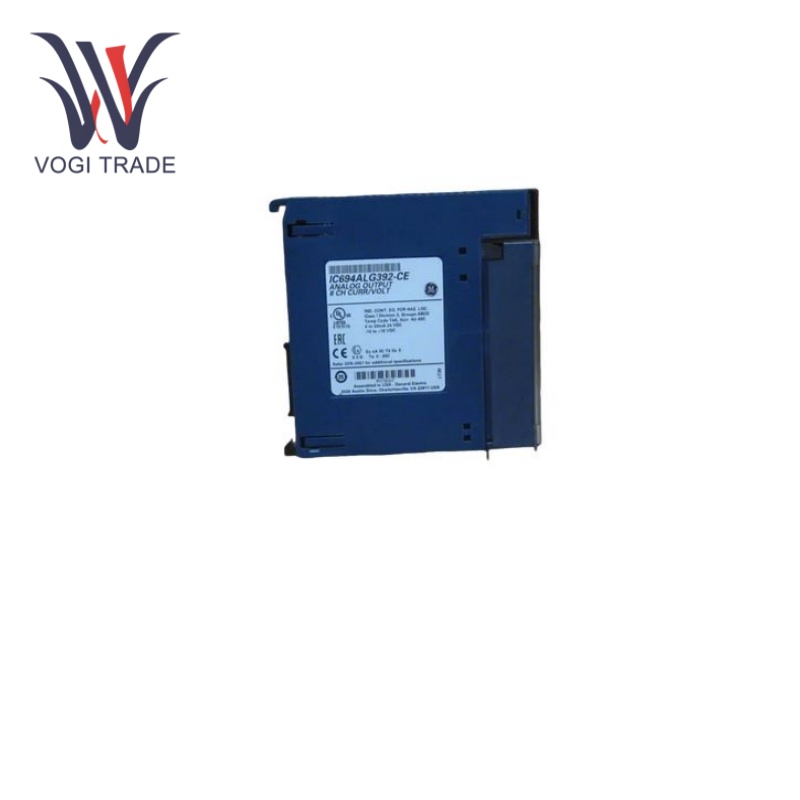

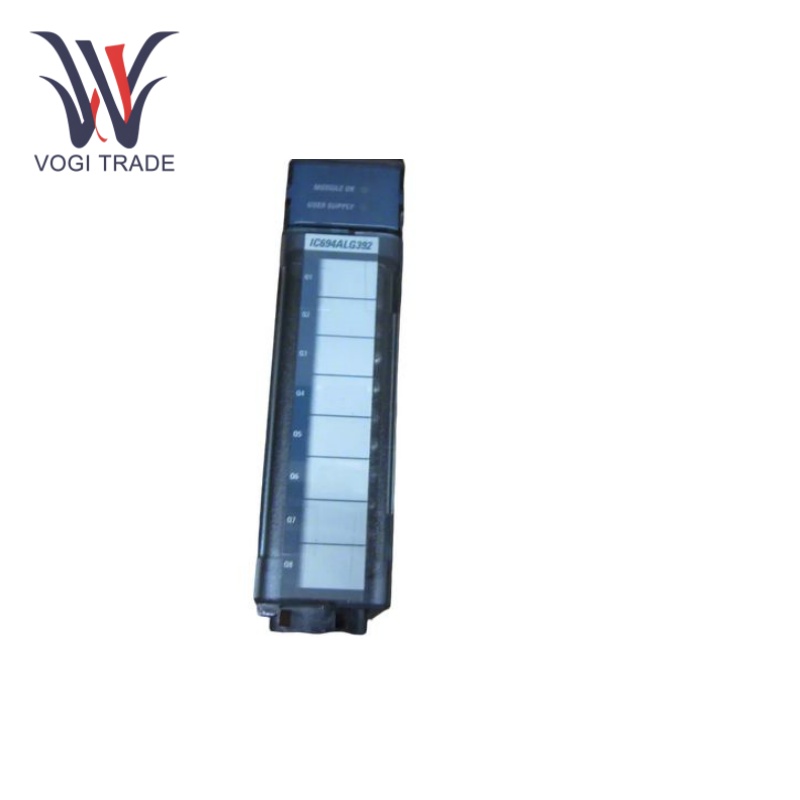

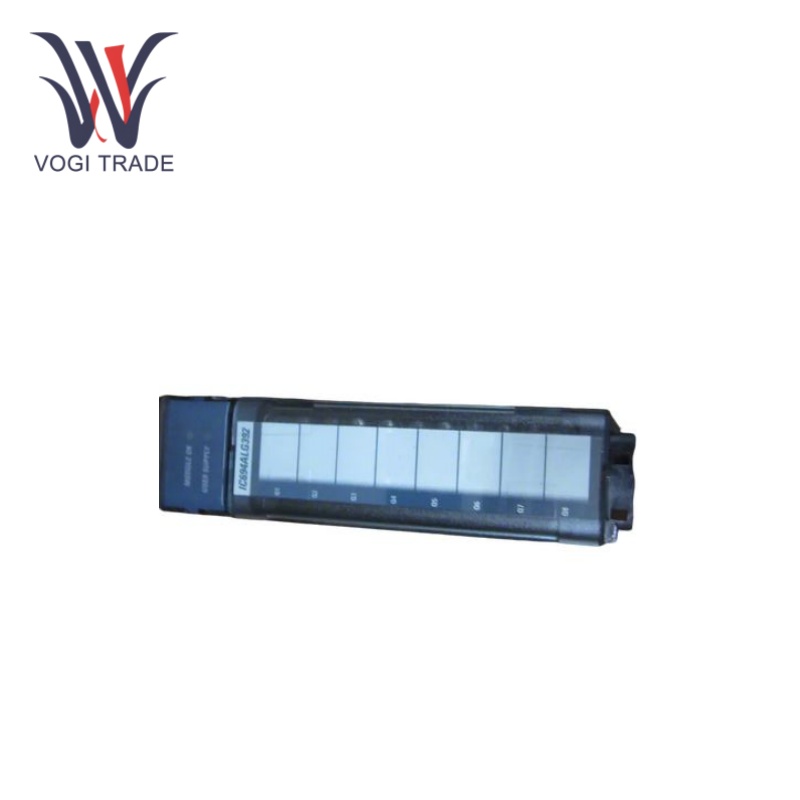

Brand: GE Description: Analog Current/Voltage Output Module Condition: Brand New Certificate：COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 4 Payment Term: T/T Shipping Port: ShenZhen GE IC694ALG392 supports both single-ended and differential input configurations, providing flexibility to meet specific system requirements. Integrated diagnostics, such as open-wire detection for current inputs, maintenance by enabling quick identification of issues.
|
Manufacture |
GE |
|
Model Number |
IC694ALG392 |
|
Ordering Number |
IC694ALG392 |
|
Catalog |
RX3i |
|
Country Of Origin |
USA |
|
HS CODE |
85389091 |
|
Dimension |
13.5cm x 13.5cm x 3.5cm |
|
Packing Dimension |
15cm x 15cm x 5cm |
|
Weight |
0.3kg |
Technical Parameter
Number of Output Channels: 8 single-ended output channels.
From +5 VDC PLC Backplane Supply: 110 mA
From +24 VDC User Supply: 315 mA
Update Rate: 8 milliseconds.
Voltage Range: 20 VDC to 30 VDC.
Voltage Ripple: 10% (maximum).
Maximum Output Load: 2 kilo-ohm
Output Load Capacitance: 2000 pF, inductance 1H.
Functional Characteristics
Quick Update Rate: The update rate of the 8 output channels of GE IC694ALG392 is only 8 milliseconds, which can respond to changes in the control system almost instantly and is suitable for controlling analog signals with a fast control cycle.
Internal fault detection functions: GE IC694ALG392 has detection of open (open wire fault detection). CPU Diagnostics helps the user and maintenance personnel to identify problems quickly and immediately. When the wire is loose or completely open, or broken, the fault will be monitored from the CPU diagnostics.
Reverse and Under-voltage Protection of the External Power Supply: GE IC694ALG392 has reverse polarity and under-voltage protection functions for the external power supply, which can effectively prevent the module from being damaged by incorrect power supply connection or power supply voltage fluctuation, and increase the reliability and safety of the module.
Fault Diagnosis
CPU Diagnostics: Fault information will be shown in CPU diagnostics if an open wire fault or other internal faults are occurred in GE IC694ALG392. The diagnostic results can be viewed by the user through the programming software or the human-machine interface of the control system, allowing them to quickly identify the fault location and cause.
Output Signal Monitoring: Check the module before assembly, and then if the module is malfunctioning, directly traceable to the specific defective part. Compare the actual with set values. When the measured value from the module does not match the set value significantly, it will be a sign of a malfunction of the output circuit of the module and the external connected equipment.
Application Fields
Process Control: GE IC694ALG392 is used extensively in process control industries like petrochemical, chemical and pharmaceutical for controlling variables in process including flow, temperature, pressure and level. To ensure that production process is stable and safe, it can output accurate analog signals to control the action of valves, pumps, and other equipment.
Machinery Control: In the field of mechanical manufacturing and automated equipment, it can be used to control the speed and position of motors, the opening and closing of solenoid valves, and the operation of other actuators, achieving accurate control and an automated operation of the equipment.
Building Automation: GE IC694ALG392 can be applied in building automation systems to control the operation of air conditioning system, lighting system, ventilation system, and other equipment output power adjustment equipment according to the actual needs to achieve energy saving and comfort purpose.
Data Acquisition and Monitoring: This module can convert the obtained analog signal into the digital signal so that it can be analyzed by control system. Meanwhile, it also can be used to monitor the operating status of various sensors and equipment, providing real-time data support for system operation and maintenance.
