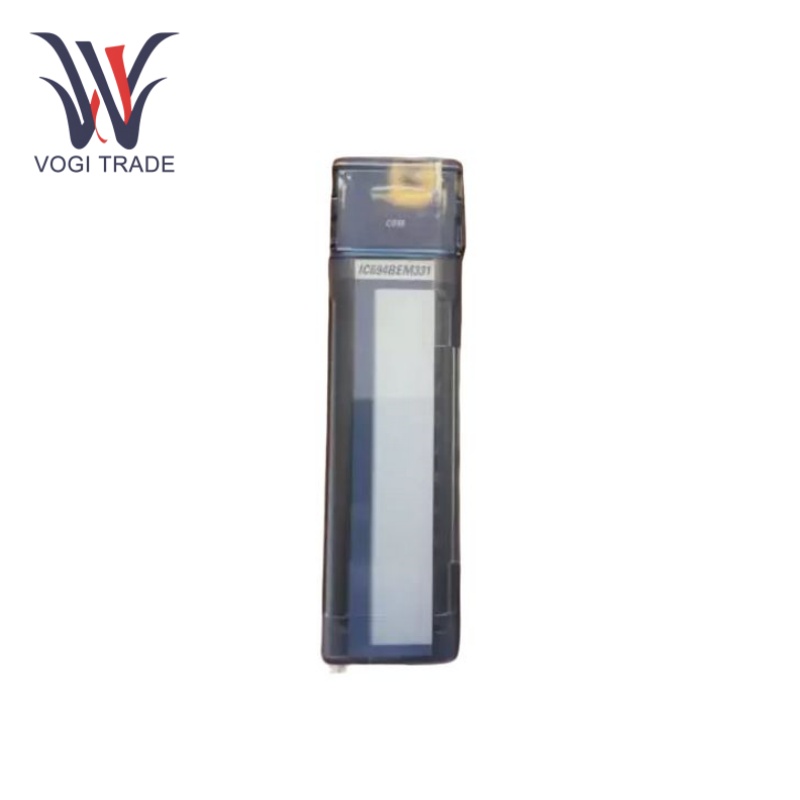

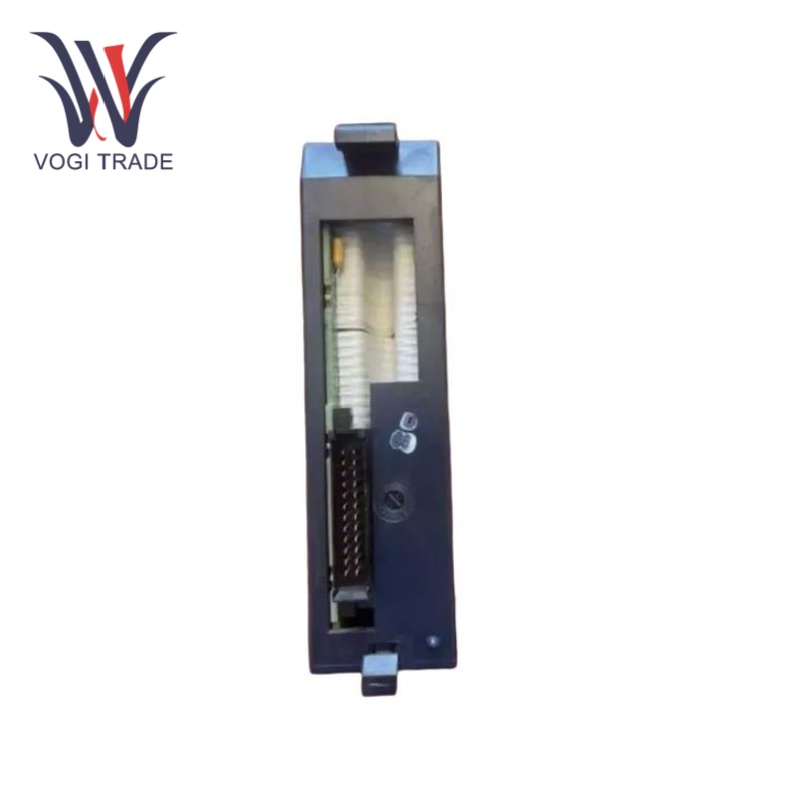

Brand: GE Description: Genius Bus Controller Module Condition: Brand New Certificate：COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 15 Payment Term: T/T Shipping Port: ShenZhen GE IC694BEM331 facilitates communication between the RX3i controller and devices on the Genius I/O network, a high-speed industrial communication protocol used for distributed control systems.
|
Manufacture |
GE |
|
Model Number |
IC694BEM331 |
|
Ordering Number |
IC694BEM331 |
|
Catalog |
RX3i |
|
Country Of Origin |
USA |
|
HS CODE |
85389091 |
|
Dimension |
23.4cm x 16cm x 9cm |
|
Packing Dimension |
25cm x 18cm x 11cm |
|
Weight |
0.4kg |
Technical Parameter
Rated Voltage: 5 VDC
Rated Current: 300 mA at 5 VDC, maximum.
Isolation Rating: 2000 volts hi-pot
Transient Common Mode Rejection: 1500 volts.
Data Rates: 153.5 Kbaud standard.
Data Length: 128 bytes per message.
Bus Termination: 75, 100, 120, or 150 ohm resistor.
Functional Characteristics
Advanced Diagnostic Capabilities: GE IC694BEM331 provides advanced diagnostic capabilities. Genius blocks and other devices on the bus will automatically send fault, alarms, and some other pre-defined conditions on the bus to bus controller. The bus controller of GE IC694BEM331 saves the diagnostic information received and the CPU can read the information automatically and display the fault in the fault table through the programming software, which helps the user to quickly locate and solve the system problem。
High Isolation and Reliability: Its isolation rating is 2000 volts, transient common mode rejection isolation rating is 1500 volts, which can effectively isolate the interference with electricity and ensure reliable system operation under harsh industrial environment.
Flexible Communications Interfaces: GE IC694BEM331 connects with PACSystems RX3i and Genius I/O serial bus interfaces, as well as Genius modules; other PLCs equipped with Genius bus controllers, remote drops; VersaMax and field control I/O stations; Genius handheld monitors (HHM); and multiple host connections.
Fault Diagnosis
Diagnostic Information Check: Use the Proficy Machine Edition software to check the diagnostic information stored in the bus controller. It will have the ability to show the number and description of a fault in detail, which improves speed of determining the cause and location of the fault.
Module power supply voltage detection: Observe the module power supply voltage, normal should be, 5 vdc. A voltage lower than required can cause the module to be unable to work properly and a voltage higher than the output voltage, it may cause GE IC694BEM331 to work abnormally or even be damaged.
Application Fields
Industrial Process Automation: It is widely used in industrial automation to control and monitor different production equipment and systems, such as conveyor belts, robots, production lines, etc. GE IC694BEM331 can also be utilized in the energy sector to track and manage power plants, power grids, and energy equipment.
Process Control: It can be applied in process control system, to connect different types of sensors, actuators and controllers, realize the integration and communication of the whole process control system. It can guarantee the faithful transmission and processing of process data, and thus can enhance the silo achieve the control precision and stability of the process.
Building Automation: It can be used to connect various intelligent devices and systems in building automation systems, such as air conditioning systems, lighting systems, and security monitoring systems, achieving centralized management and intelligent control of the building.
Transportation: GE IC694BEM331 can be used for traffic light control, vehicle tracking systems, transportation equipment, etc. to manage and control the transportation process, making transportation more efficient and safer.
