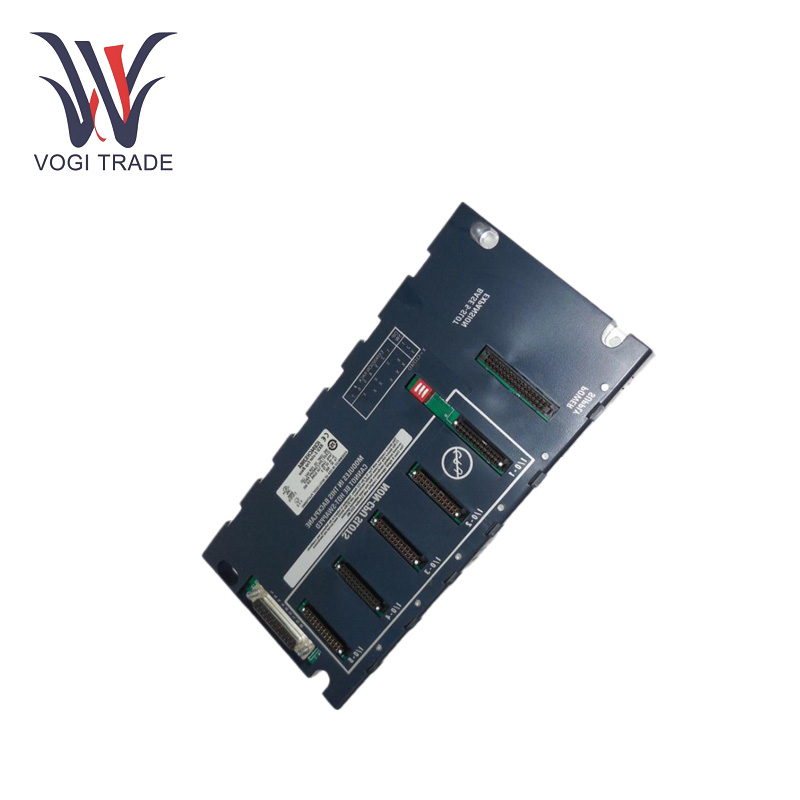

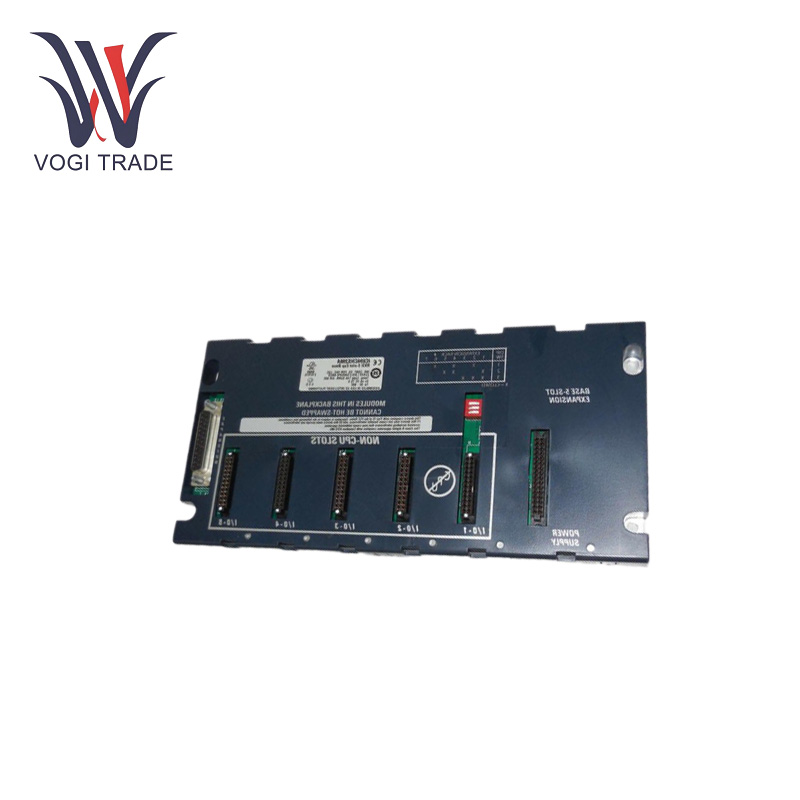

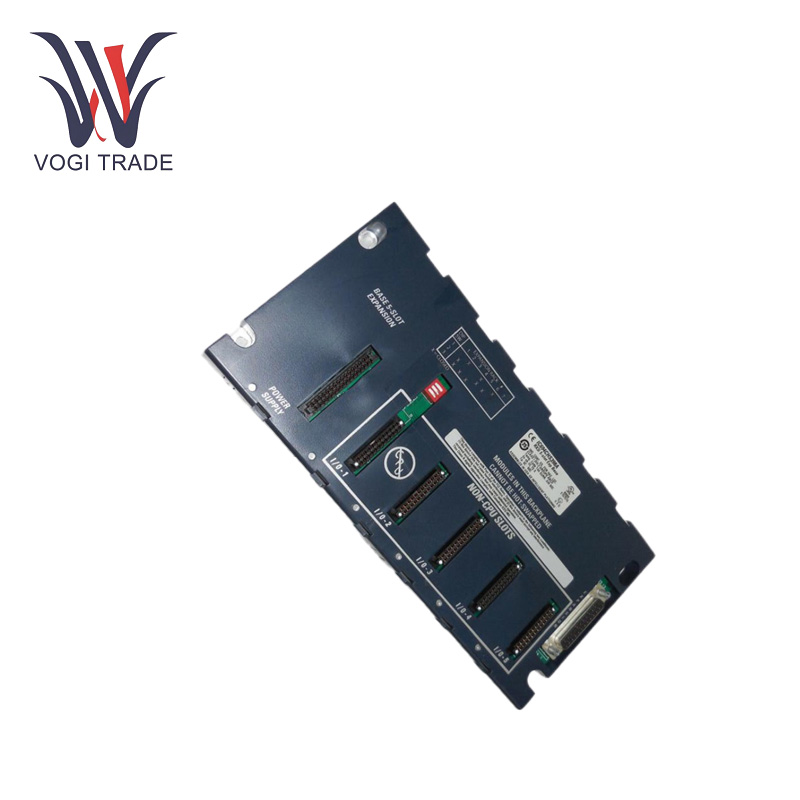

GE IC694CHS398

Operating Parameters

Power Supply: 120 to 240 VAC and 125 VDC.

Voltage and Current: Maximum load is 170 mA or 0.85 W at 5 VDC.

Cable Length: Maximum connector cable length allowed is 15 m (50 ft).

Operating Temperature: -10°C to +55°C, suitable for a variety of industrial applications.

Slots: 5 slots.

Product Features

Expansion: As a serial expansion backplane, the GE IC694CHS398 can be connected to the GE Universal Backplane and up to 6 other expansion or remote backplanes to form an enlarged PLC. This expansion of application capabilities comes with the ability to add more I/O modules than the Universal Backplane itself can handle.

Module Accommodation: Up to 5 onboard interface modules, so you have the option to add different serial communication modules to customize the data rate and protocol used to meet application requirements. In the context of modular systems, each slot corresponds to a location where a module can be inserted.

Data transmission: It has a high-speed RS-485 serial interface for reliable communication. It allows communication and interaction between the PLC system and devices outside the local system, as well as the transmission of data and control signals between different components.

Simple installation and maintenance: The module GE IC694CHS398 can be easily installed, and components can be easily replaced. In addition, when problems arise, it can quickly solve the problem, thereby reducing operating time and maintenance costs. ALPHA is small in size and can be mounted on DIN rails, which helps to integrate into old control panels, save space and simplify installation.

Application range

Manufacturing: GE IC694CHS398 is often used in manufacturing plants to enhance the ability of PLC systems to control and monitor production processes. It is a protocol that can be used to connect and manage different equipment, including conveyors, robotic arms, and production lines, thereby simplifying and automating production operations. For example, in an automobile manufacturing plant, it can be used to manage the movement and operation of robotic welding arms and assembly line conveyors.

Energy sector: GE IC694CHS398 is used to monitor and control power plants, power grids and energy equipment. It is used to connect and control power plant equipment, monitor parameters such as temperature, pressure and power output, and transmit data to the control system for analysis and decision making. It can achieve tracking of solar power plants and also monitor the power generation efficiency of solar power plants.
