GE IC694MDL330
  • GE IC694MDL330 GE IC694MDL330
  • GE IC694MDL330 GE IC694MDL330
  • GE IC694MDL330 GE IC694MDL330

GE IC694MDL330

Brand: GE
Description: output module
Condition: Brand New
Certificate:COO TEST REPORT WARRANTY LETTER
Warranty: 1 year
Inventory Qty: 13
Payment Term: T/T
Shipping Port: ShenZhen

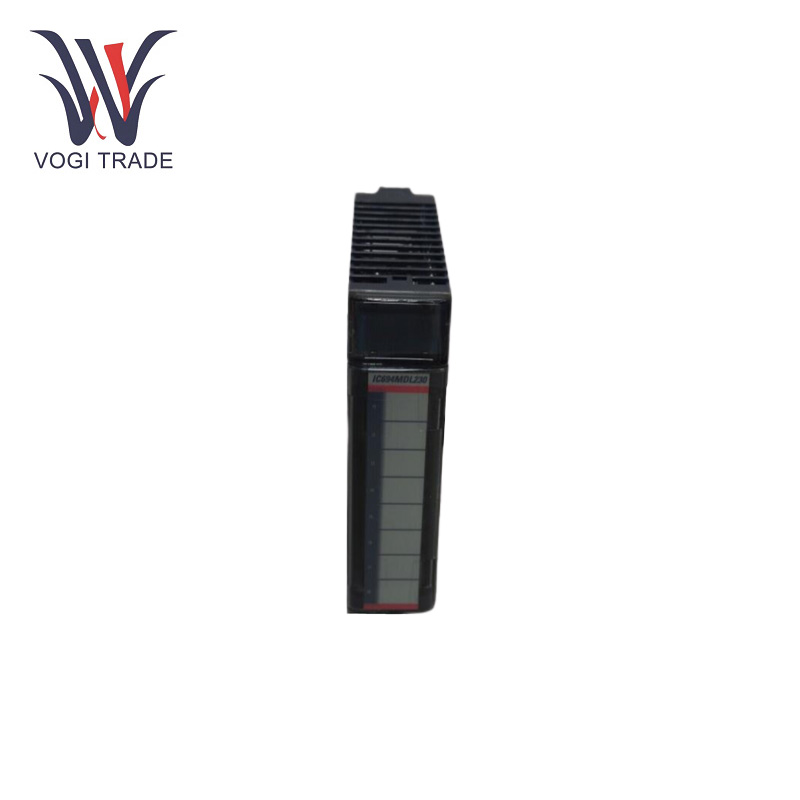

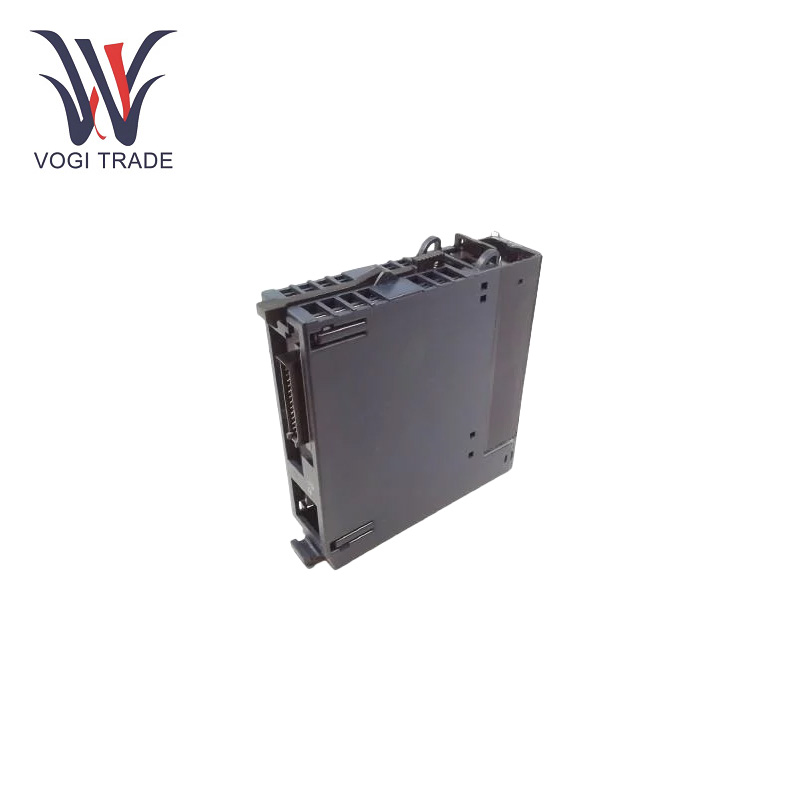

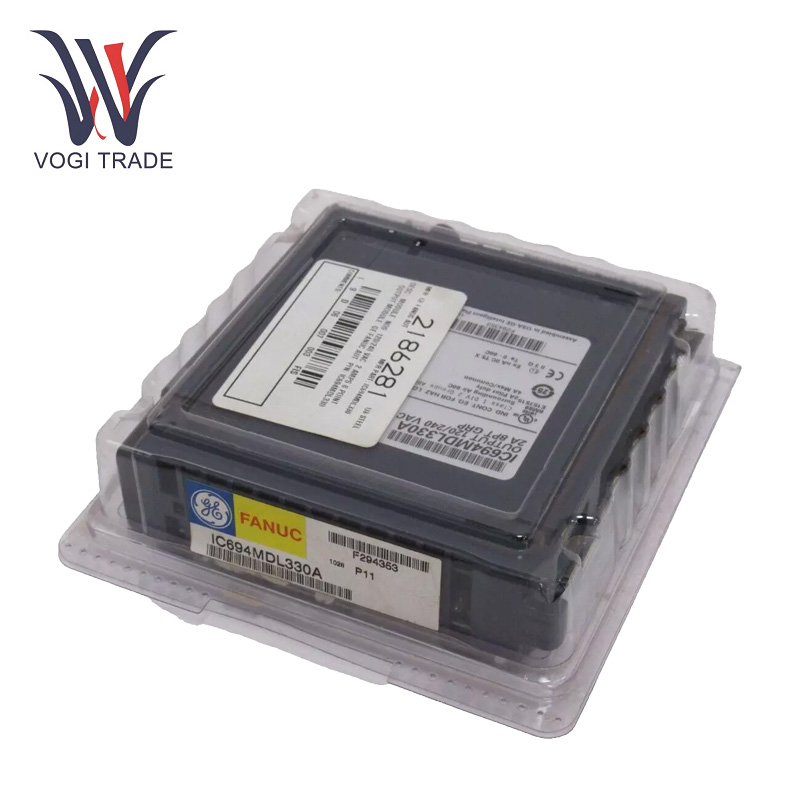

GE IC694MDL330 is a digital output module,which provides 32 discrete outputs and offer high-density control for industrial automation applications.

Send Inquiry

Product Description

Manufacture
GE
Model Number
IC694MDL330
Ordering Number
IC694MDL330
Catalog
VersaMax
Country Of Origin
USA
HS CODE
85389091
Dimension
13cm x 13cm x 3.5cm
Packing Dimension
15cm x 15cm x 6cm
Weight
0.3kg

Technical Parameter

Rated Voltage: 240V AC.

Output Voltage Range: 85 to 264V AC at 50 to 60Hz frequency.

Output Current: 2A maximum.

Inrush Output Current: 20A maximum.

Output Voltage Drop: 1.5V.

Output Leakage Current: 3mA.

Field to Backplane and to Frame Ground: 250V AC continuous.

Group to Group: 250V AC.

Number of Outputs: 8, arranged in 2 isolated groups with 4 output points in each group.

Response Time: 1ms maximum.

Power Consumption: 160mA.


Functional Characteristics

Response Times Are Fast: Max current on response time of GE IC694MDL330 is 1ms, and with current off response time is 1/2 cycle max, allowing for the output state to be controlled quickly and accurately, this is vital in applications that need a rapid response time, like high-speed production lines and real-time control systems.

The various protection mechanisms: 5 amperes for each group of outputs, RC snubber for each individual output to prevent the output of transient electrical noise from damaging the module and the equipment connected to it due to over-current or electrical surge.

Multiple Output Points and Isolated Groups: GE IC694MDL330 has 8 output points which are organized such into 2 decoupled group with 4 output points each. The common is unique to each group so that the groups can be utilized on different sections of the AC power, allowing user to connect and control the loads independently.


Fault Diagnosis

Software Diagnosis: By using GE's configuration software, user can check the output status and working parameters of GE IC694MDL330 in real time. What the software can do is provide detailed error messages and diagnostic information that aid users in narrowing down the root cause of most issues, including Root cause such as incorrect output settings, communication errors, abnormal output currents, etc.

Multi-meter Testing: Measure output voltage and current of the module. And if the measured value is abnormal, it may reflect that the module is faulty or the load is abnormal.


Application Fields

Industrial Automation: GE IC694MDL330 is widely used in automotive manufacturing, food processing, packaging machinery and other industrial automation production lines to control the start-stop and operation status of motors, solenoid valves, relays and other equipment, and realize the automation and intelligent control of the production process.

Power System: In power generation, transmission and distribution process, GE IC694MDL330 can be used to control the switch state of circuit breakers, contactors and other power equipment, monitor and control the operation of the power system, ensuring the safe and stable operation of the power grid.

Building Automation: It is used for controlling the operation of elevators, air conditioners, lighting control system and other devices to realize the centralized management and intelligent control of the building environment to improve the comfort and energy efficiency of the building.

Process control: GE IC694MDL330 can be used in the process control industry of chemical, petrochemical, pharmaceutical and other industries to control the opening and closing of valves, the start-stop of pumps and other equipment, and realize the accurate control of the process parameters and the automation of the production process.
