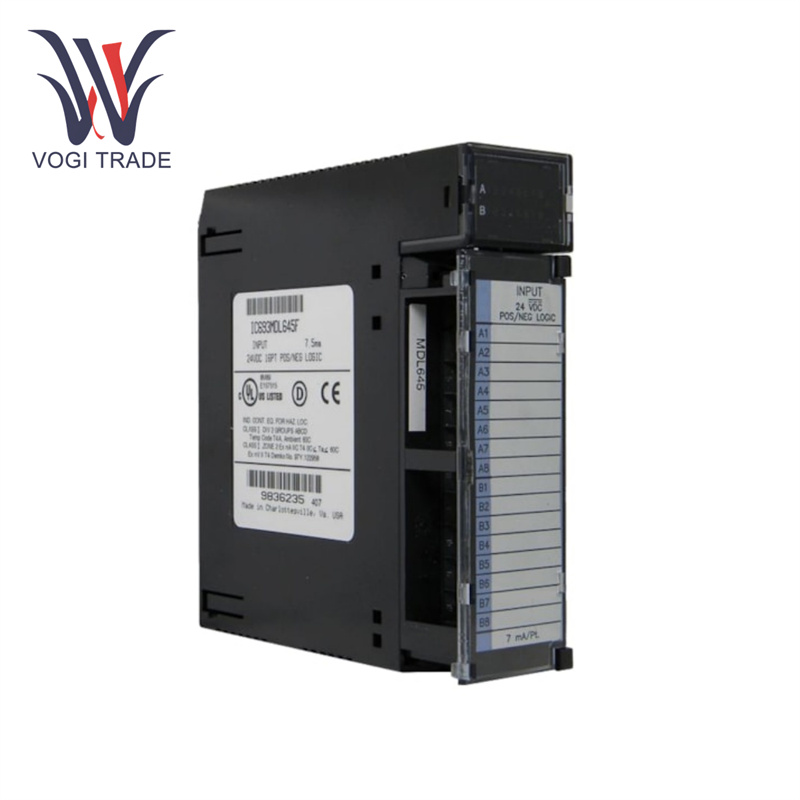

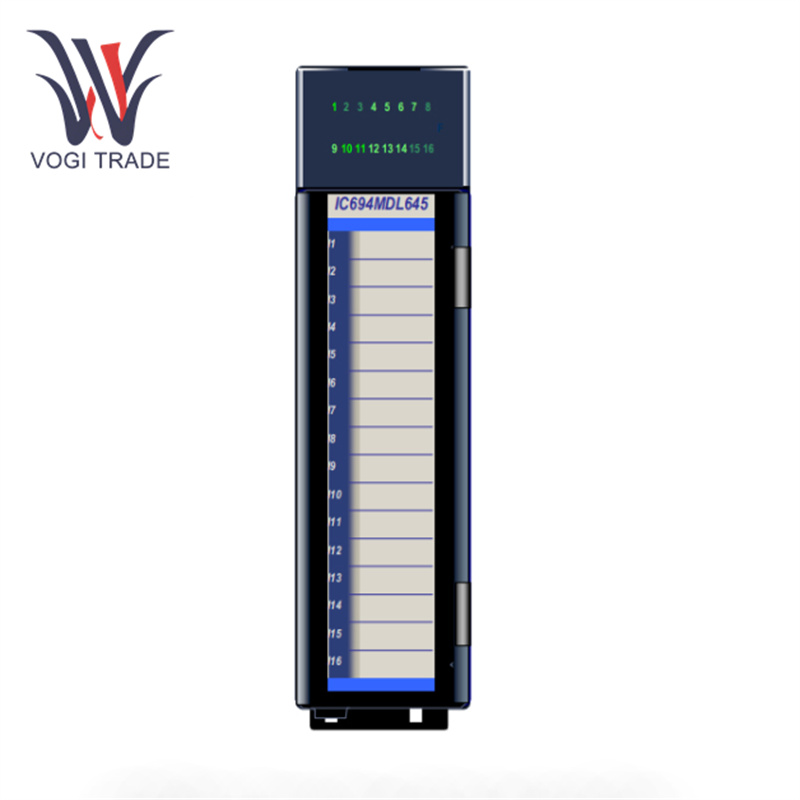

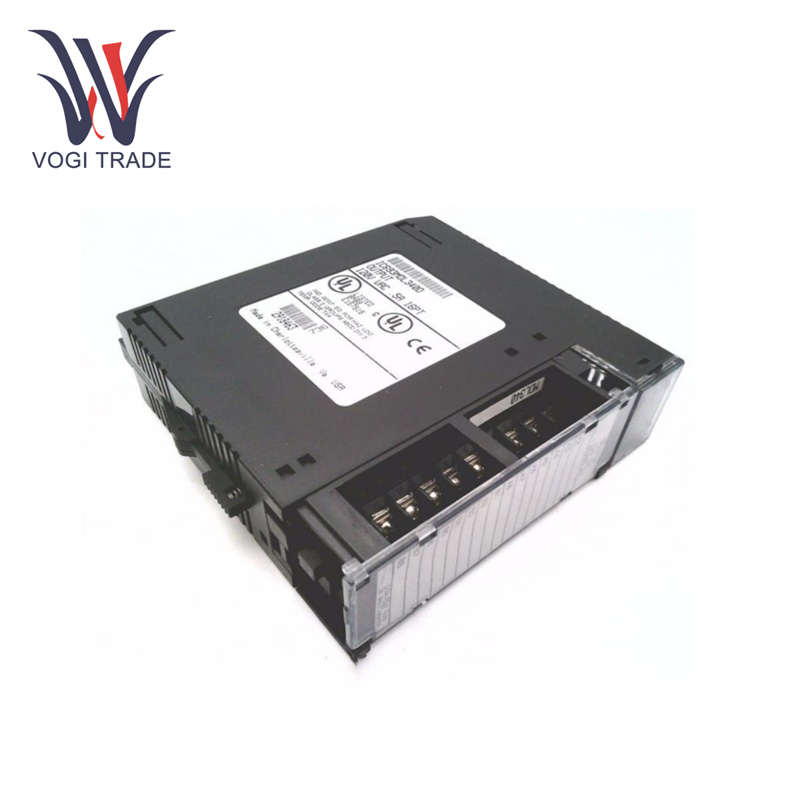

GE IC694MDL645

Technical Parameter

Rated voltage: 24V DC.

Input voltage range: 0-30V DC.

Input current: 7mA.

Power consumption: 5V DC bus on backplane, 80mA when all inputs are on.

Number of input points: 16 points, 1 group, with 1 common power input terminal.

Logic type: Can support positive or negative logic.

Operating Temperature: -40°C to 60°C.

Storage Temperature: -40°C to 85°C.

Relative Humidity: 5% to 95%, non-condensing.

Vibration: 1G at 57-500Hz.

Shock: 15G.

Function Features

Digital I/O Function: GE IC694MDL645 is primarily designed for digital input/output operations. It provides a reliable means to interface with digital devices in industrial control systems. With a set number of digital input channels, it can accurately detect the on/off states of sensors, switches, and other digital sources. The digital output channels are capable of driving relays, solenoids, and other digital actuators, ensuring precise control over various industrial processes.

High - Speed Response: GE IC694MDL645 is engineered to offer a high - speed response to digital signals. It can quickly capture changes in input signals and translate them into appropriate output actions. In applications where split - second decisions are crucial, such as in high - speed manufacturing lines or automated machinery, it can keep up with the rapid pace of operations, minimizing any potential delays in the control loop.

Isolation Capabilities: To protect the control system from electrical noise and voltage spikes, GE IC694MDL645 is equipped with built - in isolation features. The input and output channels are electrically isolated from each other and from the control system's power supply. This isolation helps prevent interference and electrical faults from spreading throughout the system, enhancing the overall reliability and stability of the control setup.

Operation Method

Mounting and Installation: First, carefully mount GE IC694MDL645 module onto the compatible backplane or chassis of the control system. Ensure that it is firmly seated and properly aligned to establish a secure mechanical and electrical connection. After mounting, connect the appropriate power supply to the module, adhering to the specified voltage and polarity requirements.

Wiring of Digital Devices: Connect the digital input devices, such as proximity sensors, push buttons, and limit switches, to the input terminals of GE IC694MDL645. For digital output connections, link the module's output terminals to devices like relays, motor starters, and indicator lights. When wiring, use appropriate gauge wires and ensure proper insulation to avoid short circuits and electrical hazards.

Application Areas

Food and Beverage Industry: In food processing plants, the module can be employed to control conveyor belts, packaging machines, and filling stations. Digital sensors can detect the presence of products on the conveyor, and GE IC694MDL645 can then control the operation of motors, valves, and other equipment to ensure smooth and accurate production.

Material Handling Systems: In warehouses and distribution centers, it can be used to control automated guided vehicles (AGVs), forklifts, and conveyor systems. Digital sensors can provide information about the position of loads and the status of equipment, and the module can control the movement and operation of these systems to optimize material flow.

HVAC Control in Commercial Buildings: The module can be part of the HVAC control system in commercial buildings. Digital sensors can detect the occupancy status of rooms, and GE IC694MDL645 can control the operation of fans, dampers, and heaters to maintain comfortable indoor conditions while optimizing energy consumption.
