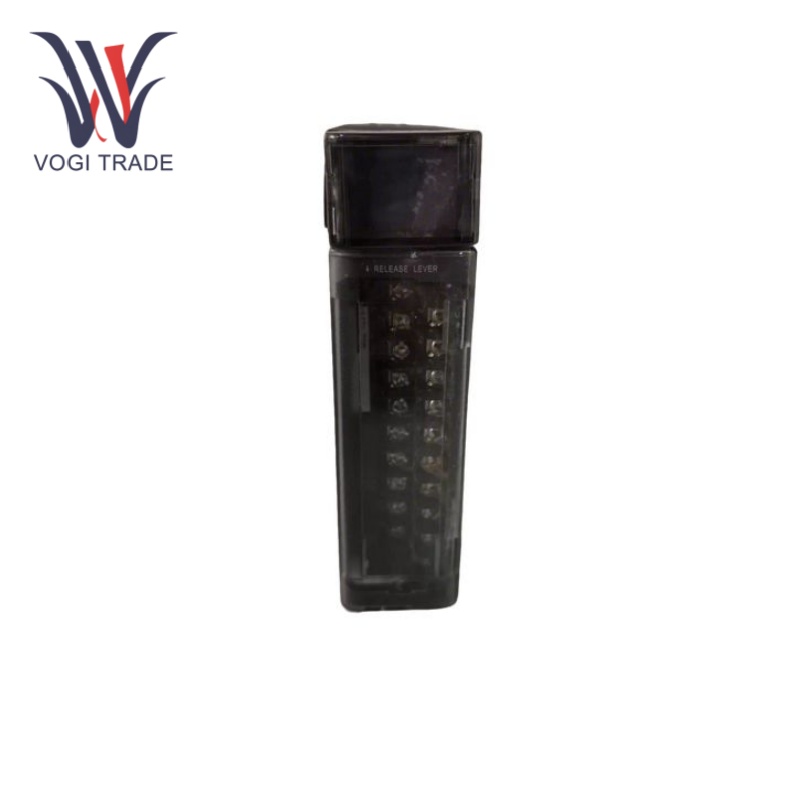

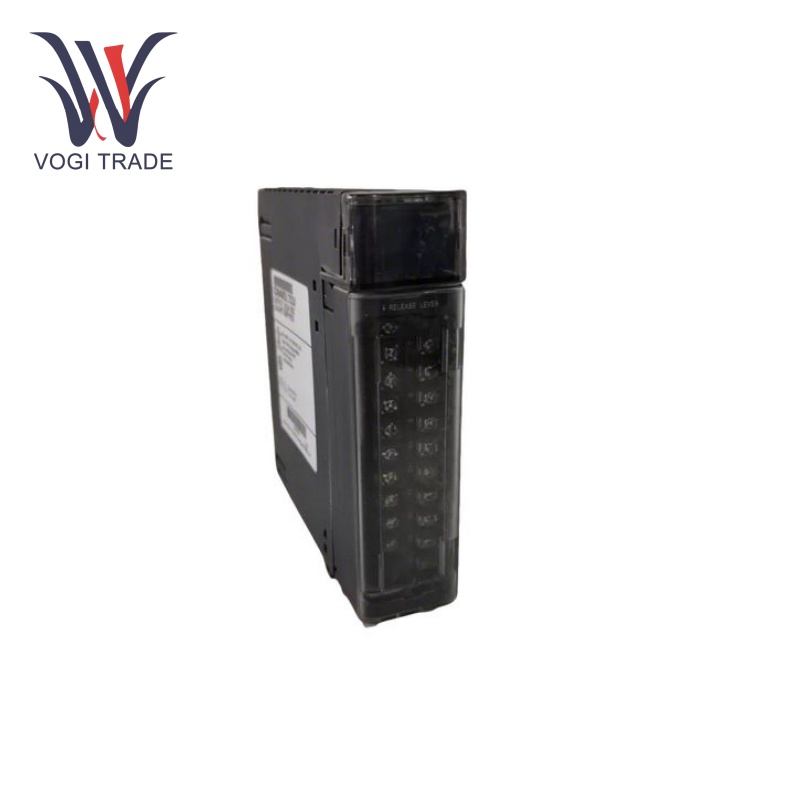

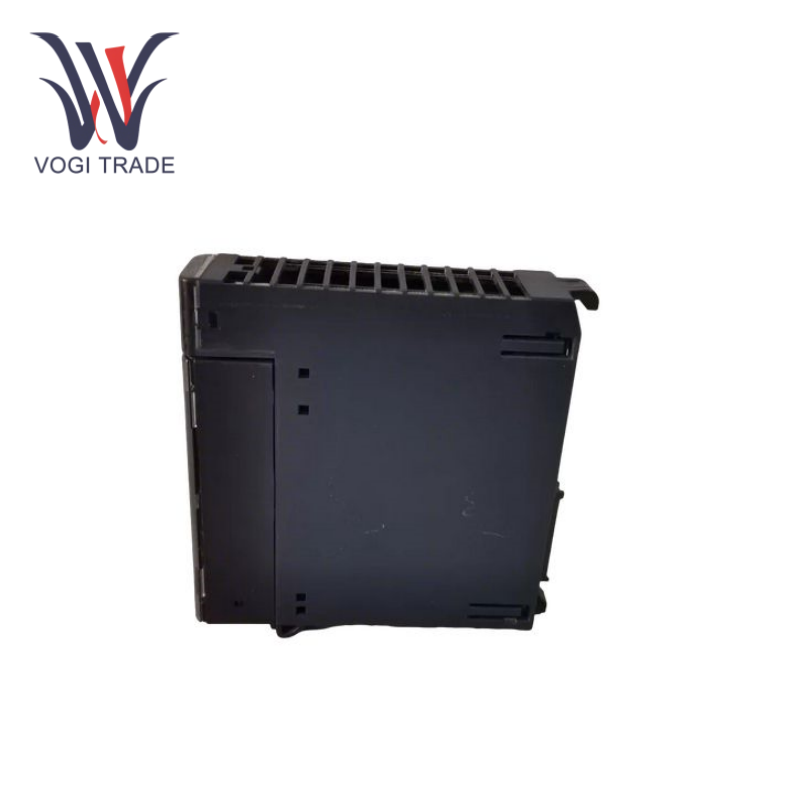

GE IC694MDL732

Technical Paramater

Rated Voltage: 24 VDC.

Output Voltage Range: 12 to 24V DC (+20%, -15%).

Output Current: 0.5 A per point, 2 A maximum per common.

Inrush Current: 4.78 A for 10 ms.

Output Voltage Drop: 1 V maximum.

Off-State Leakage: 1 mA maximum.

On Response Time: 2 ms maximum.

Off Response Time: 2 ms maximum.

Functional Characteristics

Positive Logic and Easy to Connect: Positive logic design of GE IC694MDL732 is simple to wire and program. There is a strong coupling between the negative power bus and the module terminals, and the connection method is simple and clear, and the wiring error rate is low.

Wide Voltage: Tolerance in 24V DC voltage makes it applicable in different power supply voltage levels in different machines in an industry, which ensures GE IC694MDL732 to work in a good state with high adaptability.

High Output Current Capability: Each point maximum output current is 0.5A, the common terminal is 2A, it can drive a variety of high-power load devices (motor starter, solenoid, indicator, etc.) directly, reduce the intermediate relay, save cost and wiring space.

Well Compatible: the module is a part of GE Fanuc RX3i series, GE IC694MDL732 has good compatibility with other device and modules in GE Fanuc RX3i series, which can be easily integrated into the existing control system, and can realize seamless connection and communication.

Operation Methods

Install: GE IC694MDL732 module is placed in the specified shelf slot space in the GE PACSystems RX3i series controller, and confirm that the module is inserted and the connection is firm. According to the wiring diagram of the loop, connect the output terminals of the module to external load devices, and ensure the polarity and signal lines of the positive and negative poles is correctly connected.

Signal Output and Control: After installing and configuring the module, it can output control signals to the external load devices The controller generates and sends the control signals as per the programmed logic and control requirements. The programming software and human-machine interface enable users to observe and manipulate the output signals.

Application Fields

Industrial automation:  GE IC694MDL732  is widely used to control the operation of motors, solenoid valves, valves, etc., to realize the automation and control of the production process.

Power System: It is widely used in power generation, transmission and distribution systems, can control the power grid circuit switch and relay protection equipment, ensure the safe operation and stable operation of the power system.

Building automation: In the building automation system, GE IC694MDL732  can control the corresponding operation of various electrical equipment in the building (such as elevators, air conditioners, lighting systems, etc.) to improve the energy efficiency and management level of the building.

Transportation: In the transportation industry, it can be applied in the control systems of railways, subways, and intelligent transportation systems to control the operation of traffic lights, signal switches, and other equipment, and ensure the safe and efficient operation of the transportation system.
