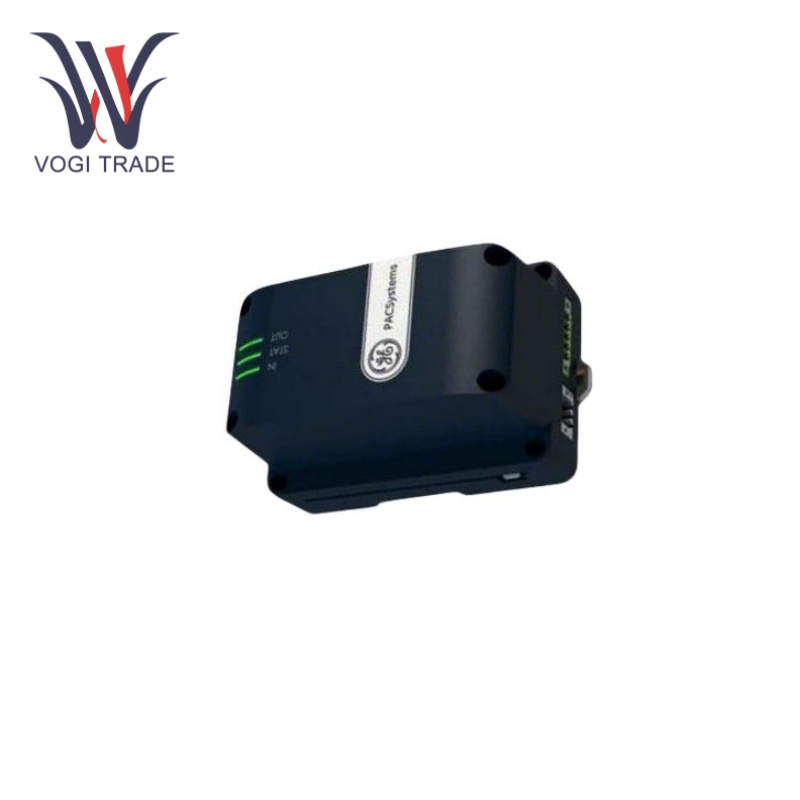

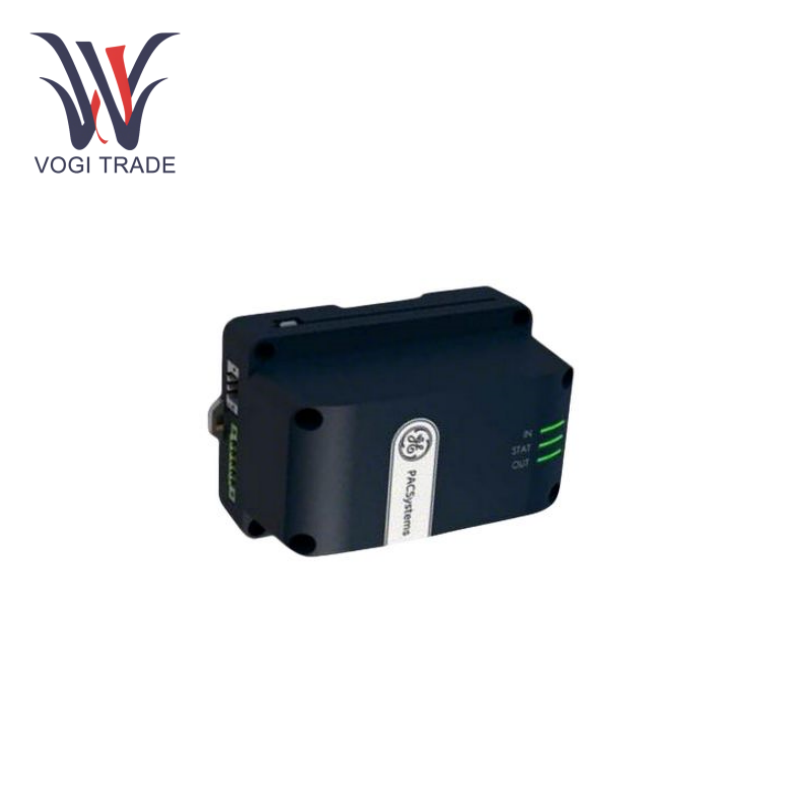

GE IC695ACC402

Operating Parameters

Power Supply: Typically 24V DC.

Communication Ports: RS-232 and RS-485.

Output Power: 45 W.

Output Voltage Range: 18–30 V DC.

Output Current: 2.25 A.

Backup Trip Voltage: 19 V DC.

Protocol Support: SNP, Modbus RTU and series I/O protocols support.

Operating Temperature: -20°C to 60°C.

Operating Temperature:-40°C to 85°C.

Product Features

Multiple Communication Functions: Integrated RS-232 and RS-485 communication ports for each port support SNP, Modbus RTU and series I/O protocols This allows the module to interface with different devices, supporting data transfer and system integration.

Built-in two fault tables for the PLC and the I/O, and powerful diagnostic function: GE IC695ACC402 can be very clear about the time, location and content of the fault, so as to help maintenance personnel to quickly locate and solve the problem, so as to reduce system downtime.

Flexible Programming and Operation: GE IC695ACC402 can be programmed in ladder diagram, sequential function chart and instruction statement. It also supports highspeed counter HSC, pulse width modulation output PWM, pule train output, floatingpoint operation and PID, function of different control tasks.

Installation

Mounting: GE IC695ACC402 module needs to be mounted to the appropriate slot in the PLC enclosure. However, as the module is pushed in, make sure everything is securely in position and you have a proper connection. Make sure that you module is the right way round as you cannot insert it incorrectly.

Troubleshooting

Communication Failed: In the event of a communication failure, check the connection of the communication cable if GE IC695ACC402 is connected tightly and not damaged. Then verify the setting for communication parameters to confirm it is correct. If possible, attempt to perform the cable replacement or connect with another device to isolate the fault.

Input / Output Abnormality: If the input or output point of the module is not working properly, first check whether the external device is connected. Check whether the external device damaged, short circuit or open circuit.

Power Failure: If the module has no power supply, first of all, check whether the power supply cable is loose or damaged. Check that you module power requirements are being satisfied by measuring the input voltage And if the fuse is blown, renew it with a new one of the same specification.

Application range

Industrial Automation Control: GE IC695ACC402 module can be used for industrial automation control, such as in the manufacturing industry to control the production line control system, realize automation of production process. It can monitor the equipment running status in real time, and adjust the production process through the control algorithm to improve production efficiency and product quality.

Building Automation System: The module can be used to control the operation of various equipment in the building, such as the control system of smart buildings (the control system of smart buildings, such as elevators, air conditioners, lighting equipment, etc. Through the network can also realize monitoring and management of building environment and energy consumption, improve the comfort and energy efficiency of building.
