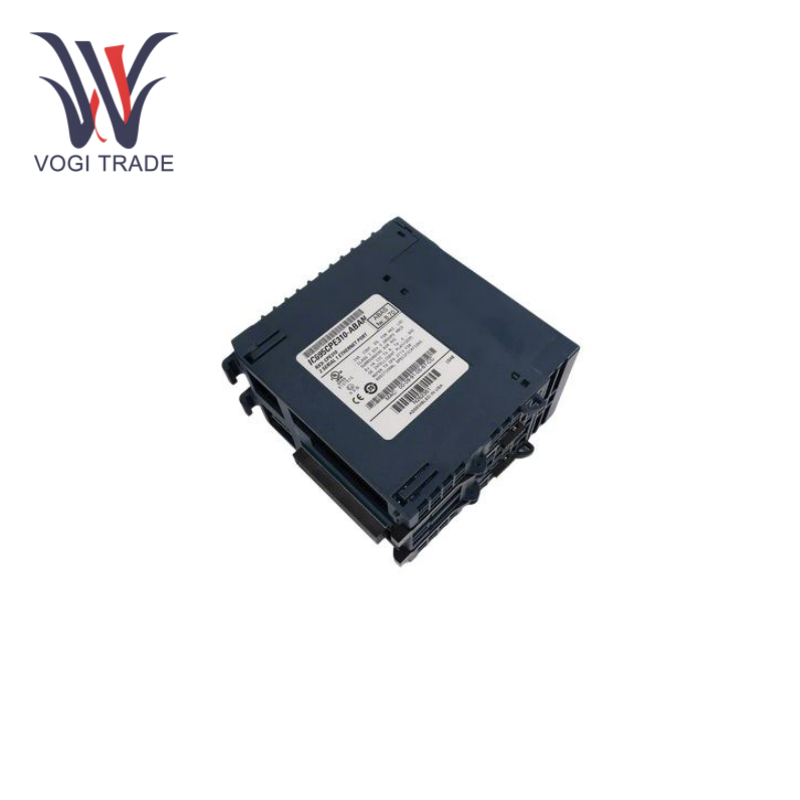

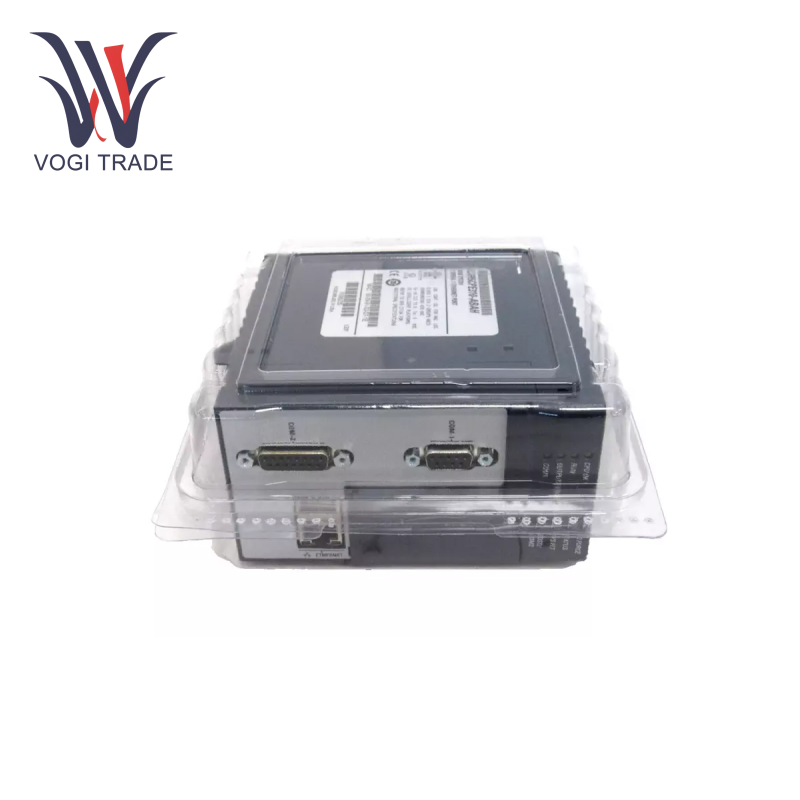

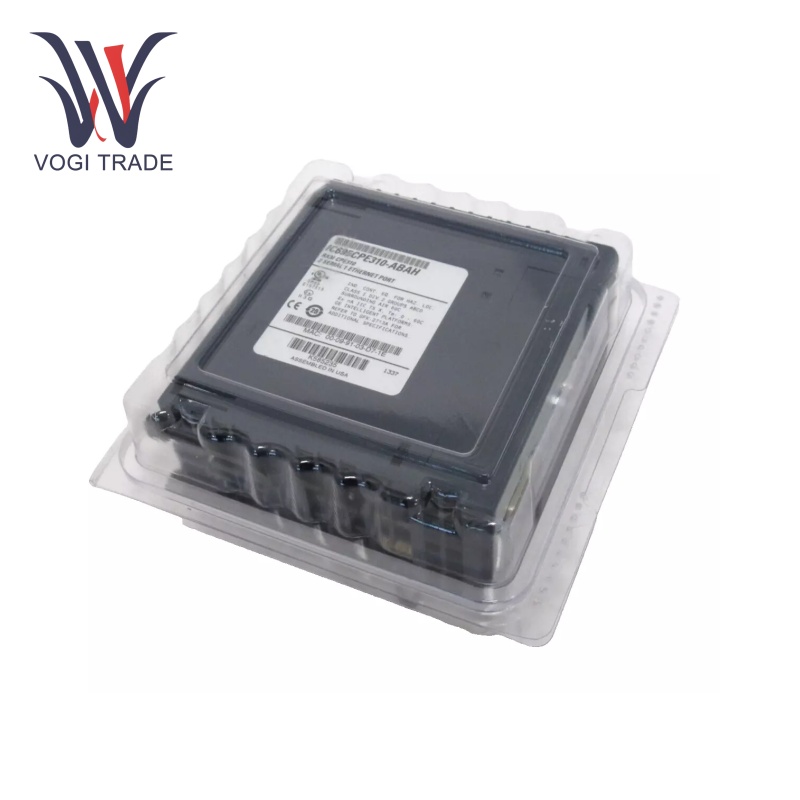

GE IC695CPE310

Operating Parameters

Processor: 1.1 GHz.

RAM: 256 MB.

I/O capacity: Up to 32K N inputs .

Power Supply: 24 VDC.

Build Temp: 0°C to 60°C.

Operating temperature: -40°C ~ +85°C.

Communication Protocol: Modbus TCP/IP, Ethernet/IP, Profibus, SNP, Serial I/O, Modbus RTU and some communication protocols.

Product Features

High Performance Processing: GE IC695CPE310 features a 1.1 GHz high performance processor. The execution speed of Boolean logic is 0.72 ms/1000 instructions, so it can handle complex control logic and algorithms, and provide rapid real-time response capabilities, which is an important Hallmark of applications with speed data processing and real-time control requirements.

Multi-Flexible Communication: GE IC695CPE310 has 1 Ethernet communication port with 10/100 Mbaud data transmission and automatic negotiation function. In addition, it includes two serial ports: one RS232 port and one RS485 port. Leading communication protocols are supported by these interfaces, including Modbus TCP/IP, Ethernet/IP, Profibus, SNP, Serial I/O, and Modbus RTU, ensuring the transferability of data and communication with other devices and systems.

Enhanced Memory: 256 MB of RAM and 128 MB of flash memory greatly improves the ability to store application programs, data and historical recordsm. jdzj. com. It enables users to design and advance all application programs without any limitations and save significant data to be analyzed and processed later.

Installation

Mounting: First step is to add GE IC695CPE310 module onto the proper slot of the RX3i universal backplane. Make sure the module is secured in a proper way and stable connection. Ensure to pay attention to the direction of the module to prevent insertion errors.

Power Connection: Power Supply, Connect the 24 VDC power supply cable to the power input terminal of the module. The polarity should be checked whether power supply is reversed and whether power supply voltage normal.

Troubleshooting

The communication may fail: in this case, first check the connection of the communication cable to make sure it is not damaged and can be firmly connected. Subsequently, determine the setting of the communication parameters, including baud rate, data bits, stop bits, and parity bits. If you can, swap out the communication cable or connect to a different device to help narrow down the problem. If you're using Ethernet to communicate, make sure to check the network configuration and IP address settings as well.

Program Abnormality: If the program is abnormal, first check whether there are errors or logical contradictions in the program code. You can do this using the programming software debugging tools to view where the program is running and the value in variables. Upgrade the program to the latest version, and edit and correct it according to the actual situation.

Power supply issue: If GE IC695CPE310 cannot start or malfunctions, check first whether the power supply voltage is normal. Make sure that the power supply cable is securely connected and undamaged. If you can swap the power supply, you can do that as an isolation test.

Application range

Process and Industrial Automation: GE IC695CPE310 can be used to design and implement systems that help control and monitor the operation of production equipment like assembly lines, CNC machines, and robotic arms. It can also communicate with other devices through Ethernet and serial ports, so that the entire production line integrates and coordinates the use to enhance the production efficiency, product quality, and production safety.

Energy Management: GE IC695CPE310 has all the scope in the energy industry, be it in generation, transmission, or distribution of energy. It real-timely monitors the operation information of power equipment, controls the power generation and distribution process, and optimizes the energy management system via communication with sensors and executors. It can also interface with other energy management systems to implement energy conservation and emission reduction targets.
