GE IC695ETM001

Operation Parameters

Processor Speed: 200 MHz

Ethernet Ports: Two auto-sensing 10BaseT/100BaseTX RJ-45 ports

IP Addressing: Supports a single IP address

Serial Port: RS-232 Station Manager port

Protocols Supported: SRTP, Modbus TCP, EGD

Product Features

Data Exchange:EGD Ethernet Global Data,Enables periodic data exchange.

Com Stack: The TCP/IP stack used with SRTP (Service ReFresher Transport Protocol), the wireless protocol implemented in HAL1033, includes Modbus/TCP Server and Client.

Time Synchronization:Synchronizes time with an SNTP Time Server on the Ethernet network.

Station Manager Access: Provides integrated Station Manager access for online supervisory access.

Data Transfer: High-speed communication interfaces help in rapid data transfer between connected devices. Protocols supported include Ethernet/IP and Modbus TCP, allowing unprecedented compatibility with PLCs, HMIs, and industrial automation equipment. GE IC695ETM001 ensures real-time exchange of data, allowing for rapid decision making and process control.

Flexible Configuration Options: GE IC695ETM001 offers a wide range of configurable parameters, users can customize its functionality to meet the needs of their specific application. Through intuitive software interfaces, communication baud rates, IP addresses, and a multitude of other settings can be configured by the user. This allows for applications ranging from a simple control task to a sophisticated, networked automation infrastructure.

With Diagnostic and Monitoring Abilities: The device comes with built-in diagnostic capabilities. It can continuously check its own inner condition like voltage, temperature, communication link, etc. If something goes wrong, it generates alerts and error codes that provide feedback for diagnosis. Its self-monitoring ability allows it to reduce downtime by providing quick identification and resolution of issues.

Installation

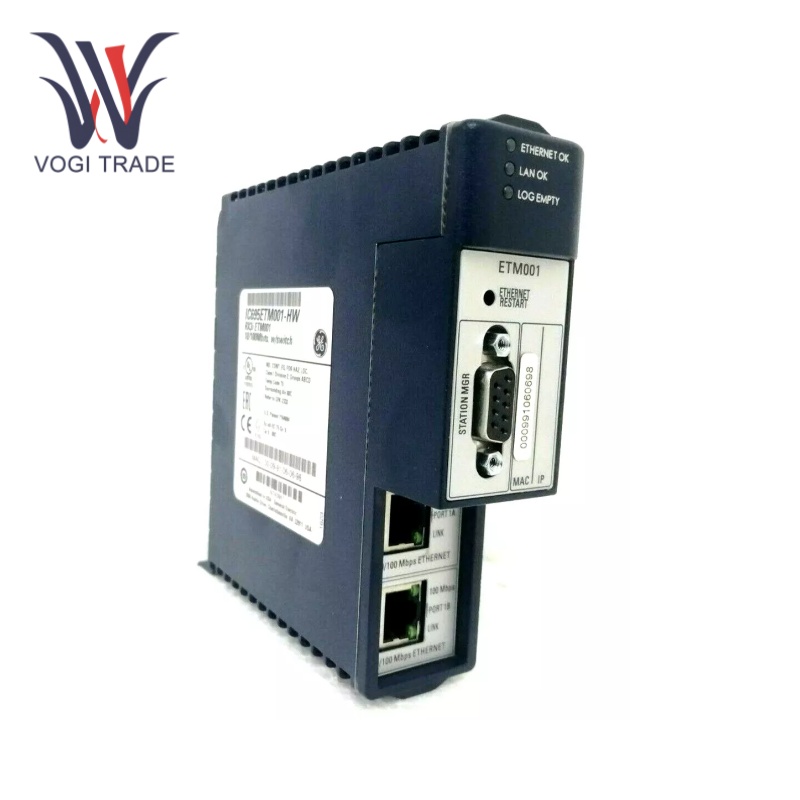

Installation:The GE IC695ETM001 is a single slot–sized module mounted in the RX3i system base. It includes 2 RJ-45 Ethernet connectors and a 9-pin female D-connector for the Station Manager port. Make sure during installation Ethernet network forms tree topology to prevent packet duplication and overload of the network.

Application range

Industrial Automation: GE IC695ETM001 used on the field of Industrial Automation to connect and manage different automation components in a manufacturing plant. It can act as a communication bridge between Programmable Logic Controllers (PLCs), PLC and remote I/O modules, to provide more flexibility and expandability in building control system. Moreover, it allows easy integration of intelligent sensors and actuators that can boost productivity and flexibility on the production line.

Process Control: GE IC695ETM001 is crucial in industries like the chemical, pharmaceutical, and food processing industries for monitoring and controlling key processes. It also can send real-time process data to centralized control systems, so operators can make adjustments when needed. It may, for instance, transmit temperature, pressure and flow rates in a chemical reactor to make sure the reaction occurs within the selected bounds.

Building Automation: GE IC695ETM001 can be used to control and monitor building systems in commercial and residential buildings. For example, it can connect with HVAC (heating, ventilation, and air conditioning) systems, lighting controls, and access control systems. This integration enables the operation of energy efficient equipment, enhances comfort, and provides improved security.

Troubleshooting

LED Indicators: Note that the Ethernet OK, LAN OK, and Log Empty are LED indicators for your reference. LED indicators for port activity and speed provide information about network performance.

Dos And Don'ts: Make sure to follow specific technical guidelines as outlined in the user manual for performance and safety reasons. For example, the 2-5 blink code pattern denotes an error condition.

Station Manager: Use the Station Manager for diagnostic commands and to get detailed information on the status

Firmware Updates: Make sure that the module's firmware is current to prevent known problems and improve performance.
