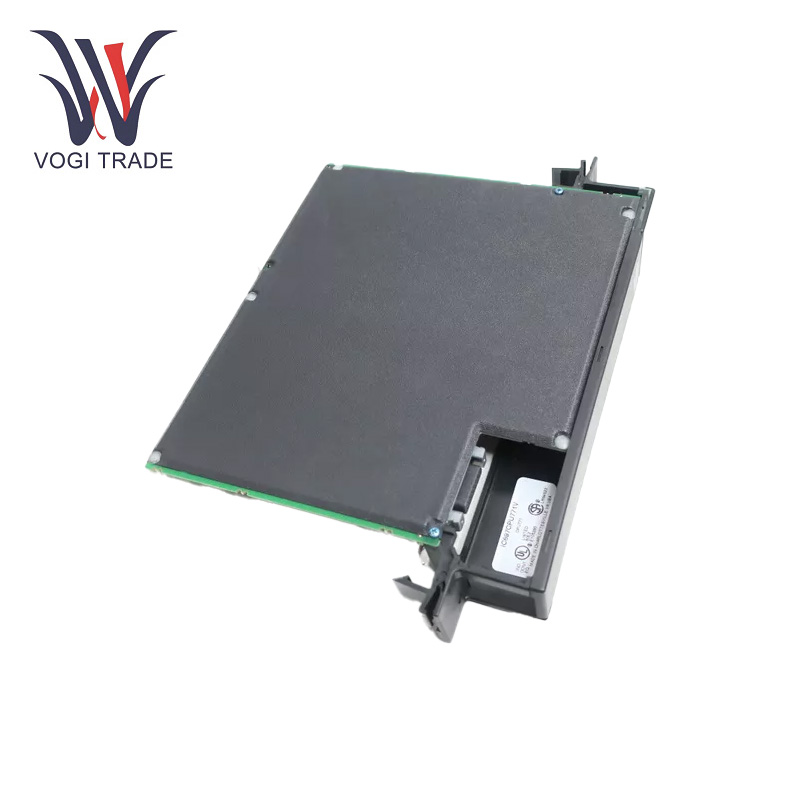

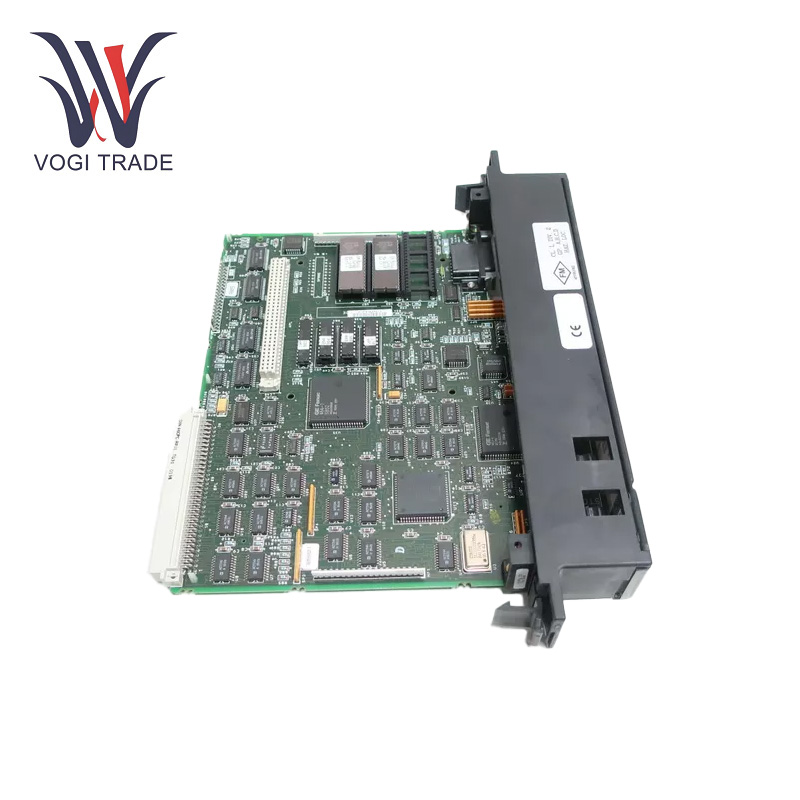

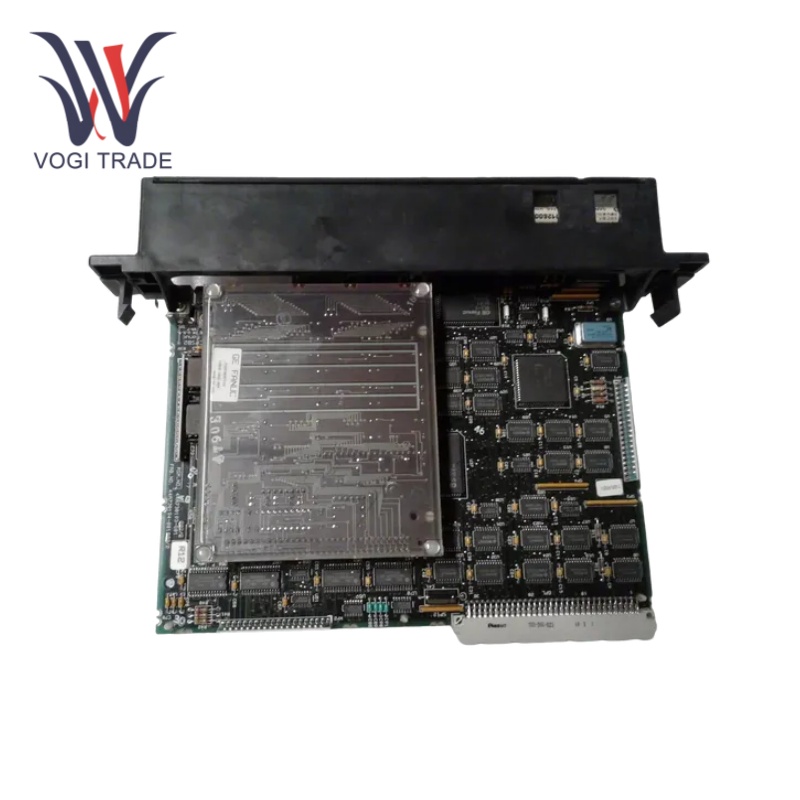

GE IC697CPU771

Operating Parameters

Voltage Requirement:The CPU draws power from the 5V backplane bus of the Series 90-70 rack.

Power Consumption: 1.1 Amps at 5V DC.

Digital I/O Capacity:Supports up to 2,048 (2K) digital I/O points in any combination.

Analog I/O Capacity:Handles up to 8,000 (8K) analog I/O points for process control and monitoring applications.

Environmental Protection:Designed for industrial use, with high resistance to dust and other contaminants in controlled environments.

CMOS Battery Backup: Maintains memory during power loss.

Automatic Fault Diagnostics: Protects against runtime errors and provides status feedback for troubleshooting.

Microprocessor:12 MHz 80C186 for fast and efficient processing.

Memory Requirements:Requires an expansion board for user program and data storage.

Maximum Memory: Up to 512 KB of memory capacity for extensive applications.

Instruction Execution Speed:Executes Boolean logic instructions in 0.4 microseconds, enabling rapid decision-making.

Serial Port: One RS-232 port for programming and communication.Compatible with various smart option modules, including LAN interfaces and coprocessor modules.

Modularity:Compatible with discrete, analog, and bus controller I/O modules, allowing flexible system design.

Diagnostic LEDs:Provides visual status of the module, including power and operational states.

Product Features

Highly communication capabilities: Built with multiple communication ports, such as Ethernet and serial ports including RS232/RS485. This is why it can seamlessly interface with other devices across the industrial network, facilitating data exchange and coordinated control. GE IC697CPU771 can interact with PLCs, HMIs, and other intelligent devices.

Flexible Programming: Works with hundreds of programming languages, it can adjust to multiple application needs. Ladder logic, structured text or function block diagrams can be used by engineers to create custom control programs. This allows users to both configure complex automation strategies.

Diagnostic and Monitoring Functions: Integrated diagnostic tools constantly monitor the health of the unit. GE IC697CPU771 can also detect faults such as overheating, memory, and communication faults. Another common feature is LED indicator lights that tell you visually what is happening in the operation — and these are very helpful in diagnosing most problems.

Installation

Preparation:Switch the control switch on the CPU to the three position control set to 'STOP'

Memory expansion board: Add the memory expansion board to the CPU that provides the user enough storage space for the user program and data.

Battery Installation:nsert the CMOS battery into one of the designated battery slots to keep memory during power loss.

Mounting:Insert CPU module in slot one of the PLC rack, making sure it is securely connected.

Power-Up:Restore power to the rack.

Application Range

Manufacturing Sector:A critical player in automated production lines in factories. GE IC697CPU771 operates equipment, including conveyor belts, robotic arms and machining centers. It increase productivity and quality control by coordinating the movements of these devices.

Process Control: Process management in complex processes in Chemical, Pharmaceutical, and Food Processing. GE IC697CPU771 controls temperature, pressure, flow rates, and other key parameters. It is to make sure that the production process remains consistent and safe.

Power Generation and Distribution: In power plants, GE IC697CPU771 is used to control generators, switchgear, and distribution systems. It also helps the power remain stable and reconnected to the grid reliably to provide maximum protection against dropping out of power or uneven fluctuations.

Troubleshooting

Startup Issues: the module does not start up, check the power supply connections first. Check for correct voltage, and whether there are any loose wires Check the fuse where applicable. Assuming the power supply is good, next check the bootloader and firmware versions. An incorrect version can sometimes lead to startup failures.

Communication Failures: The first step to take in caseof communication failures is to check cable connections. Check that they are plugged in tightly and not broken. Run communication ports diagnostics software. If the ports look good, check the network settings. Mismatched IP addresses, subnet masks or gateway can prevent communication.

Program Errors: This is due to programming errors inactive, meaning if the module is not form well during operation. Use the debugging tools given to follow the program path. Look out for wrong logic, wrong values assignment, memory access violations etc. Most of the time, fixing these errors fixes the abnormal behavior.
