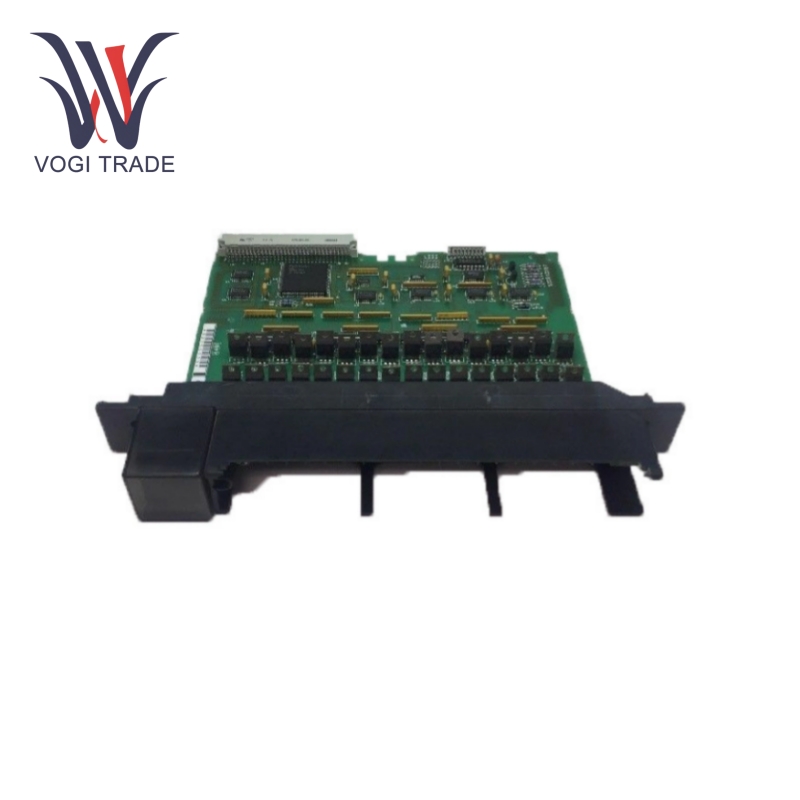

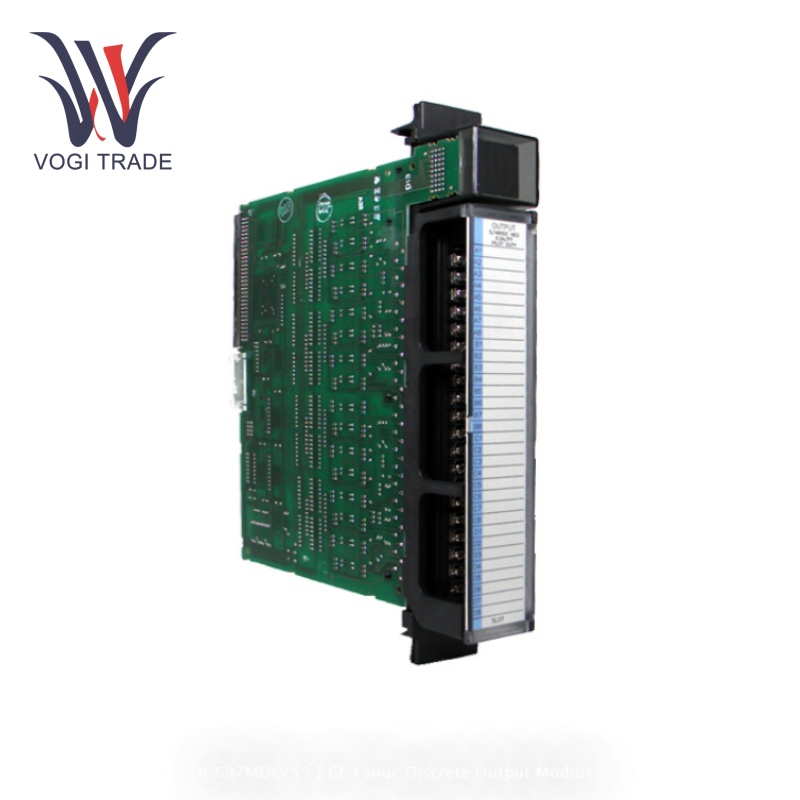

GE IC697MDL753

Usage Parameters

Rated Voltage: The rated voltage of GE IC697MDL753 is 5 volts or between 10-60 volts. Therefore, it has a voltage rating that can flexibly meet the different power supply requirements of different industrial automation systems and fields.

Number of Outputs: GE IC697MDL753 has two groups of isolated thirty-two output points, each group of sixteen points. This configuration allows more flexible control and connection to different external devices.

Starting from 5 VDC, the output current of each point is 16 mA; when it is 10-60 VDC, each point can provide 0.5 amps of output, up to 4 amps per group. This ensures that different loads can be carried out with different current amounts.

Required Current: The module itself requires 0.25 amps of current; this parameter must be considered when designing the power supply of the entire system.

Product Function

Signal Output: 32-point output module, output digital signals, control external devices such as relays, solenoid valves, indicator lights, etc. The negative logic output design conforms to the common control logic of such modules in industrial control systems, making it easy to interface with other components.

Isolated output: Two sets of isolated output points can effectively prevent circuits from interfering with each other, improving the reliability and stability of the control system. This isolation function is essential in complex industrial installations that house multiple electrical appliances and are subject to strong electromagnetic interference.

Wide voltage adaptability: Allows it to operate at 5 V DC and 10 to 60 V DC, which means it can be incorporated into control circuits of various voltage levels; design complexity and system costs are greatly reduced, and the flexibility of system upgrades and expansions is also improved.

TTL level compatibility: The circuit of the device operates at TTL level, so it can directly interface with other TTL-compatible digital circuits or devices for simpler input/output connections and concise signal processing.

Application areas

Industrial automation: GE IC697MDL753 is widely used in various applications of industrial automation systems such as assembly lines, material handling systems, and robot control systems. It accepts commands and responds through the functions of different actuators controlled by PLC, thereby automating the production process.

Process control: In process industries such as chemical, pharmaceutical and food processing, GE IC697MDL753 can control valves, pumps and motors to regulate the flow, temperature and pressure of materials or fluids, thereby providing stability and production quality.

Building automation: Applied to control lighting, air conditioning, ventilation and other equipment in building management systems, so that intelligent control of building environments can be achieved according to different schedules, occupancy conditions and environmental parameters, thereby improving energy efficiency and user comfort.

Power distribution and control: Using the power distribution system to control power equipment such as circuit breakers and contactors can realize remote control and protection functions of the power grid and improve the reliability and safety of power supply.
