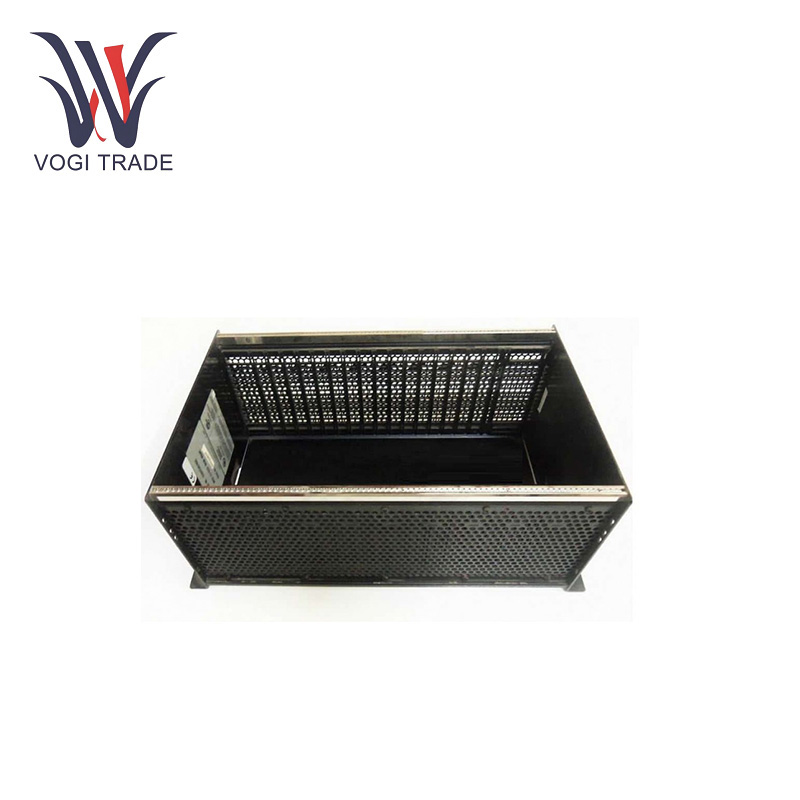

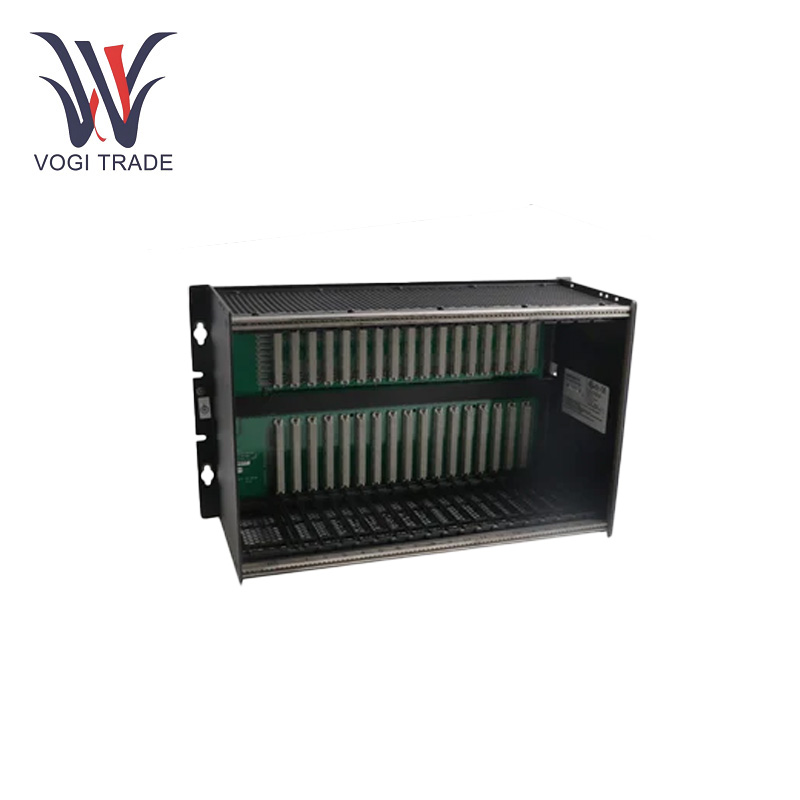

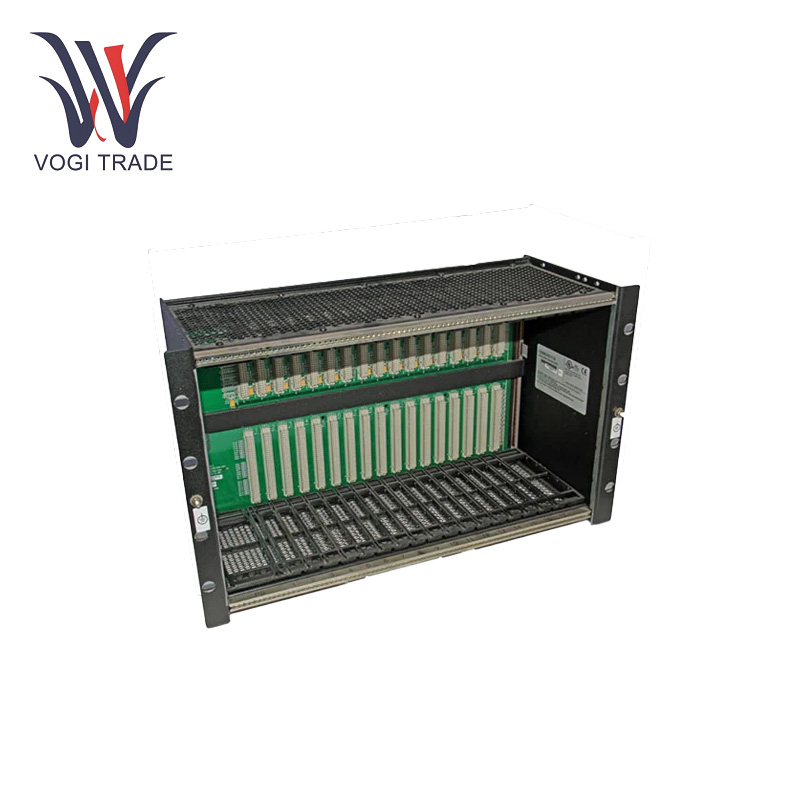

GE IC698CHS009

1. Technical Parameter

Operating Voltage: 5 - 12 volts DC.

Power Supply: Supports 100 watts and 350 watts power supplies.

Current Rating: With 100 watts power supply, 20 amps at 5 volts DC, 1 amp at -12 volts DC; with 350 watts power supply, 60 amps at 5 volts DC, 4 amps at -12 volts DC.

I/O Capacity: 9 I/O slots.

Slot Specifications: Slots 1 - 8 are 20mm wide, support only single - slot modules; slot 9 is 40.6mm wide, supports double - width modules; slot 0 is 61mm wide, for power module.

Software Configuration: Supports software configuration, I/O addressing can be done through programming/configuration software, no dip switches or jumpers needed.

2. Function Features

Industry-Defining Process Control Features: GE IC698CHS009 comes equipped with state-of-the-art algorithms that enables highly-accurate regulation of multi-phase industrial operations. For a chemical manufacturing plant, it can keep reactants temperature, pressure, and flow rate incredibly constant, leading to high product quality and less waste.

Various Protocol Support: GE IC698CHS009 enables multi-protocol connectivity including Profibus-DP and Modbus TCP/IP, as well as DeviceNet Working within the automotive assembly line, it can connect with 3rd party Robots, PLCs, and HMIs from other manufacturers to ensure fluid data exchange and coordinated management.

Real-Time Monitoring and Data Logging: With high-resolution sensors and fast sampling rates, GE IC698CHS009 continuously monitors critical parameters in real time while logging data for historical analysis. It logs voltage, current and frequency data, frequently, in a power generation plant. This logged data can be reviewed and analyzed later to optimize performance, predict maintenance needs and trouble shoot issues.

3. Operation Methods

Installation Steps: It is made easy to install. Also included is a standardized mounting bracket that fits nice and tight in the rack. Wiring is made easy by the color-coded and keyed connectors. The first thing one must do with the module once it has been physically installed, is to power it on for it to run an internal diagnostic where it will check if all internal components are working as intended.

Configuration and Programming: Operators use dedicated configuration software to customize the module's settings. Maverick's intuitive graphical user interface (GUI) makes it simple to define input/output mappings, alarm thresholds, and control loop parameters. For example, technicians can define the temperature range for a heating process in a food processing plant and program the alarm module to trigger an alarm if the temperature deviates from this range.

Day-to-Day Operation: Once configured, GE IC698CHS009 operates autonomously. Operators can monitor its status and process data through the connected HMI. In a textile mill, they can view the speed and tension of spinning machines in real-time. To make adjustments, commands can be sent through the HMI, like changing the rotational speed of a motor to adapt to different fabric thicknesses.

4. Application Ranges

Oil and Gas Sector: In refineries, it controls the distillation process by accurately regulating the flow of crude oil and monitoring the temperature and pressure at various stages. GE IC698CHS009 also controls the safety systems and can activate alarms and initiate shutdowns when dangerous conditions are detected.

Pharmaceutical Manufacturing: It is very useful in drug production. It plays an important role in ensuring the potency and purity of medicines by precisely controlling the mixing, drying, and encapsulation processes. It also tracks environmental conditions in clean rooms that are designed to meet strict quality standards.

Semiconductor Fabrication: Deploys it in chip manufacturing plants which coordinate the complex sequence of lithography, etching, and doping processes. To avoid defects in the semiconductor wafers, GE IC698CHS009 is used to monitor the temperature, humidity, and chemical concentrations in cleanrooms to optimize production yields.
