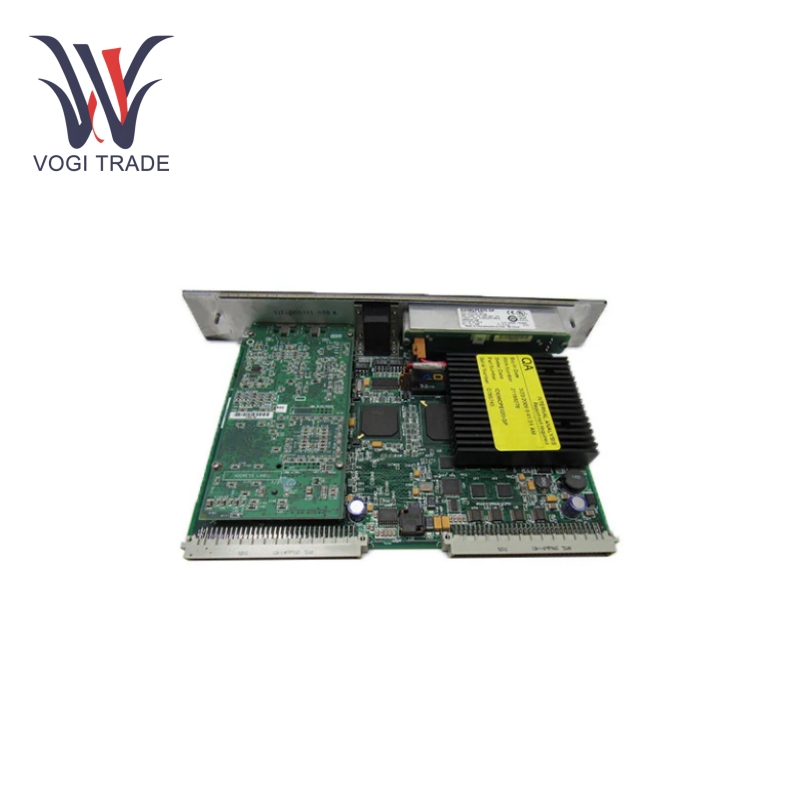

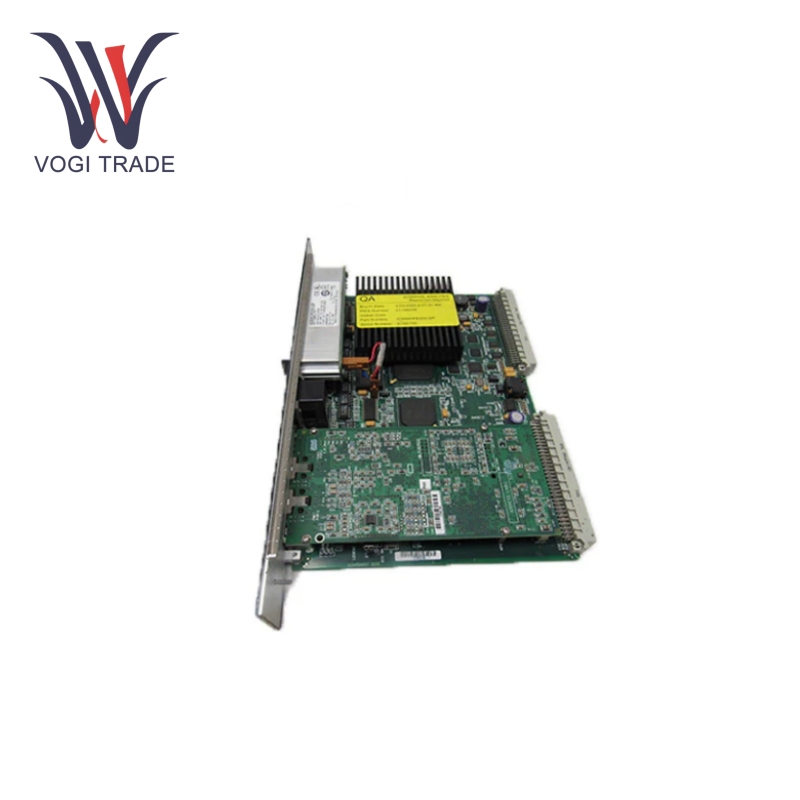

GE IC698CPE020

Product Parameters

Processor: GE IC698CPE020 is the CPU of the PACSystem RX7i series. It is equipped with a very powerful processor that can run at a speed of 700 MHz, so it can handle complex control and computing tasks very efficiently and provide real-time response when deployed in industrial control systems. Memory: Main memory: 10 MB of battery-powered user memory and 10 MB of non-volatile flash user memory, which is sufficient to perform the functions of saving programs, configuration data and history. In addition to this, the control circuit is also equipped with configurable data and program memory, which together meet the needs of different applications.

Communication Ports: Other communication ports include three serial (RS-232, RS-485) ports and up to two Ethernet ports. For Ethernet connection, a Category 5 shielded or unshielded RJ-45 twisted pair cable and TCP/IP configuration are required. The third serial port is used as a station manager port to communicate with all other devices and systems.

Power supply: The GE IC698CPE020 operates in a power supply range of 50–300 VDC/40–265 VAC, providing flexible power supply options to suit use in different industrial environments.

Product Features

Specific Function Programming and Control: The GE IC698CPE020 supports ladder diagram, C, structured text, and function block diagram programming, enabling users to write custom control logic based on specific application needs. Up to 512 program blocks with a size of up to 128 KB can be supported, allowing for the construction of more complex control strategies.

Data Monitoring and Management: Support for Data Monitoring over the Network: Support for up to 16 Web and FTP server connections enables control systems to be remotely monitored and managed, providing truly reliable access to critical data and system maintenance and troubleshooting.

Symbol Variable Support: Supports automatically located symbol variables, which can use up to the total amount of user memory.

Test and Edit Mode: Test Edit Mode makes it easy to test modifications to a running program, reducing downtime during development and debugging.

Compatibility: Compatible with 90-70 series discrete and analog I/O, communication and other modules and all VME modules supported by the 90-70 series, ensuring seamless transformation with existing systems and equipment.

Application areas

Industrial automation: GE IC698CPE020 is widely used in automated industrial bases, CNC machinery, metallurgy, oil and gas, petrochemicals, chemical manufacturing, papermaking, textile printing and dyeing, machinery manufacturing, electronic manufacturing, etc. It can evaluate and control the equipment operation process, operation history, and quality evaluation to improve work processes and product quality.

Power industry: used for power generation control, substation automation, and power distribution management in power plants to ensure stable operation of generator sets, monitor power grid parameters, and realize intelligent control of various protection devices.

Automobile manufacturing: Realize the automation of robotic arms and conveyor belts on automobile production lines, strengthen the quality monitoring of automobile parts during the production process, and ensure stable and reliable quality.

Building automation: Applied to building management systems to control and monitor all building facilities such as HVAC systems, lighting systems, and access control systems to achieve energy-saving intelligent building management.

Water treatment and environmental protection: In water treatment plants, water quality parameters are monitored, the operation of water treatment equipment is controlled, and the quality of treated water is ensured to meet environmental protection requirements, playing an important role in environmental monitoring and pollution control systems.
