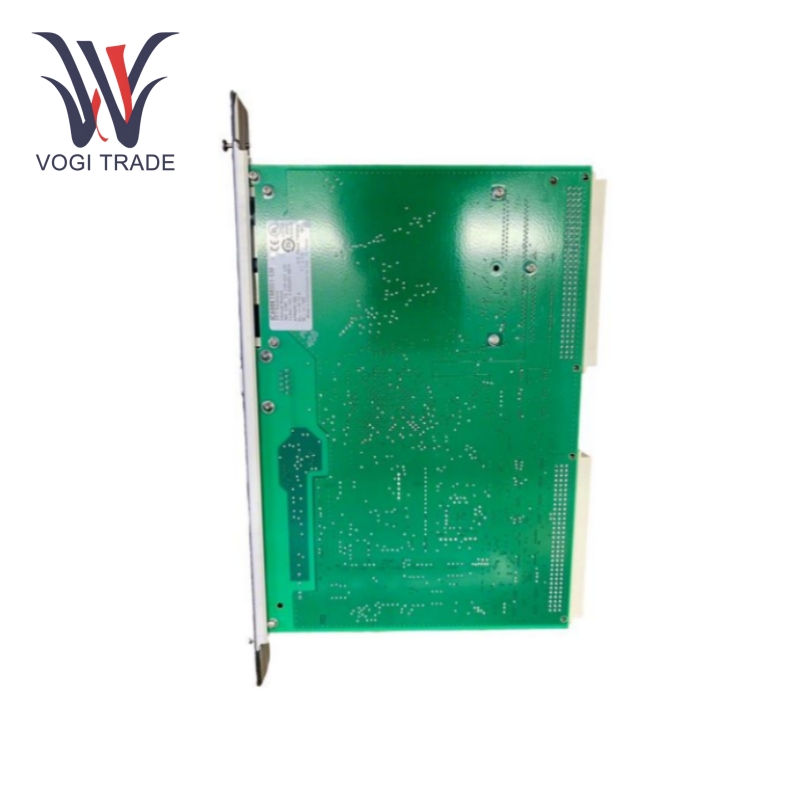

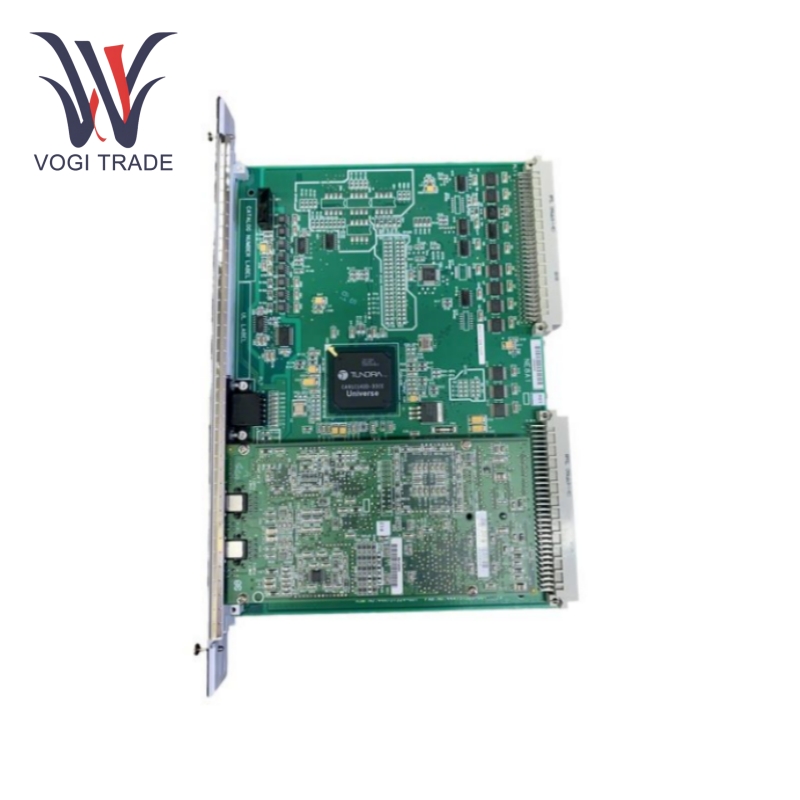

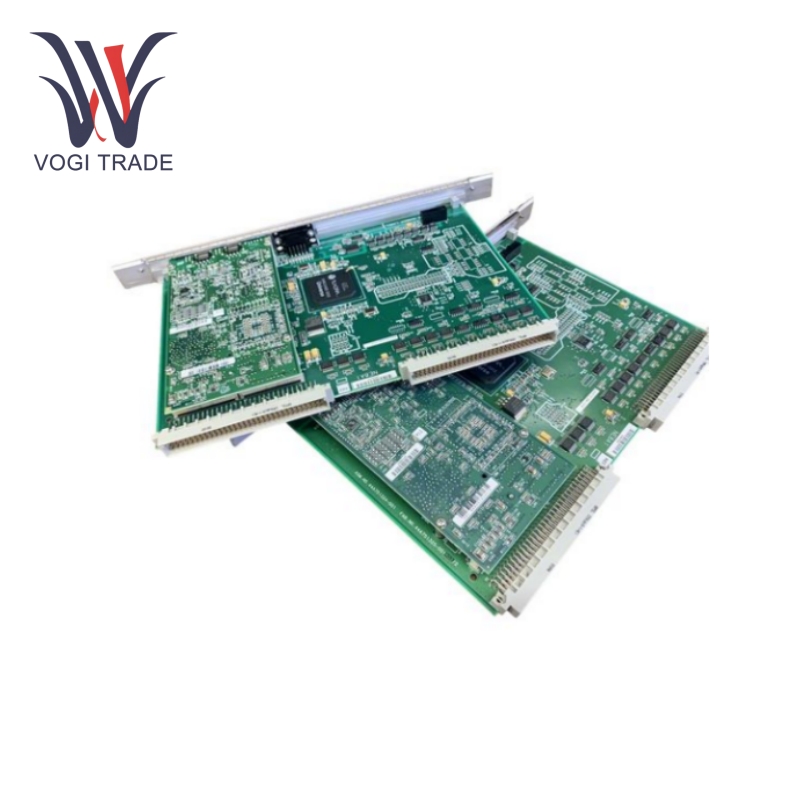

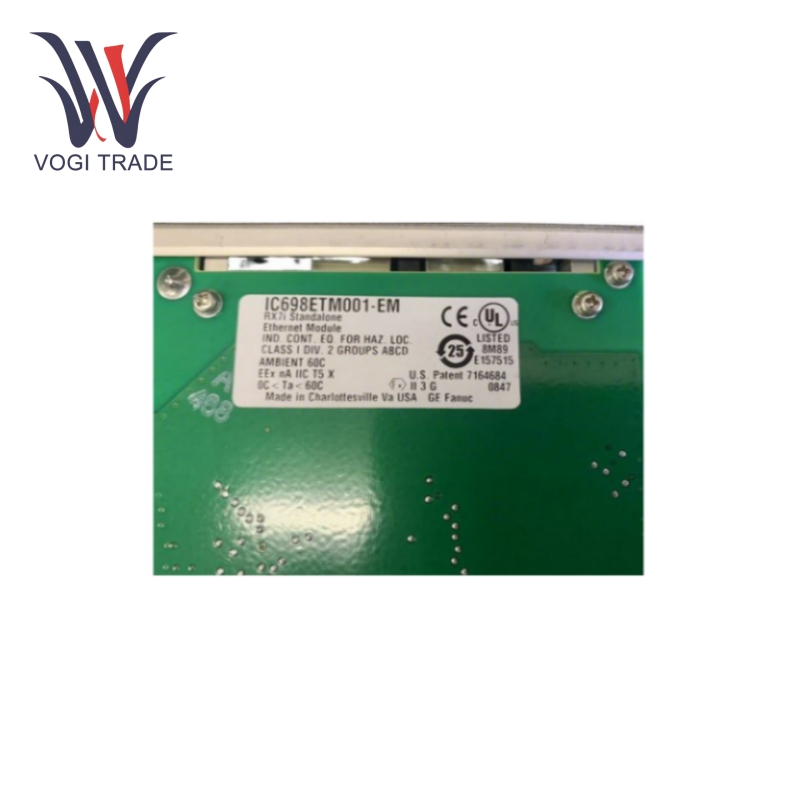

GE IC698ETM001

Operating Parameters

Voltage: The GE IC698ETM001 Jimena operates at 5 volts DC. Current: 1.2A current, 1.5A maximum current.

Operating Temperature: The operating temperature range is between 0 and 60 degrees Celsius to support industrial applications.

Ethernet Ports: Two 10BaseT/100BaseTX Ethernet ports are provided, which are auto-sensing and operate at a transmission speed of 10/100 Mbps with RJ-45 connectors (shielded 8-pin female). The ports allow daisy-chaining, so ring, star, or linear topologies can be implemented. The IP addressing implemented can be unique or redundant.

Serial Ports: One RS-232 DCE port (station manager port) has a transmission speed between 1200 and 115,200 bps and is used for configuration purposes.

Processor Speed: The module features a 200 MHz Ethernet processor speed, ensuring efficient data processing and communication.

Product Features

Ethernet Communications: Two Ethernet ports ensure high-performance Ethernet communications between the RX7i control system and other devices on the network. The TCP/IP communication services provided include SRTP, SRTP Client, Modbus/TCP Server, and Modbus/TCP Client for communication with other controllers, remote I/O devices, human-machine interface (HMI) systems, and third-party software applications.

Site Management and Diagnostics: The GE IC698ETM001 is equipped with fairly comprehensive site management and diagnostic tools. Built-in LEDs include "Module Normal", "LAN Online", "Status 100", "Link P1", and "Link P2" to indicate the status of module operation and communication in real time. These features help operators quickly identify and repair existing problems.

Configuration and Programming: GE IC698ETM001 provides complete configuration and programming services that can be set up according to various applications. The communication protocols are stored in flash memory and can be easily uploaded later through the CPU serial port, providing flexibility for future upgrades.

Data exchange and synchronization: It allows regular data exchange and EGD Class 2 operation, ensuring reliable and accurate data transmission. In addition, the time can be synchronized with an SNTP time server on the Ethernet network, thus guaranteeing precise time and coordinated operation of the control system.

Scope of application

Industrial automation: The GE IC698ETM001 Jimena is widely used in the manufacturing industry for monitoring and controlling production lines, machinery and automated workstations. It allows the effective integration of different components in the automation system, improving production efficiency and product quality.

Process control: In the chemical, petroleum, food and beverage industries, the module monitors and controls process production. It ensures process stability and safety through real-time data acquisition and its communication between sensors, controllers and actuators.

Power industry: In the power sector, GE IC698ETM001 is currently used for monitoring and control of power distribution, generation and substation equipment. Reliable Ethernet communication enables efficient management and control of power systems, thereby improving the stability and reliability of the power grid.

Building management system: For building automation, the GE IC698ETM001 can be used to integrate various systems in the building: HVAC (heating, ventilation and air conditioning), lighting and security systems. This integration provides a central control and monitoring facility, improving energy efficiency and tenant comfort.

Water and Wastewater Treatment : At a water treatment plant or wastewater treatment plant, GE IC698ETM001 assists in monitoring and controlling water quality parameters, flow rates, and equipment status. It ensures that the treatment process operates optimally and provides clean and safe water.

Traffic Control Systems : The GE IC698ETM001 can be effectively used in traffic management for controlling traffic lights, monitoring traffic flow, and managing communications between various traffic control devices. This helps traffic systems function properly and reduce congestion.
