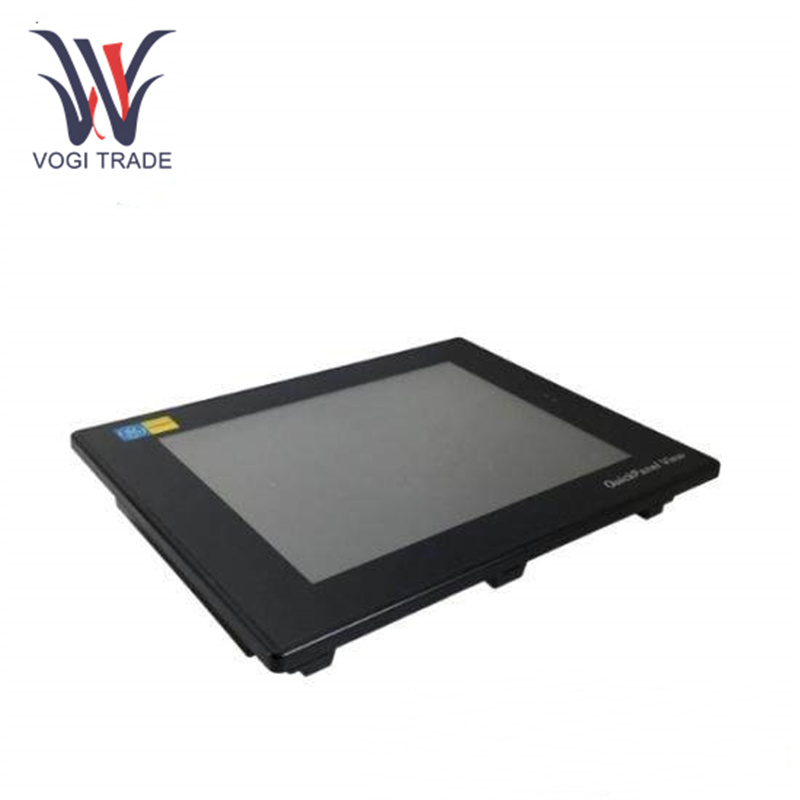

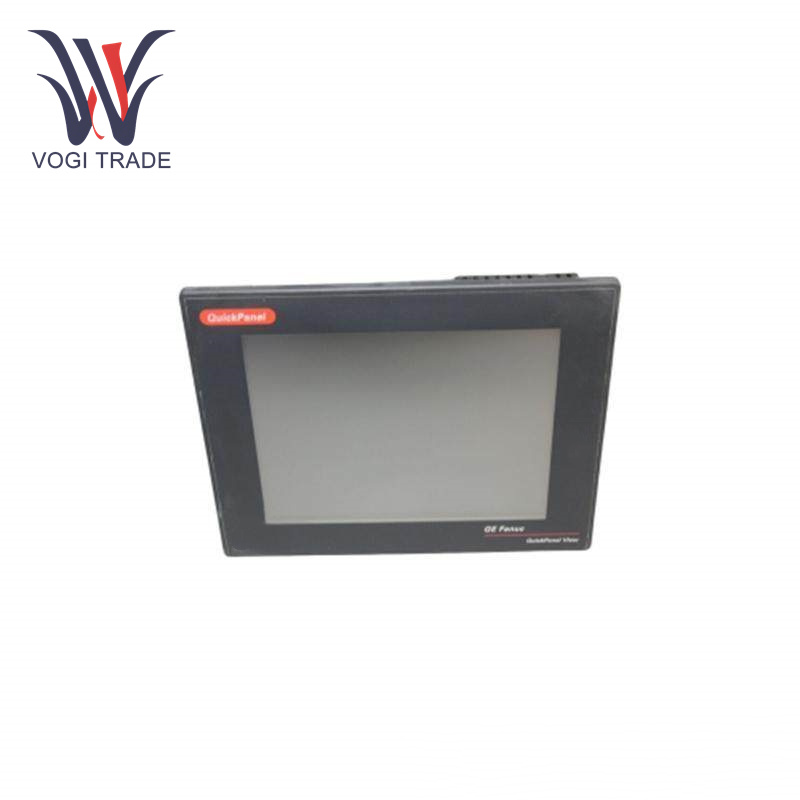

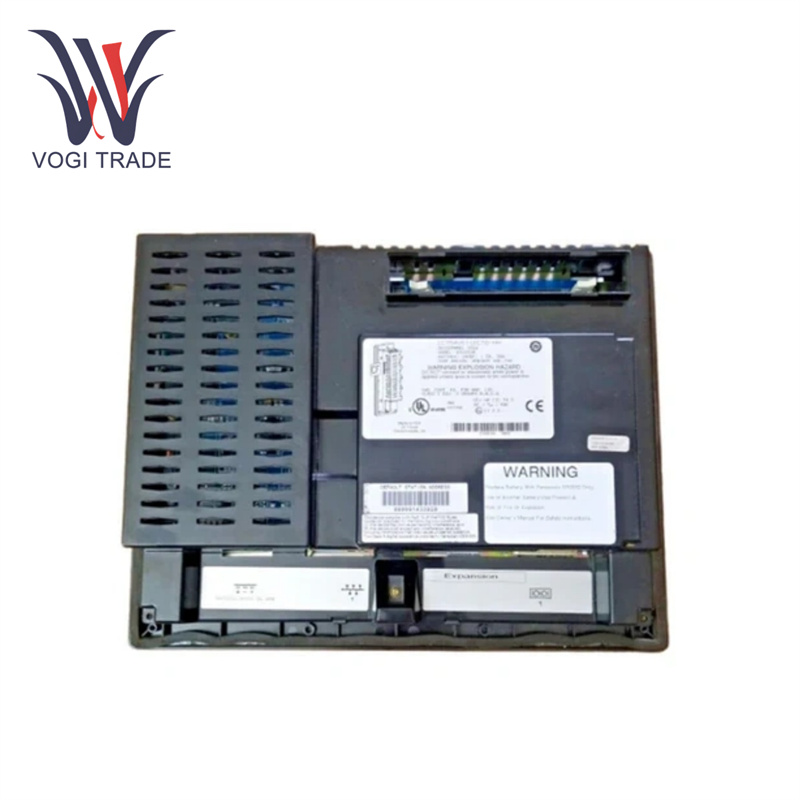

Brand: GE Description: Operator Interface Terminal ALL-in-one Mircrocomputer Condition: Brand New Certificate：COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 5 Payment Term: T/T Shipping Port: ShenZhen By integrating control and monitoring functionalities in one device, GE IC754VGL12CTD reduces complexity, enhances productivity, and ensures reliable operations in even the most demanding environments.
|
Manufacture |
GE |
|
Model Number |
IC754VGL12CTD |
|
Ordering Number |
IC754VGL12CTD |
|
Catalog |
IC754 |
|
Country Of Origin |
USA |
|
HS CODE |
8537101190 |
|
Dimension |
12cm*16cm*16cm |
|
Packing Dimension |
14cm*18cm*18cm |
|
Weight |
1kg |
Technical Parameter
Input Voltage: 12–30 V DC.
Power Consumption: 20 W.
Operating Temperature: 0°C to 60°C.
Storage Temperature: -20°C to 70°C.
Humidity: 5% to 95% non-condensing.
Shock Resistance: 15g for 11 ms.
Vibration Resistance: 5-500 Hz at 2g.
RAM: 512 MB DDR3
Storage: 512 MB Flash memory .
Function Features
High - Precision Voltage Regulation： This allows GE IC754VGL12CTD to keep the output voltage steady within a small range above or below the nominal voltage. This is particularly important for applications requiring voltage stability, including sensitive electronic devices and industrial control systems.
Over - current and Over - temperature Assault: GE IC754VGL12CTD is able to detect and respond to Over - current and Over - temperature conditions. If the current draw exceeds the limit or the temperature rises above a permissible level, the device will automatically take action to protect itself and the circuitry connected to it from damage due to electrical faults or overheating.
Low – Power Consumption: GE IC754VGL12CTD is engineered with power - saving technology. It runs with a comparatively low power usage, not only means reducing power costs, but also makes it best fit for battery got devices where battery life is main activity
Operation Method
Power Connection：Connect the power source to the corresponding terminals of GE IC754VGL12CTD. The input voltage must be within the specified range. Check the positive and negative polarities if it is a DC input.
Output: The load is connected to the output terminals of the device. The load must fall within its rated capability. Once the connections are made, inspect the wiring for any loose wires or incorrect connections.
Application Areas
Industrial Automation: For industrial automation and control systems, GE IC754VGL12CTD can be employed to provide a stable power supply for the motors, sensors and programmable logic controllers to enable their smooth functioning.
Telecommunications: Telecommunications systems such as base stations, routers, and switches need a reliable power source. Due to the high - precision voltage regulation and the protection features of this product, it can be used in such devices.
Consumer Electronics: GE IC754VGL12CTD can enhance the battery life and compatibility with various charging sources in battery - powered consumer electronics such as laptops, tablets, and portable chargers, thanks to its low - power usage and broad input voltage spectrum.
