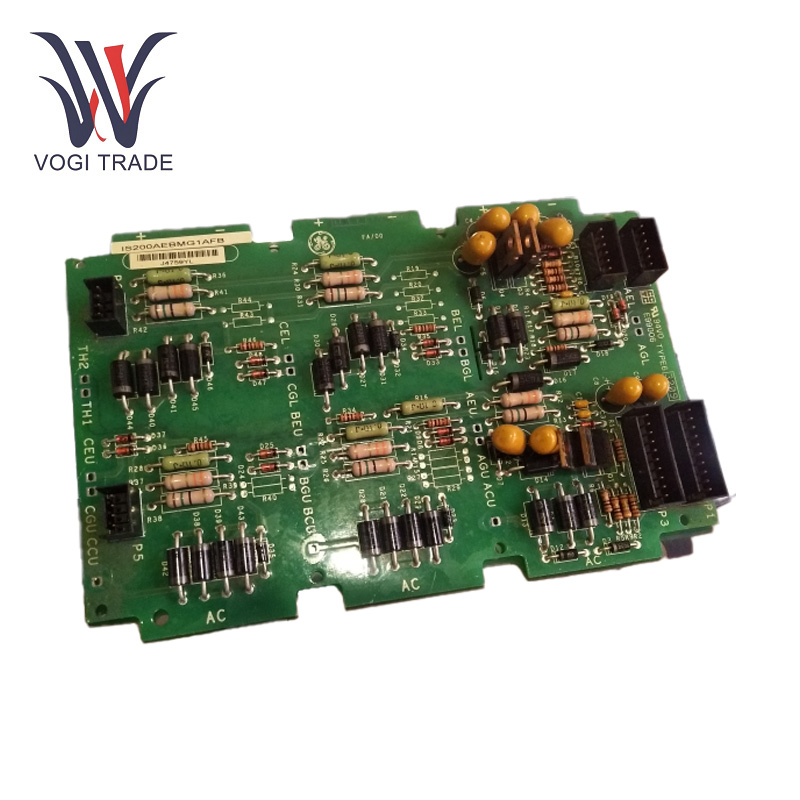

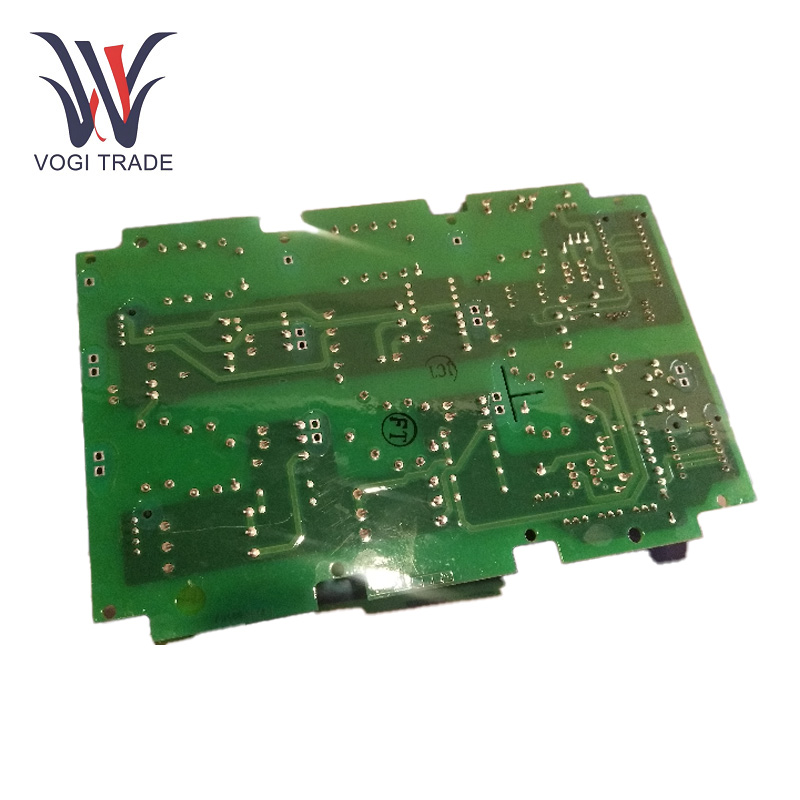

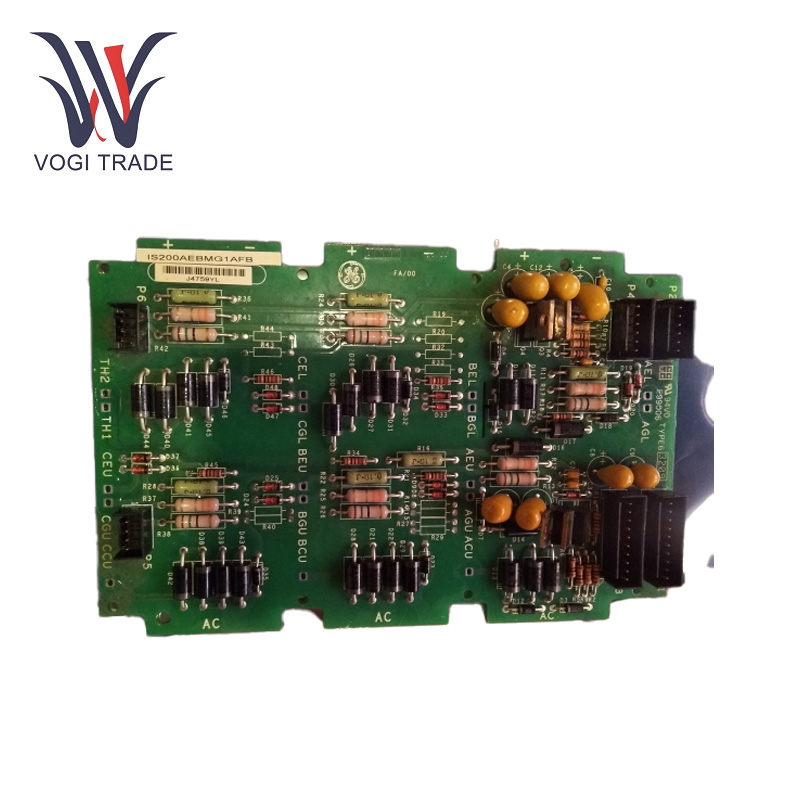

Brand: GE Description: Advanced Engineering Bridge Module Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 5 Payment Term: T/T Shipping Port: ShenZhen GE IS200AEBMG1AFB is a crucial component in the Mark VI turbine control system, which is designed for comprehensive control and management of hydro, steam, and gas industrial turbine systems, offering wide applicability. It also features a unique mounting frame that makes it easy to install in the VME rack system, enhancing its convenience and versatility in practical applications.
|
Manufacture |
GE |
|
Model Number |
IS200AEBMG1AFB |
|
Ordering Number |
IS200AEBMG1AFB |
|
Catalog |
Mark VI |
|
Country Of Origin |
USA |
|
HS CODE |
8479909090 |
|
Dimension |
30cm*20cm*5cm |
|
Packing Dimension |
32cm*22cm*7cm |
|
Weight |
1.2kg |
1. Technical Parameter
Rated Voltage: 24V.
Rated Current: 15A.
Component Count: It consists of 6 vertical plug connectors, 4 transistors, over 40 diodes, over 40 resistors and about 12 capacitors.
PCB Coating: Normal coating.
Assembly Type: Normal assembly.
2. Functional Features
Very Utilizable: GE IS200AEBMG1AFB constitutes a component of the Mark VI turbine control system of GE, qualified for the surveillance and governance of hydro, steam, and industrial turbine systems powered by gas.
Easy-to-Mount Kits: Mounting frame offered is specifically made for the unique rack system pertaining to VME rack system.
High Reliability: Good materials and advanced processes. GE IS200AEBMG1AFB is able to work in harsh industrial environment stability.
Rich Interfaces：Totally 6 vertical plug connectors, more abundant connection interfaces, easy to connect to other devices.
Signal Processing: GE IS200AEBMG1AFB has so many transistors, diodes, resistors, and capacitors, which gives the very powerful signal processing and controlling capabilities.
3. Fault Diagnosis
Communication Failure: Make sure the plug connector is connected properly without loosening, check if the monitoring cable is damaged and check the communication settings of the relevant system.
Power Supply Problem: Check if the input power supply voltage is normal Error. If just judging the voltage is low voltage or high voltage, but need to check the power supply circuit, power supply related equipment.
Indicator Abnormality: The indicator light of GE IS200AEBMG1AFB is unlit or in an abnormal state Open the cover and check for the indicator light is broken,The driving circuit of the indicator light is normal.
4. Application Areas
Oil and chemical industry : The control of the turbine driven equipment such as turbine oil pipeline, gas compressor and so on, better ensure the production process stable operation in oil refining, chemical manufacturing, etc.
Power Industry：GE IS200AEBMG1AFB is used as the control system of thermal power plant, hydropower plant and gas-power plant.
Metallurgical Industry: Control of the turbine equipment of the air separation unit in metallurgical production to provide stable gas supply of smelting process
Marine Industry: GE IS200AEBMG1AFB can be used in the control system of marine turbines to control the propulsion system and power generation system of ships and then improve the reliability and efficiency of the ships.
