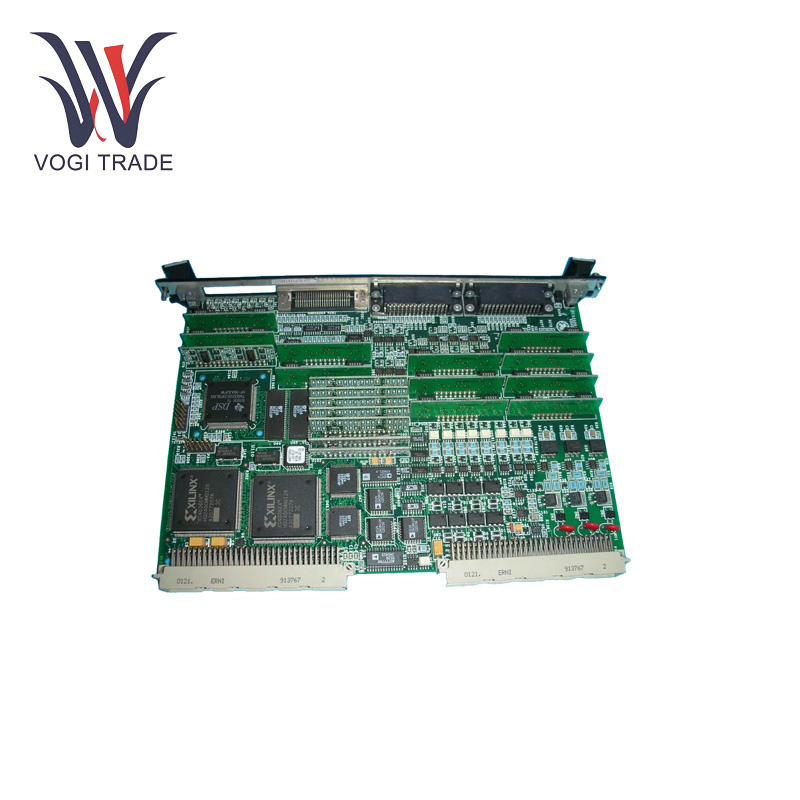

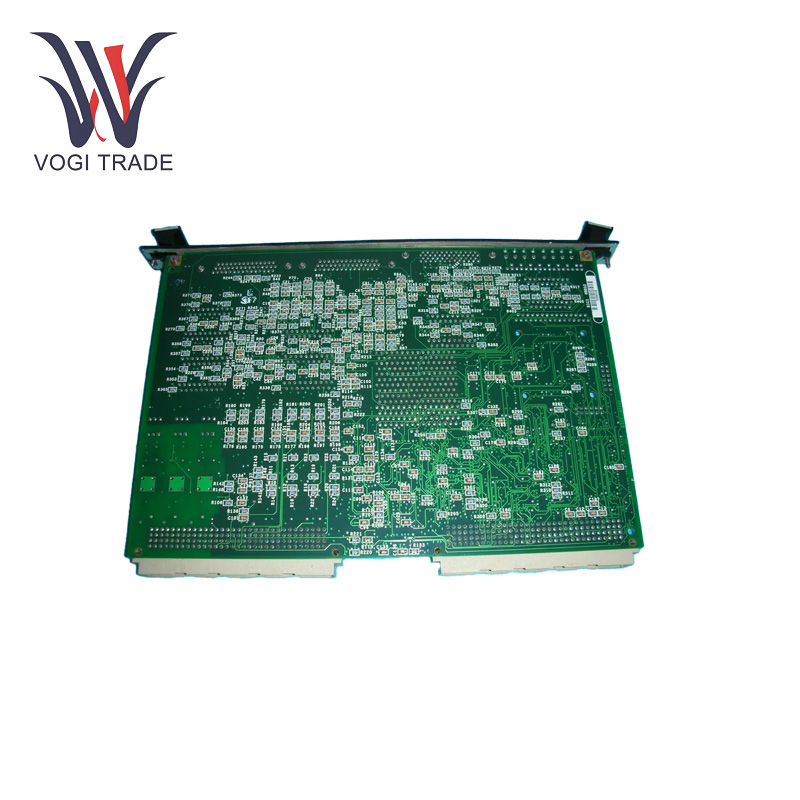

GE IS200BICIH1ADB

Operation Parameters

Nominal Power Supply: 24 V DC

Operating Voltage Range: 18 V to 32 V DC

Current Consumption: Typically 0.5 A at 24 V DC (varies based on configuration)

Input and Output Types: The IS200BICIH1ADB supports both serial and Ethernet-based communication protocols.

Serial Communication:RS-232 and RS-485 communication ports.

Ethernet Communication:Supports high-speed Ethernet communication for connecting to modern systems that require real-time data exchange.Communication standards supported include Modbus TCP, Profinet, and Ethernet/IP.

Ingress Protection (IP) Rating: Typically IP20 (suitable for indoor use, installed in enclosures or control panels)

Product Features

Interface Control: GE Mark VI Turbine Control Interface Control is an interface bridge controller for the GE Mark VI turbine control system. The field cable connectors involve PF BK1, PF BK2, and PSRC for receiving and transmitting feedback signals and gate control signals from different boards.

Signal Processing:GE IS200BICIH1ADB has analog and digital inputs and outputs, and can process and convert different types of signals. The DSPX-1000 features a digital signal processor that can be a coprocessor to a nearby DSPX board, two FPGAs used for logic functions, PWM timers, and control and status registers.

Sub-board Integration: GE IS200BICIH1ADB has nineteen individual daughterboards soldered to its surface; including eight DVA A dual voltage controlled oscillator modules and eleven analog comparators. The DVA A board, for example, gives two VCO circuits and a pulse-train compatible output, while the DVA B board provides 2-pole VCF and VCAs.

Installation

Board Mount: GE IS200BICIH1ADB is a board mount option designed for installation into an Innovation Series board rack. P1 and P2 backplane connectors) which interfaces to the CABP control assembly backplane board.

Connector Installation: The PF BK1 connector, PF BK2 connector, PSRC connector and other related connectors are installed into the corresponding slots or ports in accordance with the marks and instructions.

Cable Connection: Use input and output signal cables to connect the device terminal according to wiring diagram and connection instructions in the product manual. Sufficient cables ensure that the connections are accurate so that you do not signal interference and disconnection.

Application Range

Gas and Steam Turbine Control:GE IS200BICIH1ADB is a fundamental part of GE Mark VI turbine control system that is design explicitly to control, protect, and monitor industrial gas and steam turbine systems.

Power Generation Industry: In the power generation industry, GE IS200BICIH1ADB is widely used in gas and steam turbine power plants to ensure the safe and efficient operation of turbines and the stability of power generation.

Troubleshooting

No Communications or Data Lost:Make-sure all wiring connections and the serial cables and Ethernet cables are plugged in securely. Ensure that the communication protocol settings (IP address, baud rate, etc.) are properly configured. Perform network diagnostics or communication checks.

Faulty Data Transmission:Look into Serial Communication Ports and/or Ethernet Ports Degradation All cables need to be properly shielded to eliminate EMI. If needed, change the board configurations using ToolboxST software.

Module Not Powering On: Verify that the power supply voltage is within the required range (18 V to 32 V DC). Check wiring and connectors for damage or loose connections. Install new fuses or components if they are broken.

Diagnostic Alerts: Analyze faults or error codes using built-in diagnostic tools. If there are hardware issues, replace hardware components or cables as needed. Check that the communication settings match the way the network was set up.
