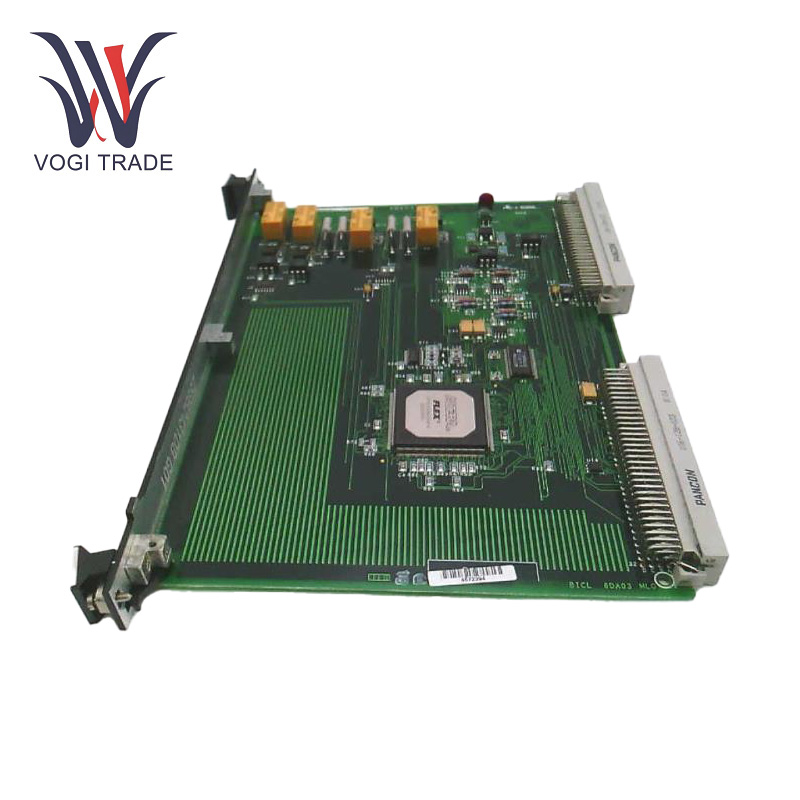

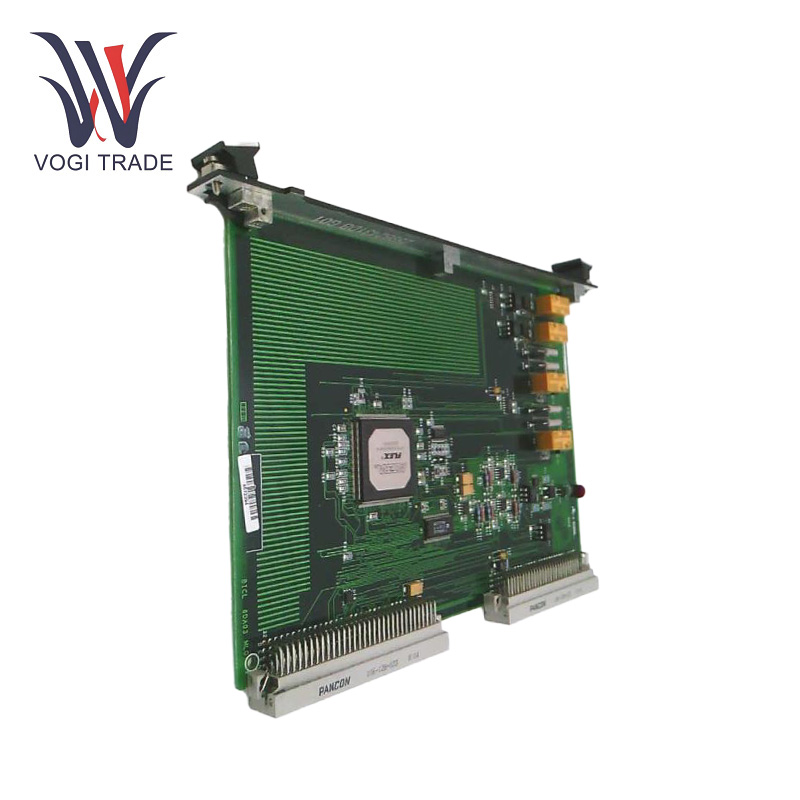

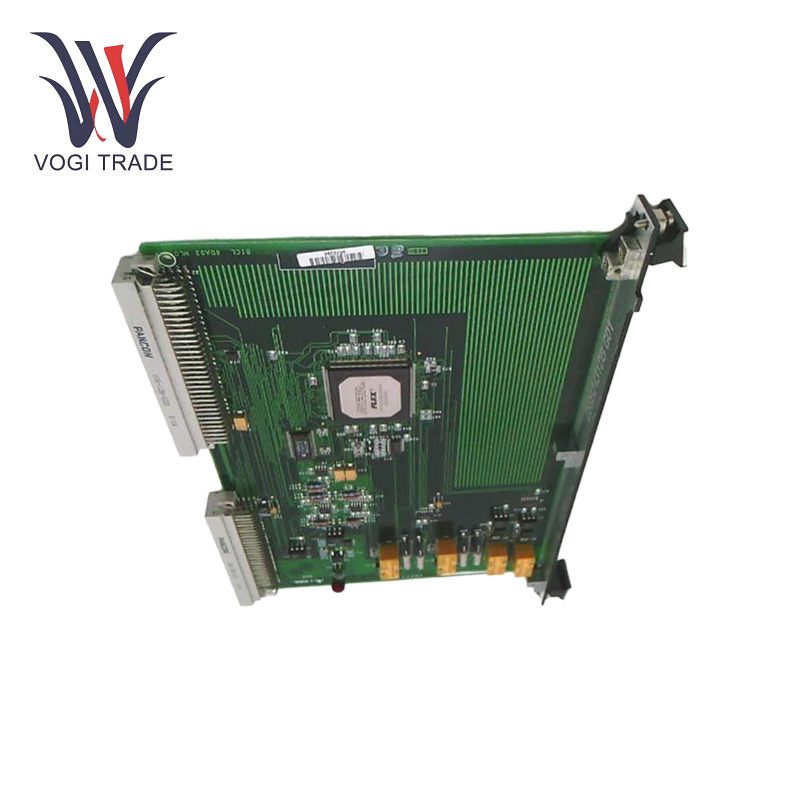

Brand: GE Description: IGBT Drive/Source Bridge Interface Board Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 10 Payment Term: T/T Shipping Port: ShenZhen GE IS200BICLH1AFF is designed to facilitate communication between the main control board and the Bridge Personality Interface boards (BPIA, BPIB, or SCNV) in an efficient and lasting manner. It supports four RTD sensor inputs for ambient temperature sensing, fan PWM speed control interface, and an optional serial 1024-bit memory device.
|
Manufacture |
GE |
|
Model Number |
IS200BICLH1AFF |
|
Ordering Number |
IS200BICLH1AFF |
|
Catalog |
Mark VI |
|
Country Of Origin |
USA |
|
HS CODE |
8479909090 |
|
Dimension |
40cm*35cm*8cm |
|
Packing Dimension |
42cm*37cm*10cm |
|
Weight |
1.2kg |
Technical Parameters
Connectors: Has P1 and P2 connectors for connecting to VME-type racks.
Relays: 4 relays.
RTDs: 4 RTDs for temperature sensing.
Other components: Contains multiple integrated circuits, transistors, capacitors, and resistors.
Protection: Circuit boards are conformally coated to protect against moisture, dust, and chemical corrosion.
Functional Features
Interface Function: GE IS200BICLH1AFF serves as an IGBT drive/source bridge interface board, providing an interface between the Mark VI series drive main control PCB and multiple bridge personality interface PCB components to achieve signal transmission and interaction.
Monitoring Function: GE IS200BICLH1AFF can monitor ambient temperature and bridge temperature. It can give you feedback on temperature as it is operating which can help catch potential overheating issues before they happen and keep the system running safely.
Speed Control: Pulse width modulation speed control is supported. The pulse width adjustment can accurately control the running speed of the equipment and solve the speed requirement of related factors in different application scenarios.
Fault Display: GE IS200BICLH1AFF can be used as the interface of panel and system fault strings, integrating and sending out fault information, helping the technician to rapidly locate and troubleshoot faults.
Application Areas
Power Industry: In the control systems of gas turbines or steam turbines in power plants, it is used to control and monitor the excitation system and speed regulation system of generators; thus, the stable and efficient production of electric power; as well as ensure the reliable operation of the power grid.
Industrial Automation: As in various industrial production lines such as automobile manufacturing, steel processing, and chemical production, GE IS200BICLH1AFF is used to drive and control equipment such as motors, pumps, and fans, realizing precise speed regulation, start-stop control and fault monitoring of equipment, and improving the automation level and production efficiency of the production process.
Energy management system: In the field of energy management, GE IS200BICLH1AFF can be used for the control and monitoring of renewable energy generation equipment such as wind power generation, solar power generation and energy storage system management to achieve the optimal allocation and utilization of energy.
Large Machinery and Equipment: GE IS200BICLH1AFF can drive and control the essential components of larger machines and equipment, such as ships' power systems and mining machines, remains stable during difficult operating conditions, thereby increasing the equipment's reliability and longevity.
