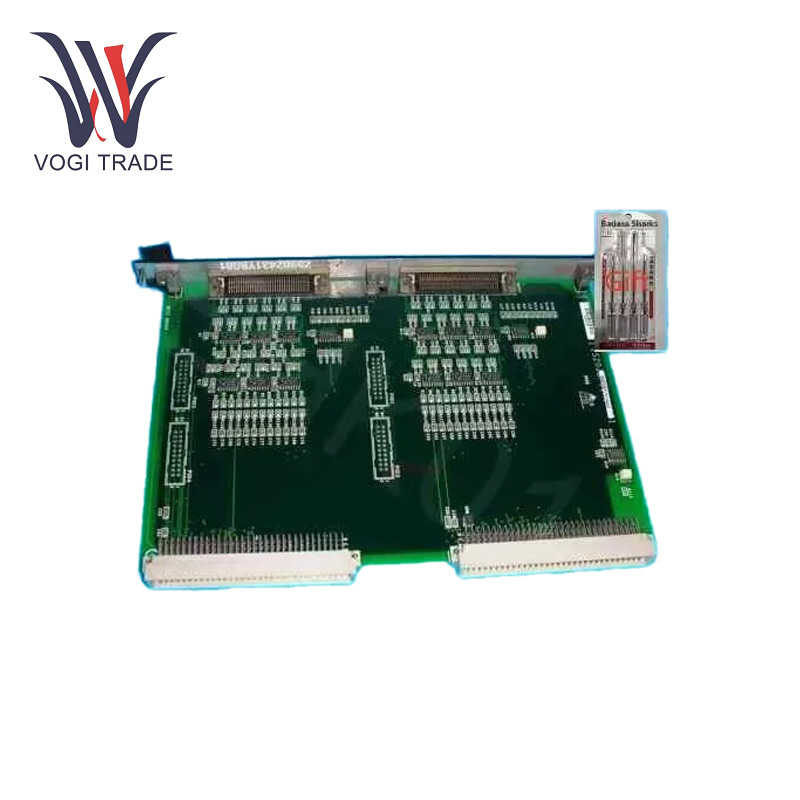

GE IS200BPIIH1AAA

Operating Parameters

Power Supply Voltage: 24 VDC.

Communication Interface:Ethernet interface,RS-485.

Gate Signal Channels: 24 gate

I/O Points: 16 digital input points and 16 digital output points

Temperature range: -40°C to 85°C

Operating Storage Storage Storage Temperature: −55°C to 125°C

Product Features

Essence of Signal Processing: It encodes different signals within the Mark VI system accurately. It is capable of receiving and transmitting both digital and analog signals, this is what ultimately enables communication between all the different components. As an example, it equals transmit control signals precisely of components drive and feedback signal of sensors to central control unit, which are important in stabilize and accurately operate of entire system.

GE IS200BPIIH1AAA has built-in diagnostic functions. It is capable of performing continuous supervision over the functioning state of itself and relevant part of the enclosure. It can identify such failures as signal errors, power supply failures and component failures in time and send out alarm signals, and can also record the fault description for convenient maintenance and troubleshooting.

Wide Compatibility This is a component of Mark VI system and shows great compatibility with other modules and components of the same series. It can be delivered quickly and flexibly with a variety of I/O boards, controller boards or power supply modules to form a complete and efficient control system to meet the needs of different application scenarios.

Installation

Typical instances include installation of GE IS200BPIIH1AAA in Standard 19-inch rack system, etc. One end could be inserted into the rack, and it could be tightened using screws or clips to secure it in placez. Before installation, do not forget to turn off the power of the entire system to avoid electric shock and damage to the device.

Troubleshooting

No Output Signal: When GE IS200BPIIH1AAA has no output signal, first check that the power supply cable is connected and the power supply is normal. Next, inspect the signal input and output connections for any loose or broken contacts. If the results are normal, it may be a failure of the internal signal processing circuit, you need professionals to re-replace or repair the board.

Communication failure: When communication failure with other devices occurs, check whether the communication cable is properly plugged in, and check whether the communication settings of GE IS200BPIIH1AAA and connected devices are consistent, such as baud rate, data bits, and parity bits. If the issue persists, the communication interface and software would be intended to identify and address any issues with the machine's functionality.

If it overheats, first check the ventilation environment around the device to ensure that there is no blockage and good heat dissipation. After which, verify the stability of power supply voltage. A high voltage can lead to device overheating.

Application range

Gas Turbine Control: GE IS200BPIIH1AAA is found in gas turbine power generation systems for precise monitoring and control of gas turbines. It plays a role in controlling gas turbine speed, output temperature, and power output for gas turbines, thus achieving stable and efficient operation of these equipment. It can also collaborate with other elements to achieve functions such as gas turbine start-up, shutdown, and fault maintenance.

Steam Turbine Control: This part originates and processes the command for the steam turbine unit It adjusts the opening of the steam valve, controls the rotating velocity of the turbine shaft, and also optimizes the power generation efficiency of the steam turbine. It is extremely important in the automatically-controlled steam turbine, and can make the whole flow generation process more reliable and stable.

Factory Control Systems: GE IS200BPIIH1AAA can be utilized for the control of production equipment in factories and workshops, monitoring and managing production processes and improving production efficiency. In the chemical industry, metallurgy, machinery manufacturing and other production lines, it can realize the automation of equipment operation, process control, data acquisition and other links, which can improve production efficiency and product quality.
