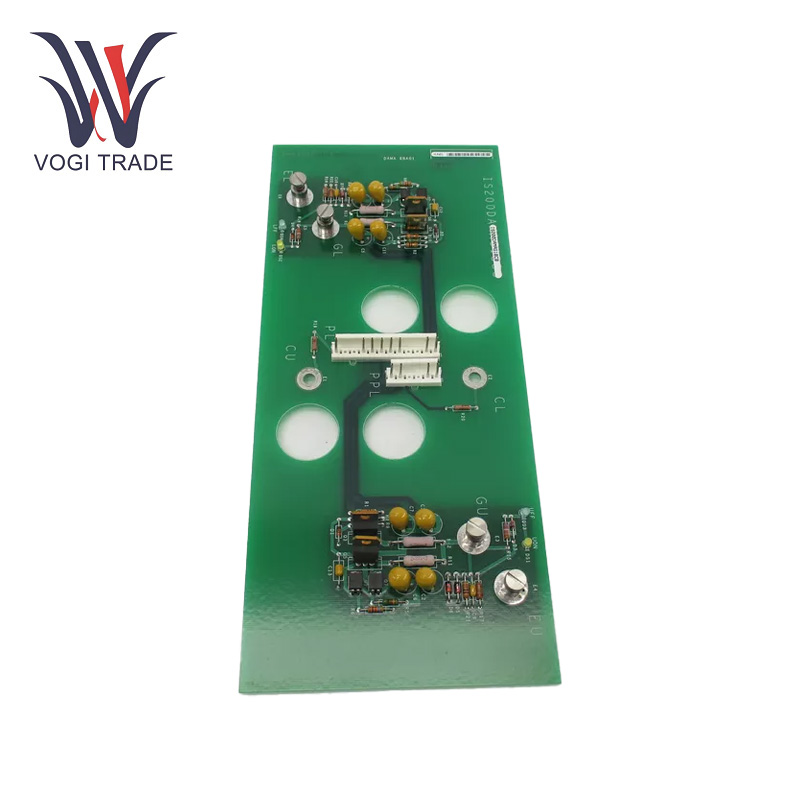

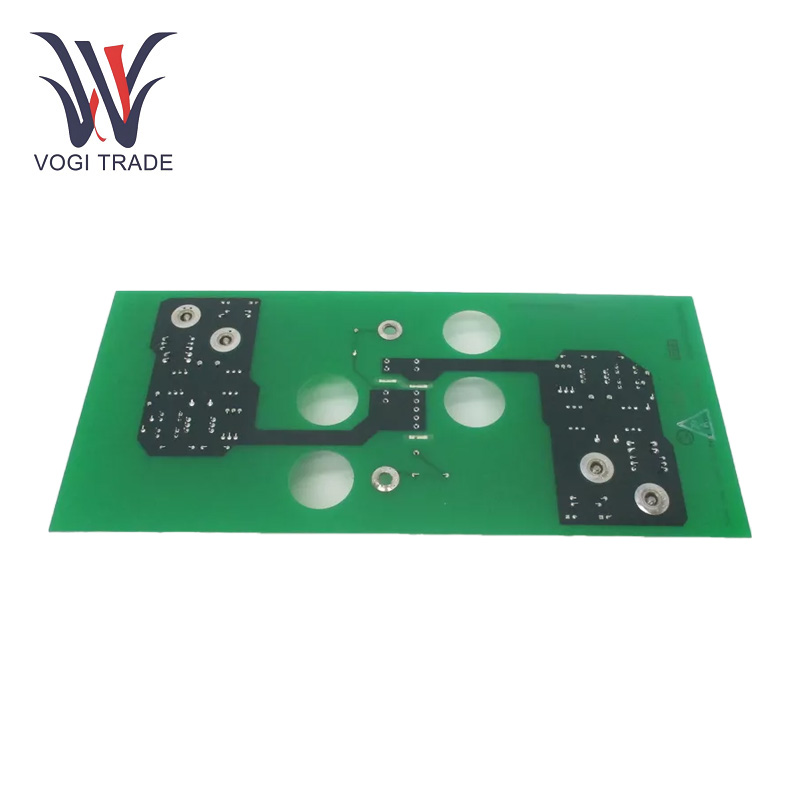

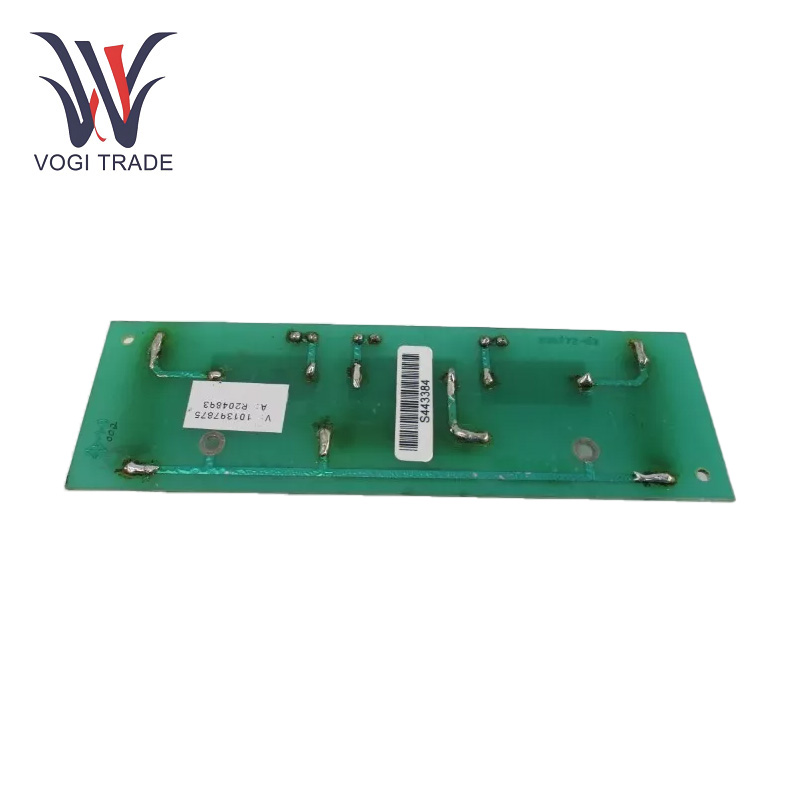

GE IS200DAMAG1BCB

Operation Parameters

Nominal Power Supply: 24 V DC

Operating Voltage Range: 18 V to 32 V DC

Current Consumption: Typically 0.5 A at 24 V DC (varies depending on configuration)

Digital Inputs:supports digital input channels used to monitor ON/OFF status of field devices.

Input Type: Dry contact, or open-collector signals.

Input Voltage: 24 V DC nominal.

Number of Inputs: Varies by specific configuration, typically between 8 to 16 channels.

Digital Outputs:The module supports digital output channels to drive field devices such as relays, lights, or other actuators.

Output Voltage: 24 V DC nominal.

Output Type: Solid-state (transistor) or relay contact outputs.

Number of Outputs: Typically between 8 to 16 channels depending on the configuration.

Ingress Protection (IP) Rating: Typically IP20 (suitable for indoor use in control panels or enclosures)

Product Features

Data Acquisition and Management:GE IS200DAMAG1BCB plays a critical role in data acquisition and can gather data from different types of sensors or other input devices. It converts accumulated data into a digital or analogue format suitable for processing by control systems. This part of the module is responsible for managing and storing the acquired data, making it accessible for real-time processing and analysis.

Interface Function:GE IS200DAMAG1BCB ensures seamless connectivity and minimizes interference between other system signals. The interfaces can be both for input and output ports which means we could transmit control signals in one single wire.

Signal Conditioning:GE IS200DAMAG1BCB undertakes the signal conditioning tasks like amplifying, filtering and converting input signals. It ensures that control system receives accurate and quality data from the sensors. It is able to manipulate the signal levels to conform to the needs of the controlling system, reducing noise and cross-talk.

Installation

Mounting: Provide a 19 inch rack or control panel with adequate space for ventilation and cabling.

Connecting:Connect digital input devices like sensors or switches to the modules input terminals.

Wire up the digital output devices (like relays, actuators or alarms) to output terminals.

Configuration: configure the digital input and output channels using the GE Mark VIe configuration software (ToolboxST or ControlST), with parameters including input types, output types, and timing characteristics

Testing:Once installed, turn on the system and employ the diagnostic tools available in the software to confirm that the digital inputs are reacting to the field devices appropriately and that the digital outputs are driving the connected actuators as expected.

Application Range

Industrial Turbine Control:GE IS200DAMAG1BCB is extensively utilized in industrial turbine control systems, such as gas turbines and steam turbines. It allows for monitoring and control of various parameters of the turbines, such as temperature, and pressure, and speeds, to ensure their safe and efficient operation.

Power Generation Plants:GE IS200DAMAG1BCB serves as an essential component in the control and supervision of electrical generation plants. It helps in ensuring stable generation of power by feeding accurate data and control signals.

Process Control Systems: The GE IS200DAMAG1BCB can accurate data acquisition and control make it useful in several process control systems.

Troubleshooting

Power Failure:Check the input terminals to see if the power supply voltage has reached the possible internal module. Check whether the power supply falls in the right voltage range, and confirm the power cable is connected correctly.

Issues with Data Transmission: If there is an issue with data transmission, inspect the connections in the input and output signals. Check that all cables are connected properly (and replace any that are damaged), and that the signal levels are as expected.

Check for malfunctioning module:If module seems to be malfunctioning, look for any error messages or indicators on the module. These may offer hints about what kind of problem it is.

Configuration Issues:If the module is not working correctly following installation, check the configuration options. By setting incorrect parameters for configuration, you can lead to improper operation as well. Inspect the configuration software/panel for misconfiguration concerning I/O types, signal ranges, or communication protocols.
