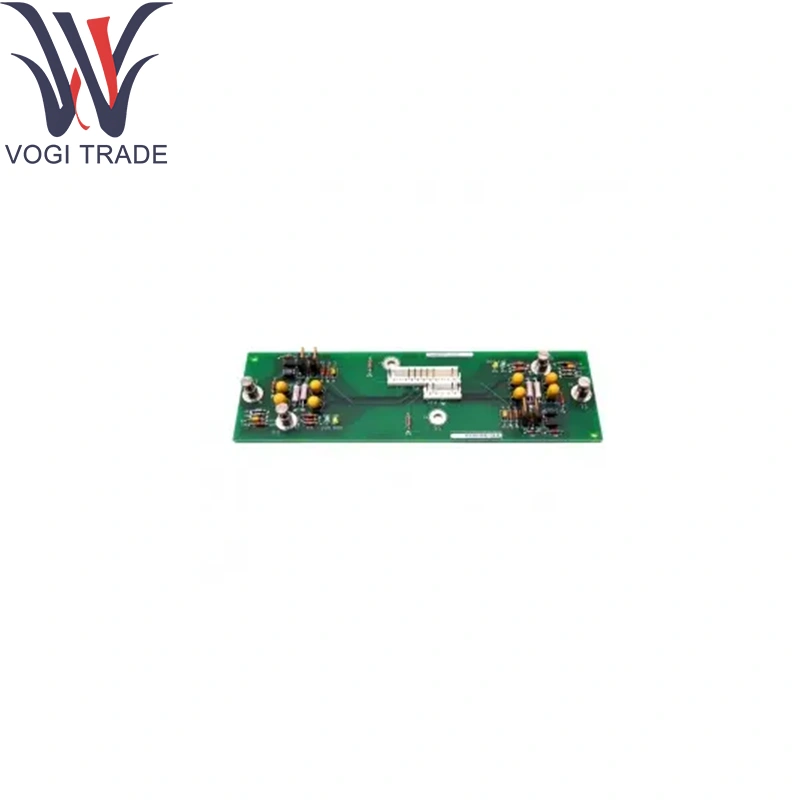

Brand: GE Description: IS200DAMCG1A Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 10 Payment Term: T/T Shipping Port: Shenzhen GE IS200DAMCG1A Functions as the final stage gate-drive amplifier in GE’s low-voltage Innovation Series drives, interfacing between the control-rack Bridge Personality Interface (BPIA) board and the IGBT power devices.
|
Manufacture |
GE |
|
Model Number |
IS200DAMCG1A |
|
Ordering Number |
IS200DAMCG1A |
|
Catalog |
Mark VI |
|
Description |
GE IS200DAMCG1A Gate Drive Amplifier |
|
Country Of Origin |
USA |
|
HS CODE |
8537101190 |
|
Dimension |
233 × 160 × 50 mm |
|
Weight |
0.32 kg |
Technical Parameters
Function: Gate drive amplifier and interface for one IGBT phase-leg
Module Implementation: GE IS200DAMCG1A
Frame Rating: 250 A Innovation Series drives
IGBT Module: Powerrex CM400HA-28H (one upper and one lower device per board)
Power Supply Input: ±15 V DC / –7.5 V DC rails from control rack
Drive Outputs: 2 × isolated gate-drive channels via GE IS200DAMCG1A interface
Status LEDs: 4 per board (DS1/DS2 yellow for drive-on status; DS3/DS4 green for fault-free indication)
Connectors:
Rear-edge mating to IS200BPIA Bridge Personality Interface
Front-panel screw-type terminals for inter-module harness
Protection & Isolation:
Gate-drive galvanic isolation > 1 kV
Under-/over-voltage lock-out on gate-drive supplies
Transient-suppression networks integrated in GE IS200DAMCG1A
Product function
The GE IS200DAMCG1A amplifies low-level control pulses into high-current gate-drive signals for IGBTs. It actively monitors drive-ON and fault conditions through on-board diagnostics, enabling the GE IS200DAMCG1A to protect both control electronics and power semiconductors via integrated isolation, voltage-lockout, and transient suppression networks
Core supporting modules
Bridge Personality Interface (BPIA):
IS200BPIA board that interfaces control logic to multiple GE IS200DAMCG1A boards
Control Rack CPU:
Innovation Series controller issuing gate-drive commands via GE IS200DAMCG1A
IGBT Assemblies:
CM400HA-28H phase-leg modules driven by the GE IS200DAMCG1A
Extension components
Harness Kits:
Pre-wired multicore cables terminating at GE IS200DAMCG1A terminals
Spare LED Assemblies:
Replacement packs (DS1–DS4) for GE IS200DAMCG1A diagnostics
Transient-Suppression Modules:
Field-replaceable RC snubber boards compatible with GE IS200DAMCG1A
Mounting Hardware:
VME accessories for secure installation of GE IS200DAMCG1A
Software support
Configuration:
No local logic-drive parameters set by controller; GE IS200DAMCG1A acts as passive interface
Diagnostics:
Fault indicators from GE IS200DAMCG1A routed to controller via BPIA
Documentation:
Installation procedures covered in GEI-100262A Manual (Section 5.3: GE IS200DAMCG1A Integration)
