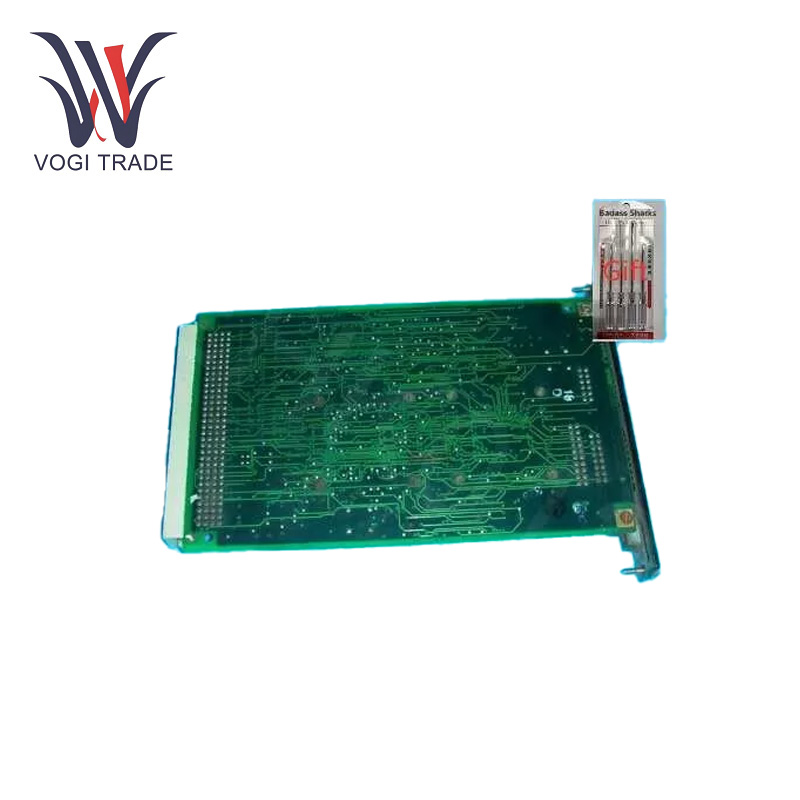

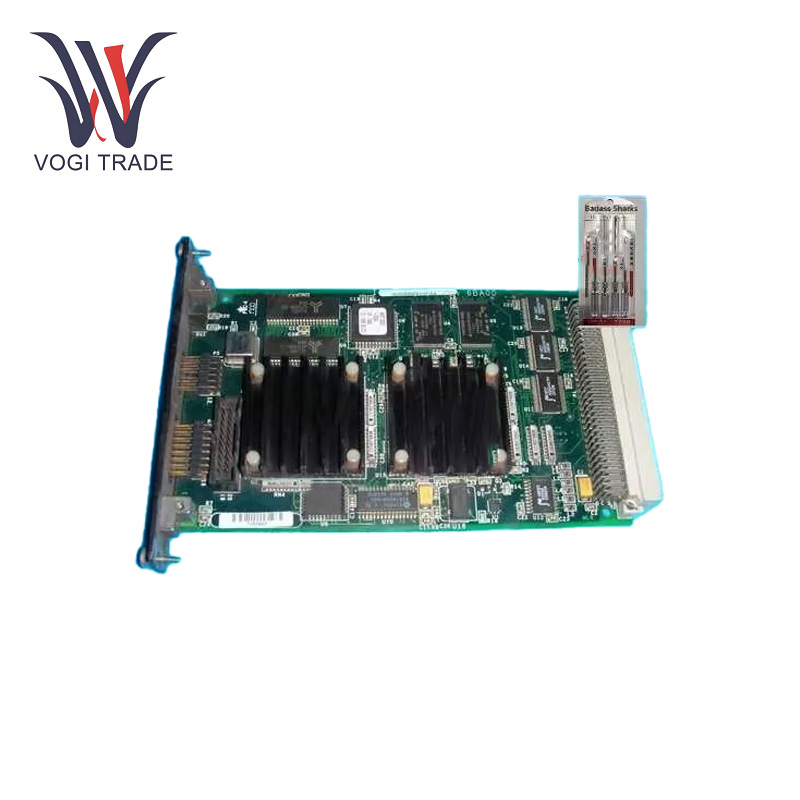

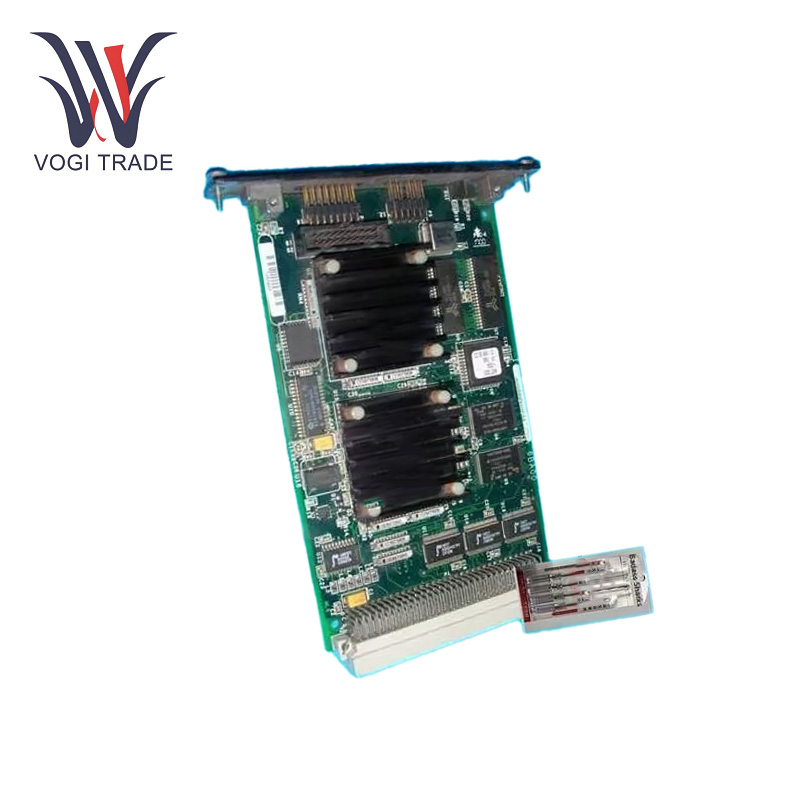

GE IS200DSPXH2CAA

Operating Parameters

Response time (switching): 10 ms.

Memory: 256 KB Flash and 64 KB RAM.

Temperature Operating Range: -20°C to 70°C.

Input Signal Range: 0 - 5A.

Protection Level: IP20.

Product Features

Superior harmonic detection capability: GE IS200DSPXH2CAA is designed with intelligent fifth harmonic detection capabilities. It is capable of correctly determining whether the fifth harmonic content of the current signal at the relay exceeds the threshold within a predetermined time. Such a function is quite important in the fault diagnosis of power systems and industrial equipment, which can timely identify the potential faults and abnormal state for a stable operation of the system.

Switches for Flexible Fault Resetting: The module is equipped with switches that allow flexible control over the resetting of fault indicators. When in position 0, the start indication code number is reset automatically, after comforting the error. Note: When the code number is between position 3 and position 1, the code number will always keep the lights on even if the fault disappears, which is convenient for users to check and record fault information and for follow-up fault troubleshooting and analyze

Programmable Function: GE IS200DSPXH2CAA has very good programmability. Based on various functional requirements, users are able to program and configure the module as per the specific application needs that can be utilized for varied control applications. This allows for bespoke control logic and operational modes, increasing the flexibility and versatility of the module in various industrial applications.

Installation

Mounting: Before getting into the actual troubleshooting process, make sure that GE IS200DSPXH2CAA module itself is not damaged physically or has over-heading components that are loose. The module can be embedded in industrial control cabinet or mounted on DIN rail. You can fix it with screws or DIN rail Clips to prevent the module from shaking or moving during operation.

Troubleshooting

No Signal Output: Confirm power supply status and whether the power indicator is lit on the module. If the power is normal, observe the input and output signal line connections to check whether the wiring is loose or damaged. The output function may not be enabled, or it may not have the right parameters , make sure to check the settings of the module.

Harmonics detected are not accurate: If the detected harmonics are far from the exact values, first ensure to verify that the current/voltage sensors connected to the module are not only working fine but also calibrated accurately. Then, see if the harmonic detection parameters located in the module make sense. You might need to re-calibrate the module or modify your detection threshold and other parameters.

Communication Failure: it refers to a problem with the communication with other devices, check the communication cable connection, see if there is a disconnection, short circuit or poor contact. Compatibility issue-make sure the communication protocol settings of the module match the connected device. Check whether resetting communication interface or replace with communication line to solve the problem.

Application range

Power generation and distribution system: GE IS200DSPXH2CAA can be applied in power plants and substations to monitor and analyze harmonic components in power grid. The accurate measurement of the 5th harmonic and other abnormal signals helps to ensure the stability and safety of the power supply, which is conducive to the safe operation of power generation equipment and power transmission & distribution systems.

Motor Control Systems: The module can be used to monitor the current signals of motors in industrial motor control applications. This detects harmonic anomalies in the motor current, which can be indicative of issues such as faults in motor windings or unbalanced loads. By identifying these problems in their early stages, preventative maintenance can be performed which in turn reduces the risk of motor malfunction and enhances the overall efficiency and longevity of the motors.

Production Lines: GE IS200DSPXH2CAA can also be utilized for monitoring and controlling industrial automation production lines. The production line model can be connected with PLC and other control devices to realize accurate control and fault diagnosis of the production line, so as to improve the production efficiency and quality of products.
