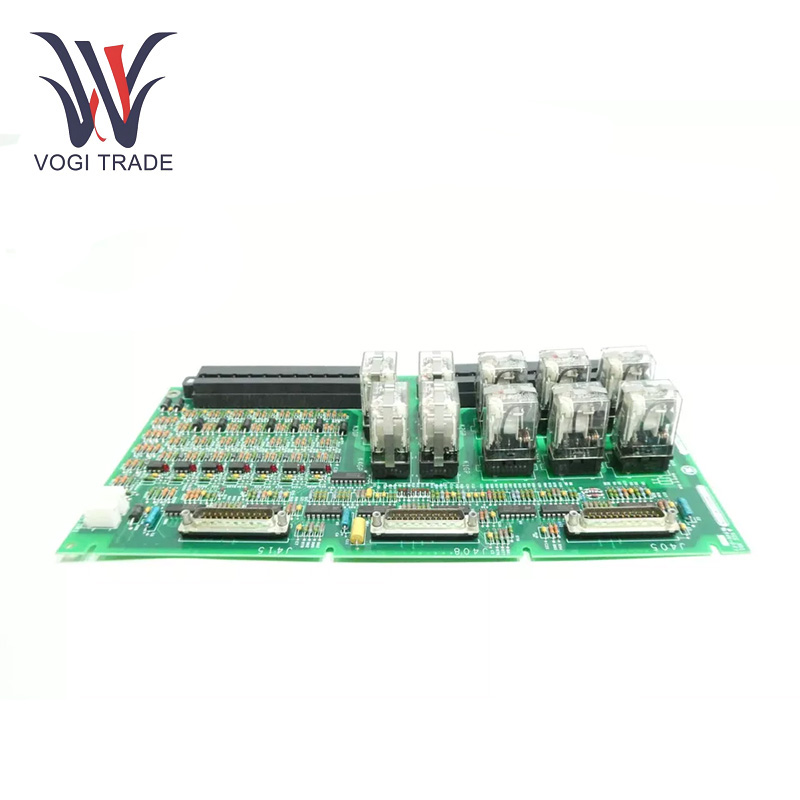

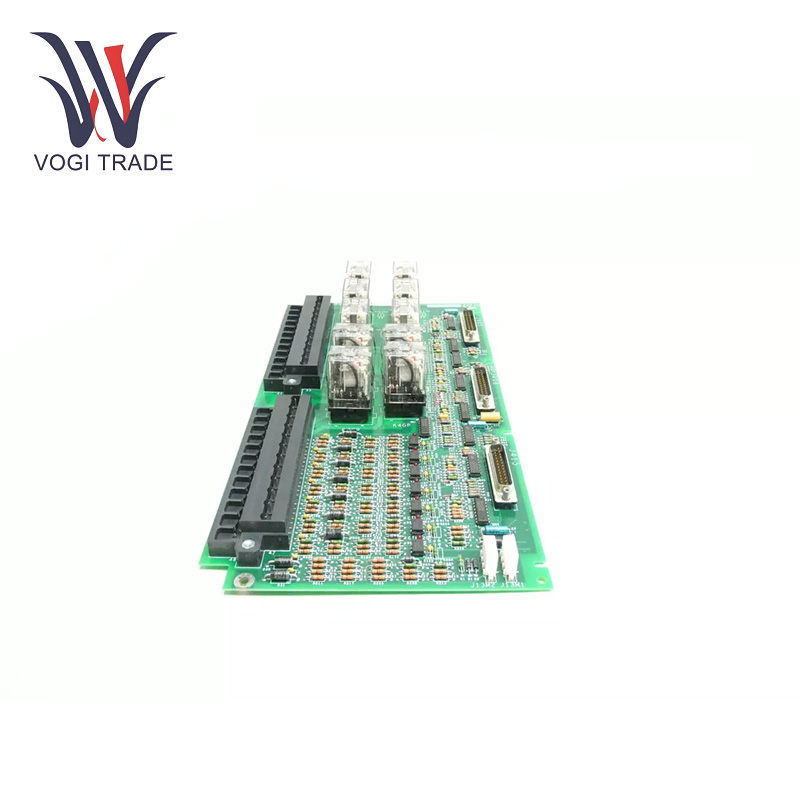

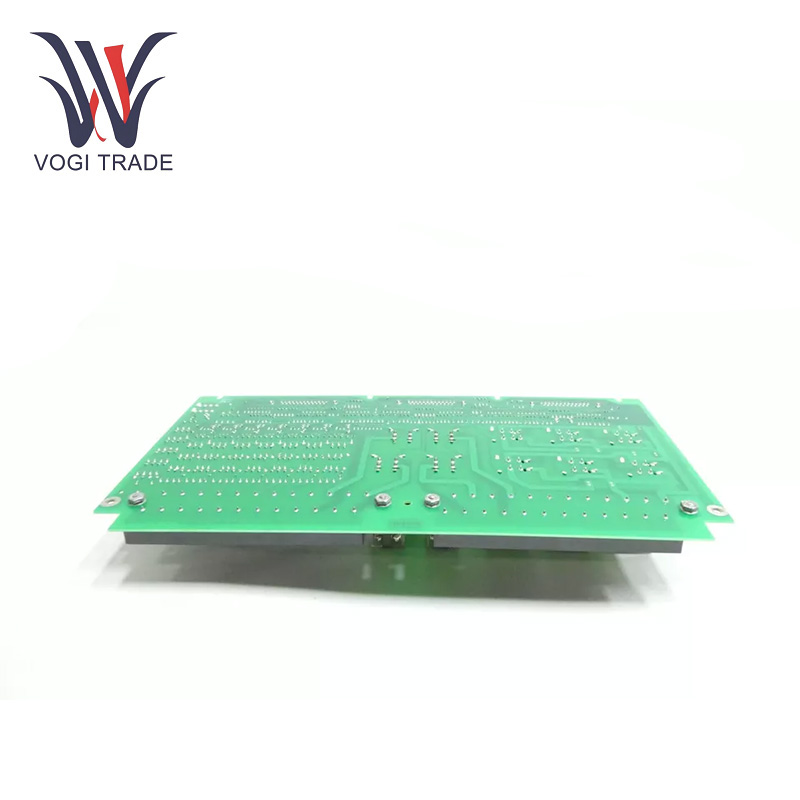

GE IS200ECTBG1ADA

Operating Parameters

Input Power: Powered by +5 VDC, typically from the control system backplane.

Signal Processing: The IS200ECTBG1ADA .

Operating Temperature: Standard operating conditions are 0°C to 70°C (32°F to 158°F)

Storage Temperature: Safe storage temperature is -40°C to 85°C (-40°F to 185°F)

Humidity: Designed to operate in a non-condensing humidity range of 5% to 95%

Product Features

Signal Routing: Routes the excitation contact signal between the excitation system and the control system.

Signal Processing: Processes the excitation contact signal to ensure accurate and timely communication.

Protection Functions: Offers overvoltage and short circuit protection.

High Precision Control Ability: It employs high-precision control algorithms, which means GE IS200ECTBG1ADA can carry out precise control tasks. For instance, in the manufacturing process, it can accurately adjust the speed and positioning of the motor to maintain the quality of the production process. It is flexible and can adapt according to changing process requirements while ensuring optimal performance.

Prognostic And Diagnostic Abilities: Built-in diagnostic tools proactively monitor the health of the device and connected components. The system can identify potential faults, sensor failure, or abnormal patterns of signal and generate early warnings. The prognostic function even able to predict potential future failures, thus support preventive maintenance.

Diverse Communication Standards: GE IS200ECTBG1ADA supports multiple connectivity interfaces, including but not limited to Ethernet, serial ports, etc. This allows it to send and receive data to and from other nodes in the industrial network and work together for optimized control. It is simple to use, so can fit into existing automation very well.

Installation

Mechanical Installation: The module can be easily incorporated into any standard industrial rack or cabinet. It comes with holes for mounting and brackets to hold things in place, and I've also seen examples of mechanical coupling in the way it works. It must be installed without any physical damage and fixed using the provided hardware.

Software Installation and Configuration: Once physical installation is done, you can go for software setup. This means the installation of appropriate control software and a parameter configuration like IP address setup and in-out mapping, as well as device identification for communications on the net.

Application range

Industrial Manufacturing: Used to control production processes in factories producing automobiles, electronic products, and machinery GE IS200ECTBG1ADA controls robotic arms, conveyors and processing tools to enhance productivity and product quality.

Process industry: Used in chemical, pharmaceutical and food processing plants to monitor and control pumps, valves, and reactors. Through specific control of temperature, pressure, and flow rate, GE IS200ECTBG1ADA allows production processes to run smoothly and safely.

Power Generation & Distribution: In Power Plants, this entails controlling Generators, Transformers, and Switchgear. GE IS200ECTBG1ADA enhances grid stability through precise control and monitoring.

Troubleshooting

No Output: Make sure all connections are properly seated and in tact Make sure that the control sysstem is working correctly.

Unusual Activity: Inspect for interference or noise in the signal. Verify that all components are working according to defined operating conditions.
