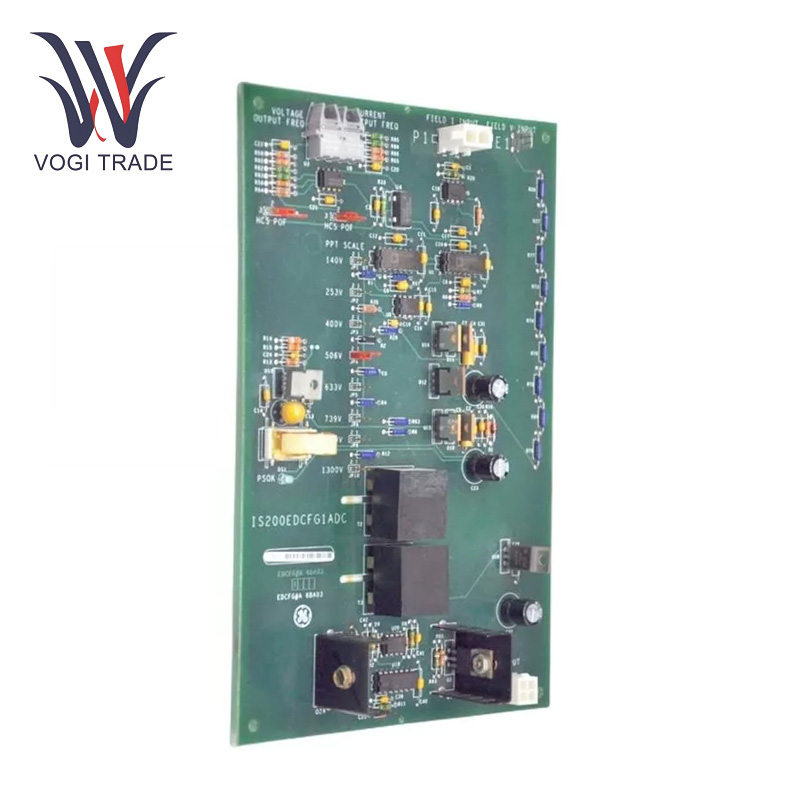

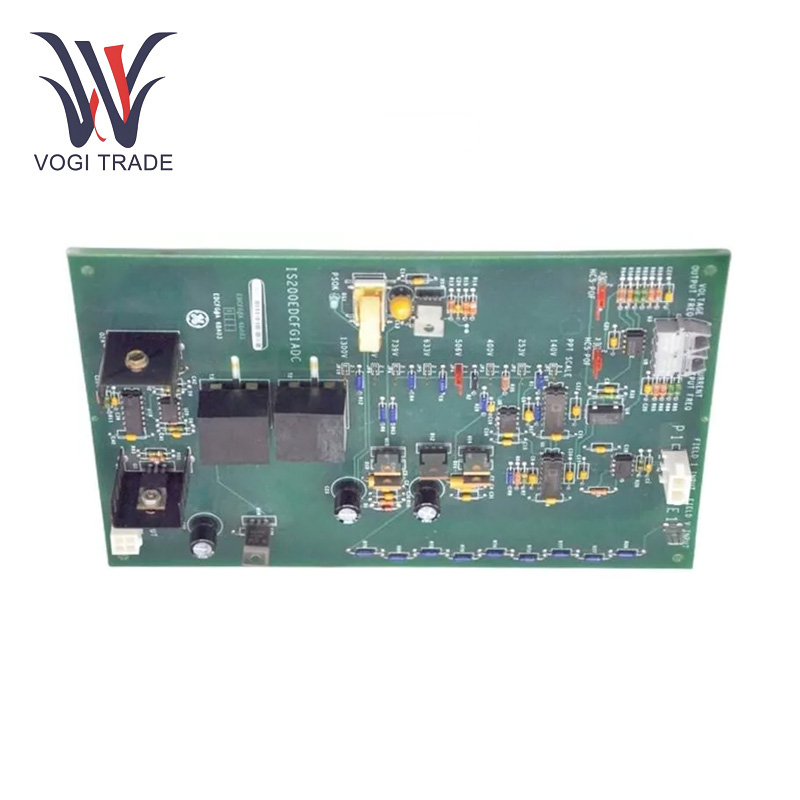

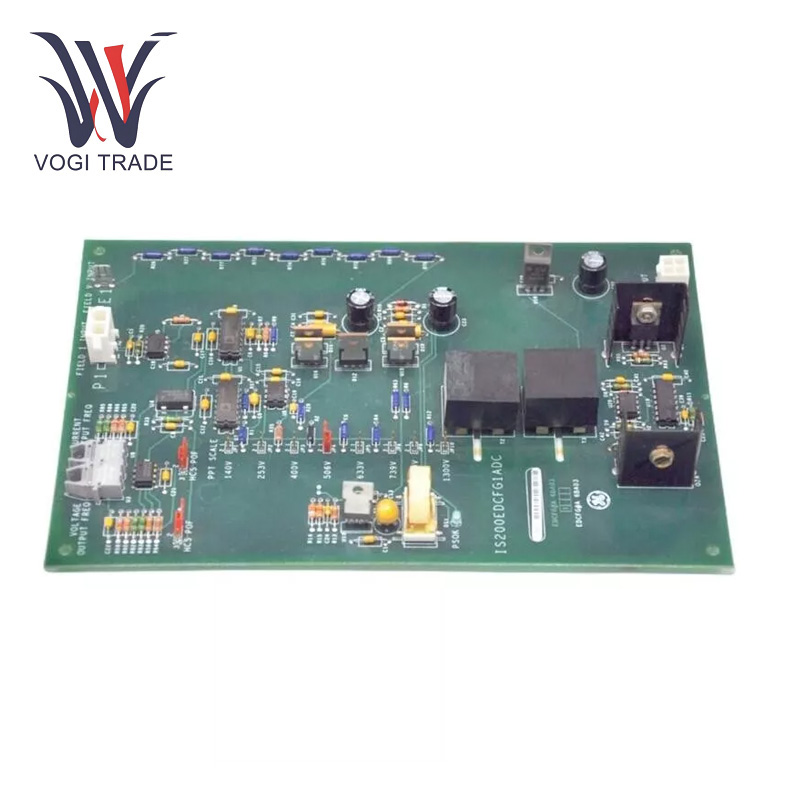

Brand: GE Description: Exciter DC Feedback Board Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 7 Payment Term: T/T Shipping Port: ShenZhen GE IS200EDCFG1ADC is an exciter DC feedback board used in the EX2100e excitation control system. It monitors and processes the DC feedback signal from the exciter to accurately control and regulate the turbine's excitation system.
|
Manufacture |
GE |
|
Model Number |
IS200EDCFG1ADC |
|
Ordering Number |
IS200EDCFG1ADC |
|
Catalog |
EX2100 |
|
Country Of Origin |
USA |
|
HS CODE |
8479909090 |
|
Dimension |
40cm*30cm*8cm |
|
Packing Dimension |
42cm*32cm*10cm |
|
Weight |
1.2kg |
Operating Parameters
Input Power: Powered by a +5 VDC power supply, typically provided by the control system backplane.
Power Consumption: The board typically consumes about 2-3 Watts
Signal Processing: Processes these signals with high accuracy and real-time speed to ensure accurate operation of the excitation system.
Operating Temperature: 0°C to 70°C (32°F to 158°F)
Storage Temperature: -40°C to 85°C (-40°F to 185°F)
Function: Monitors the excitation current and excitation voltage of the SCR (silicon controlled rectifier) bridge.
Power Supply: Powered by a +5 VDC power supply, typically provided by the control system backplane.
Signal Processing: Processes the DC feedback signals to ensure accurate and timely communication between the exciter and the control system.
Product features
Signal reception and transmission parameters: GE IS200EDCFG1ADC can determine the voltage window frequency bands for the incoming signal and be compatible with many sensors. Recognised standards outputs allows easy connection to the downstream actuators/control elements Such flexibility allows easy integration into complex control schemes.
Data processing capabilities: Processes data at a rate that allows for real-time response Also, the speed of data processing is tuned so that it can accommodate the incoming flow of information from different information sources (such as reading from sensors) and translate this as soon as possible into commands. This value of processing speed can be read out from the teech doc.
Installation
Preparation: The system must be turned off to avoid any electrical hazards. Confirm compatibility with existing EX2100e excitation control system.
Insertion: Align the GE IS200EDCFG1ADC board with the designated slot in the control chassis. Gently insert the board until it is firmly seated.
Connections: Cconnect the DC feedback inputs and outputs to the terminals on the board. Make sure connections are tight and insulated.
Power On:Power on the system. Keep an eye out for any signs of errors or operation system failures.
Application range
Automotive Manufacturing: GE IS200EDCFG1ADC can be used to control robotic welding stations, assembly line conveyors, and quality inspection systems in automotive manufacturing plants. It is crucial to increase production efficiency and guarantee the quality of the product.
Electronic Manufacturing: GE IS200EDCFG1ADC controls precision machinery, pick-and-place robots, and test equipment in factories that produce electronic components and devices. It assists in keeping the process trustworthy, accurate and constant of manufacturing
Renewable Energy Systems:In installations of solar and wind energy, GE IS200EDCFG1ADC oversees inverters, battery management systems, and monitoring devices. This support ensures the efficient and reliable generation and storage of renewable energy.
Troubleshooting
No Output: Verify that all connections are well placed and not broken. Ensure proper functionality of the control system.
Erratic Behavior: Look for signal disruption or interference. Make certain all elements are within recommended operating conditions.
Overheating: Check that the system has enough ventilation. Look for blockages or issues with the cooling mechanism.
