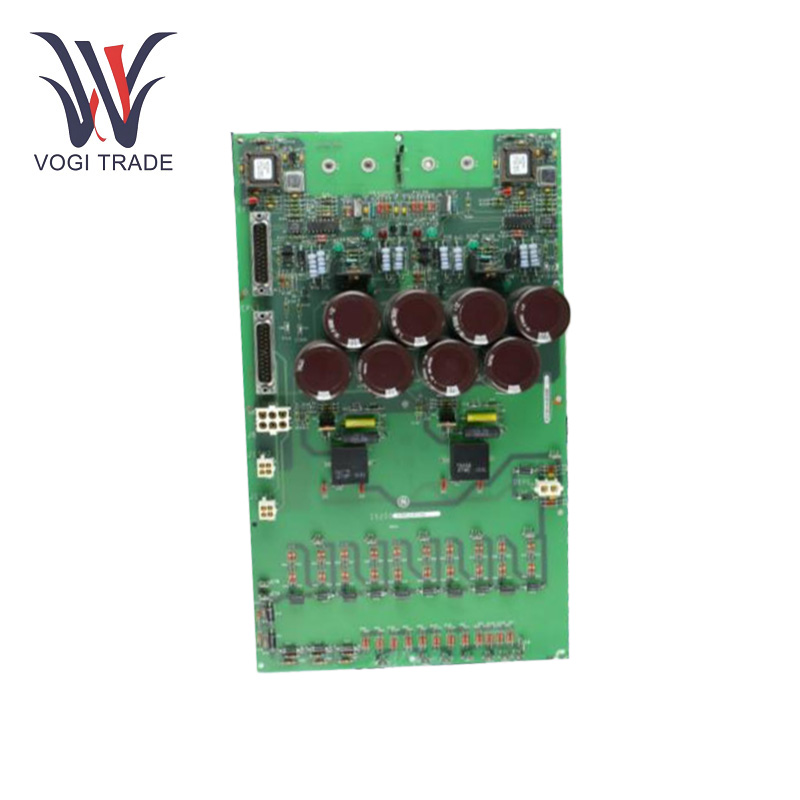

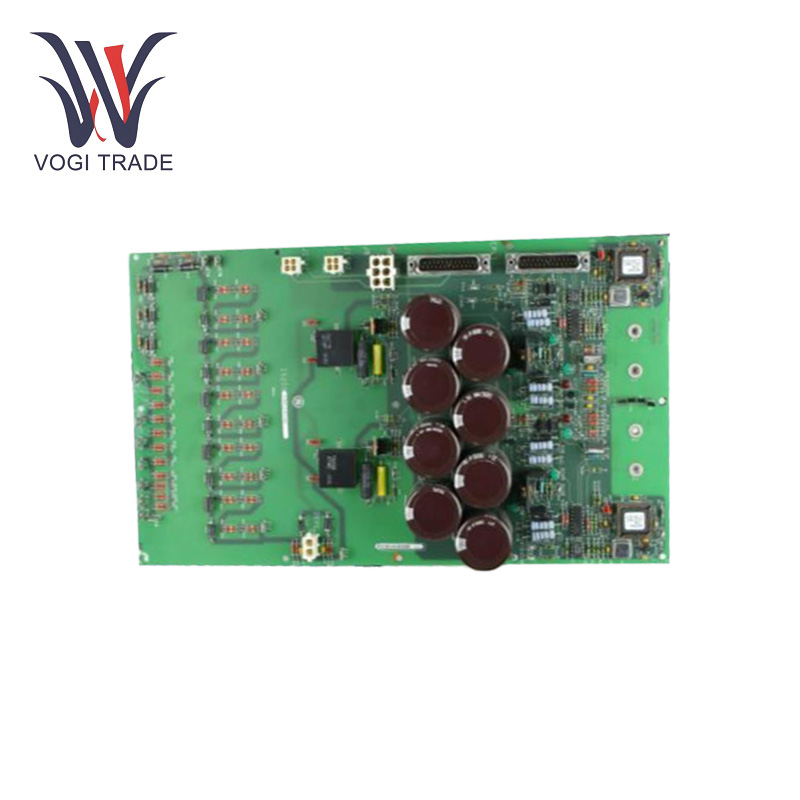

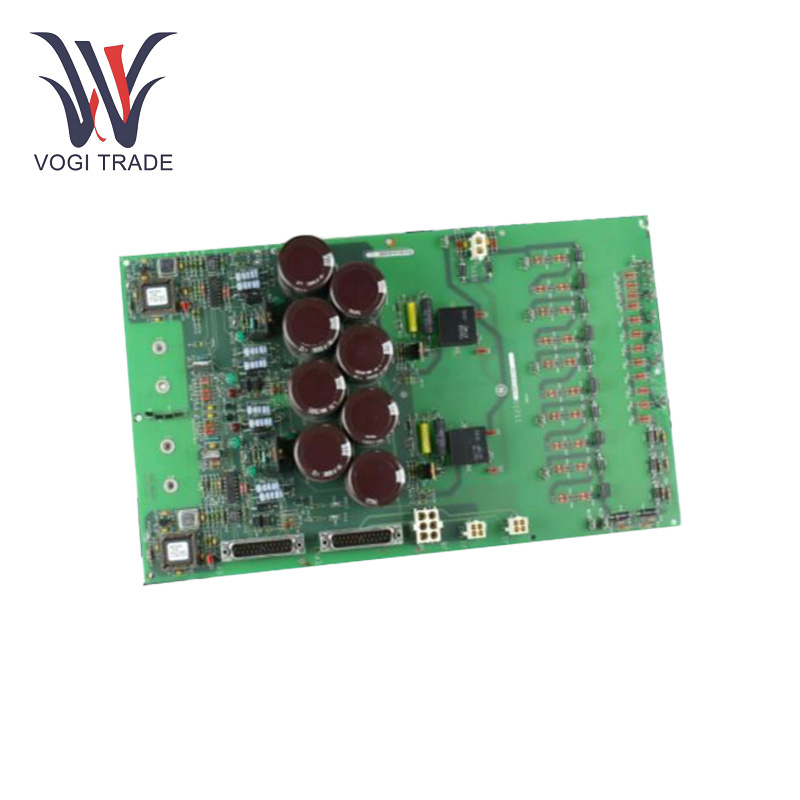

GE IS200EDEXG1ADA

Operating Parameters

Nominal Operating Voltage: 24 VDC , with a permissible range from 20 VDC to 30 VDC.

Power Consumption: Approximately 2.5W .

Voltage Level: Input voltage typically ranges between 0V (Low) and 24V (High) for digital signals.

Input Impedance: The input impedance is designed to ensure proper signal recognition without overloading.

Signal Type: Supports dry contact and electrically isolated inputs for flexibility in a variety of field applications.

Voltage Range: Typically 0-10V DC, 4-20mA current signals, and other industry-standard analog signals.

Resolution: The analog input typically features 12-bit resolution, ensuring accurate measurement and control.

Input Impedance: Configurable, depending on the connected device and type of sensor.

Output Voltage: Typically 24V DC

Output Current: Can drive up to 100mA per output with protection for short-circuit events.

Relay Type: Dry relay contacts for controlling external devices

Signal Range: Typically 4-20mA , and 0-10V DC in some configurations.

Resolution: Typically 12-bit or higher for analog output to ensure precise control.

Product Features

Data Handling: The GE IS200EDEXG1ADA processes real-time data from field devices, including measurements, alarms, events, and status updates, and relays it to the controller for system monitoring and control purposes.

Ingress Protection: Typically IP20 — protection against dust larger than 12mm; no water protection.

Output Short-Circuit Protection: Each output is internally protected against short circuits.

Surge protection: The module has surge protection that shields against power transients and voltage spikes.

Isolation: Inputs and outputs are electrically isolated to avoid cross-interference between signals and to guarantee safety within the system.

Advanced I/O Options: GE IS200EDEXG1ADA offers a variety of input and output options, enabling flexible connectivity with other devices.

Signal Isolation: This ISO 4610 and IEC power supply module condition with SFC3074 signal isolation feature provides isolation for both Digital inputs and outputs as well as Analog to prevent Electrical noise from otherwise affecting operation of the device.

IEC 61010 Safety Standard: Designed for safety requirements for electrical equipment also for use in power plants with high reliability

TBA: TBA DescriptionCommunication Bus: The GE IS200EDEXG1ADA is designed to connect to General Electric’s Mark VIe control system, individual GE IS200EDEXG1ADA modules can communicate via Ethernet based or serial based networks to other modules and central control systems.

Application range

Gas Turbine Control Systems: Handle turbines in power plants, such as gas, steam, and hydro turbines, to ensure peak efficiency and security.

Automation Systems: utilized in factory automation, where numerous sensors and actuators must be combined into a single control platform.

Process Control: Typically used for industries such as chemical processing, oil and gas, or other industries where continuous monitoring and precise control of industrial processes is essential.

Diagnostics: The communication capabilities of the GE IS200EDEXG1ADA enable remote monitoring and diagnostics, allowing operators to check system performance without having to be physically present.

Troubleshooting

Check Power Supply: Ensure the module has the correct voltage and check for power interruption.

Test All Connections: Make sure everything is wired in properly and securely.

Check Communication settings: Ensure that the communication protocols and communication settings are accurately configured.

Examine Cable Connections: Check all cables and connections to confirm that none of the connections are loose or broken.

Check Environmental Conditions: Verify that the temperature and humidity conditions are not exceeding the operating conditions for the module.
