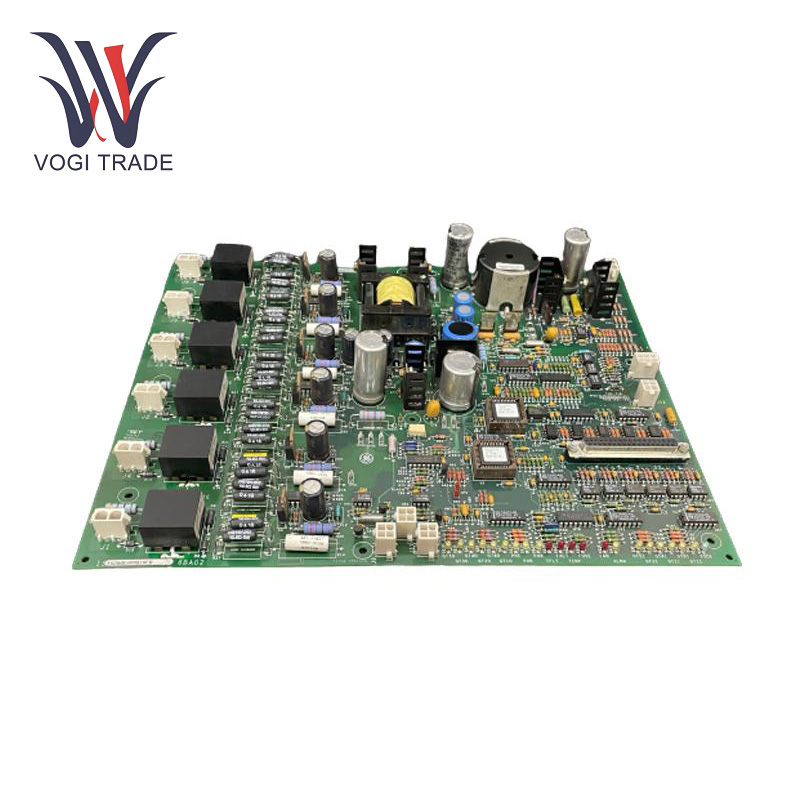

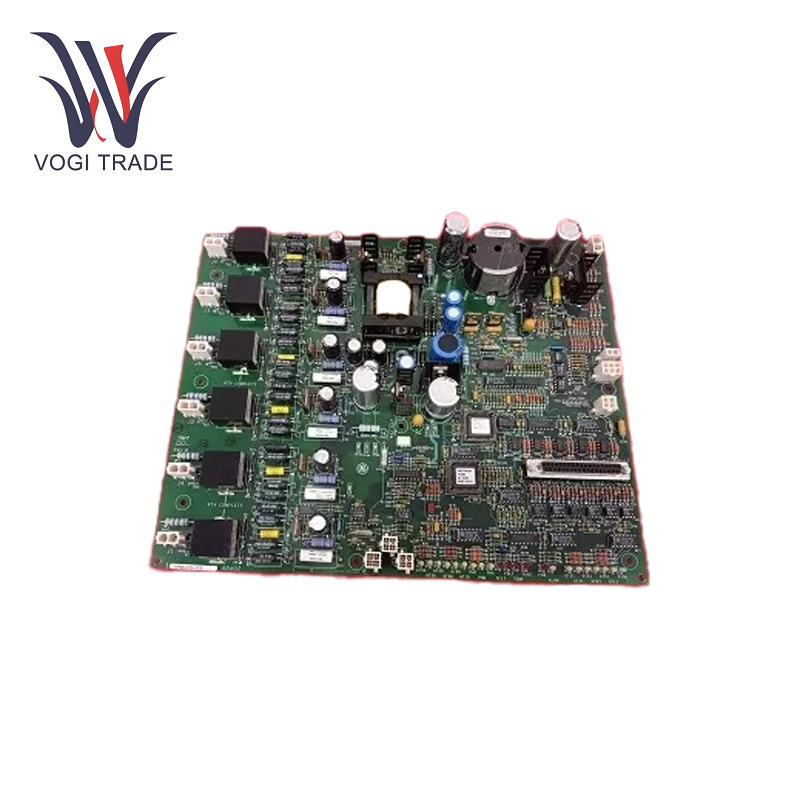

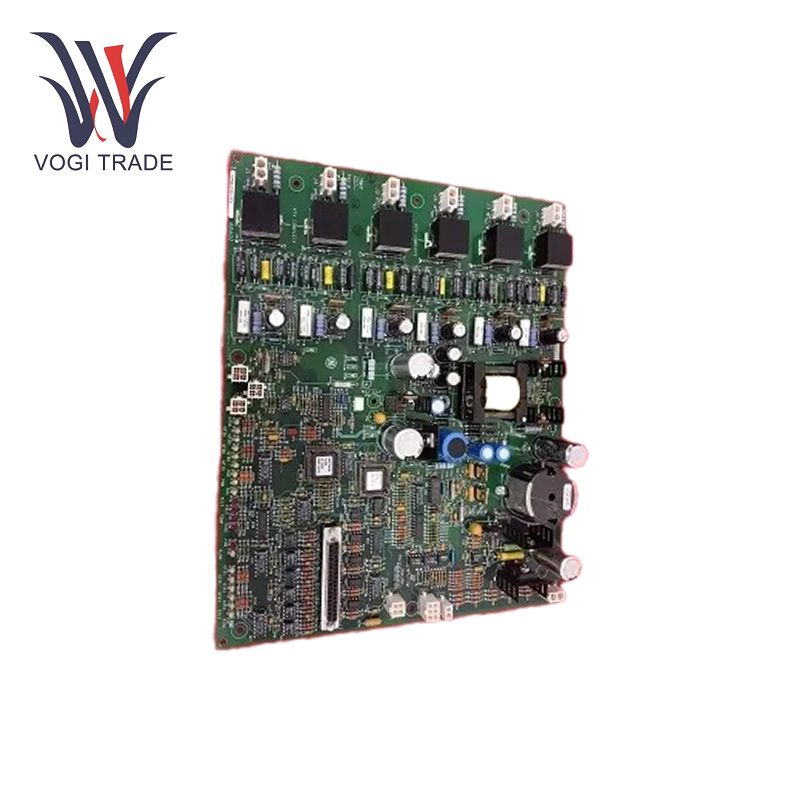

GE IS200EHPAG1AAA

Technical Parameter

Input Voltage: 24V DC.

Operating Temperature Range: -40°C to +85°C.

Storage Temperature Range: -40°C to +85°C.

Humidity: 5% to 95% non-condensing.

Connectors Total Number: 14 plug connectors and 3 female board connectors.

Connectors Types: 8 two-plug, 4 four-plug, and 2 six-plug connectors.

Connectors Location: Upper right corner of the board.

Transformers: 8.

Transistors: 10.

Functional Features

Direct Control: It is mainly used to directly control silicon-controlled rectifiers (SCRs), playing a key role in power conversion and control circuits.

The GE IS200EHPAG1AAA is an exciter health monitoring board from the GE Mark VI series of components that can be used in industrial control systems, primarily for gas turbine management. It is able to accurately observe and control the exciter. This means that the 24V DC system can work properly in extreme temperatures, from -40°C to +85°C in industrial environments.

Operation Methods

Install: Be sure to disconnect the power of the relevant system first. Typically, GE IS200EHPAG1AAA is found in the power conversion cabinet. Note the cable connectors when installing, prevent the connectors and terminals metal film damage2.

Connection: According to the circuit design requirements, connect the board with other components in the circuit, and ensure the plug connector is firmly inserted to avoid poor contact.

Power on and debugging：After the installation and connection are completed, press the power switch and observe whether the LED warning light is working properly. Verify proper functioning of GE IS200EHPAG1AAA as per specific control requirements and system instructions. Use of parameter setting and debugging will be carried out in case required.

Application Areas

Power Generation Industry： In the power generation industry, such as thermal power plants, hydropower plants and nuclear power plants, it is all used: in the excitation control system of generators, used to control the excitation current of generators and ensure that generators operate stably and the power output is stable.

Industrial Automation: GE IS200EHPAG1AAA is applied to the control system of motors, inverters and other equipment in the industrial automation field, to achieve the accurate control of power conversion and motor speed and torque regulation.

Power Electronics EquipmentIn：It can also be used in power electronic equipment, such as high voltage direct current transmission equipment, reactive power compensation equipment, etc., to play a role in pulse amplification and control, and improve the overall performance and reliability of power electronic equipment.

Renewable Energy Generation: In the field of solar power generation and wind power generation,GE IS200EHPAG1AAA is mainly in the control system of inverter and converter, to realize power conversion and control and improve the efficiency and stability of renewable energy power generation.
