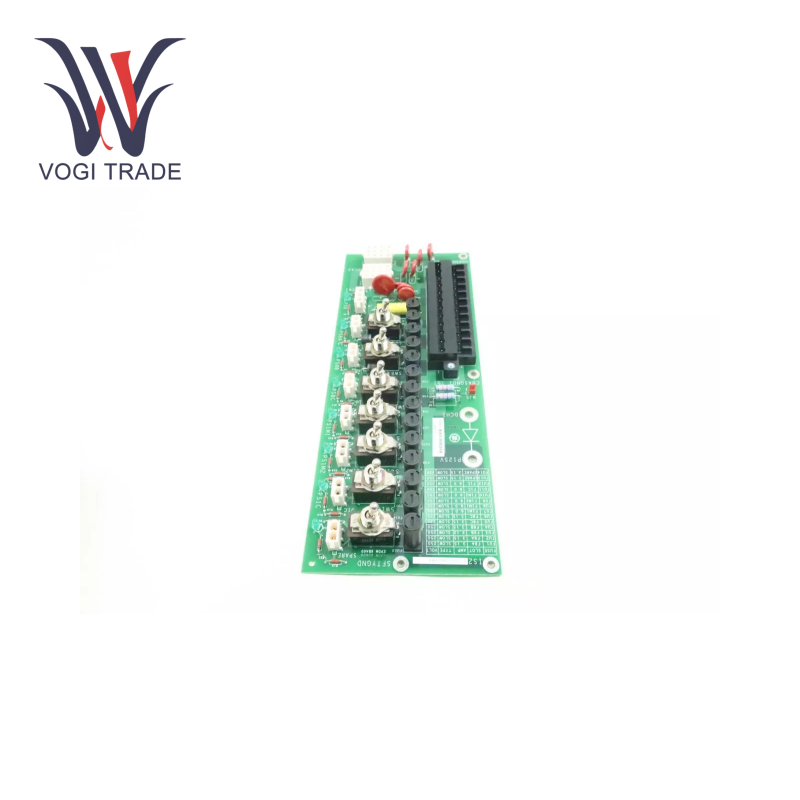

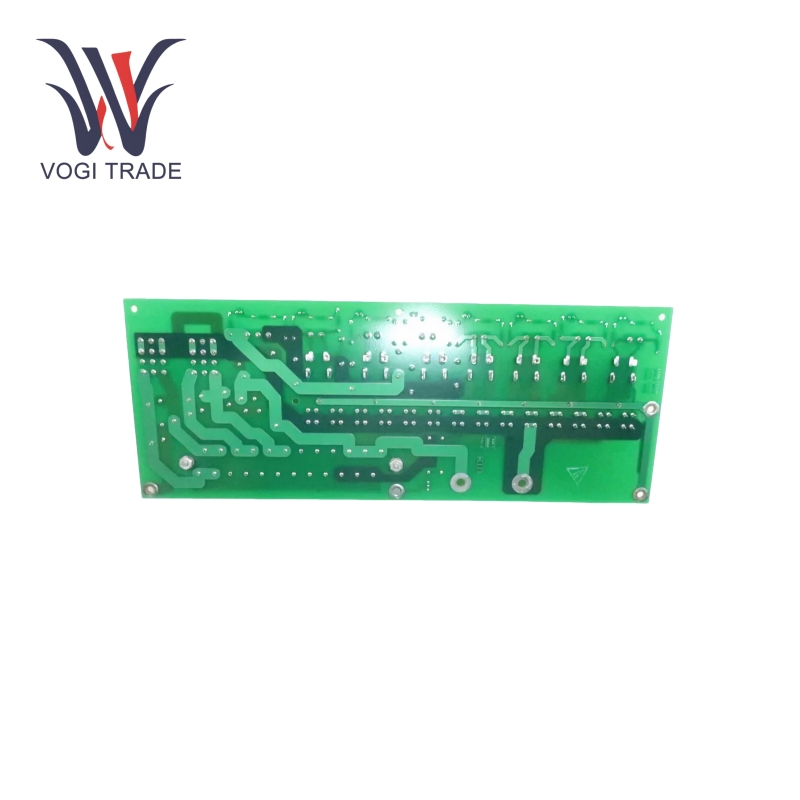

Brand: GE Description: EX2100 Power Distribution Module Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 5 Payment Term: T/T Shipping Port: ShenZhen GE IS200EPDMG1ABA is a Power Distribution Port module, the port which successfully connects the control system with other devices using Ethernet. It is essential for smooth data movement and integration in complex automation networks, like power generation, oil and gas, and other heavy industries.
|
Manufacture |
GE |
|
Model Number |
IS200EPDMG1ABA |
|
Ordering Number |
IS200EPDMG1ABA |
|
Catalog |
Mark VI |
|
Country Of Origin |
USA |
|
HS CODE |
8538900000 |
|
Dimension |
35.5cm*17.8cm*8.2cm |
|
Packing Dimension |
38cm*20cm*11cm |
|
Weight |
0.8kg |
Technical Parameter
Shape: Rectangular.
Input Voltage: 125 VDC
Terminal Blocks: 2 terminal blocks are located in the bottom corner.
Connectors: Multiple female plug connectors.
Indicator Lights: 8 green LED indicators along one long edge, showing the power-on status.
Protection Devices: Multiple fuses to protect components from overvoltage and other abnormal voltage conditions.
Other Components: Metal oxide varistors, capacitors and resistors.
Functional Features
Power Distribution Function: GE IS200EPDMG1ABA is mainly responsible for power distribution among the components in the control system that enables the stable operation of each component with a reasonable power supply.
Feature-rich: GE IS200EPDMG1ABA integrates various functions such as high·precision reading and intelligent correction. Its capability of power distribution is precise and can satisfy the power demands of different components under multiple working states.
Modular Architecture: Designed to be simply installed and replaced inside Mark VIe system, allowing for reduced maintenance downtime.
Operation Methods
Mounting: Install GE IS200EPDMG1ABA into the terminal/contrib subframe of the Mark VI system Read instruction manual for correct alignment and securing connections.
Power-Up: Attach the module to a 24V DC power supply Make sure the power input is within specified range.
Configuration: Use GE proprietary software tools (e.g. ToolboxST) to configure GE IS200EPDMG1ABA and integrate into the control system.
Communication Setup: Establish an Ethernet communication link with other subsystem components. Configure IP addressing and networking correctly.
Application Areas
Industrial Manufacturing: It is applied in metallurgical production as steel mills and aluminum smelters, in the control systems of furnaces, rolling mills and other equipment. GE IS200EPDMG1ABA provides power for control systems of these large metallurgical equipment and realizes automated control of temperature, pressure, speed and other parameters in the production process.
Power Generation Industry：It is an important part of Mark VI control system in steam turbine power plants. It is responsible for the power distribution of steam turbine control system, and works with other devices to monitor and control the running status of the steam turbine.
District Energy Systems: In district energy systems that supply heating and cooling, steam turbines or gas turbines are often used to generate thermal energy and electrical energy. GE IS200EPDMG1ABA can be used in the control system of these turbines to ensure the stable operation of the district energy system and the efficient supply of energy.
