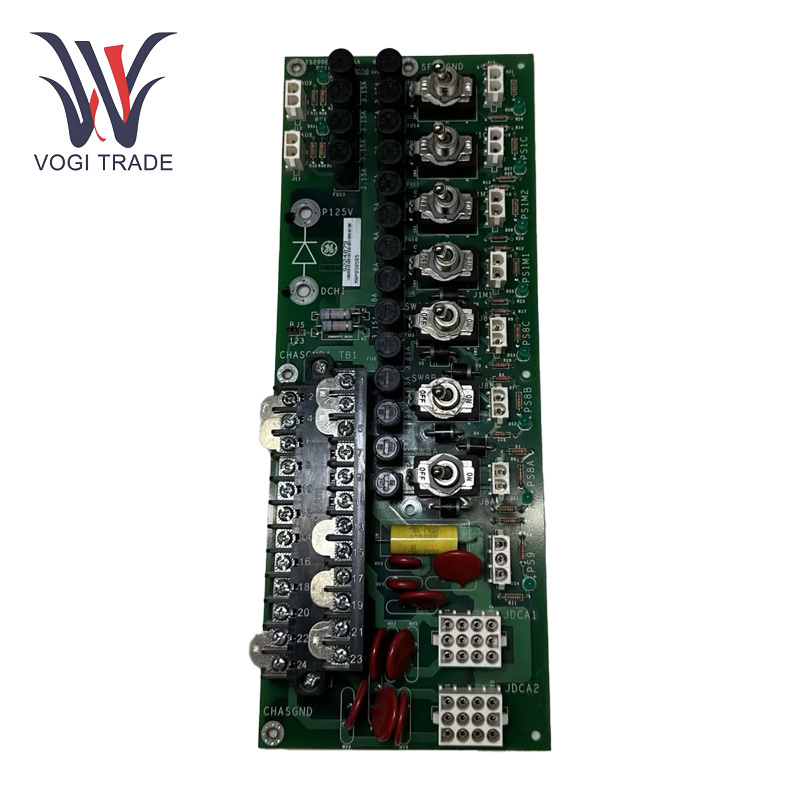

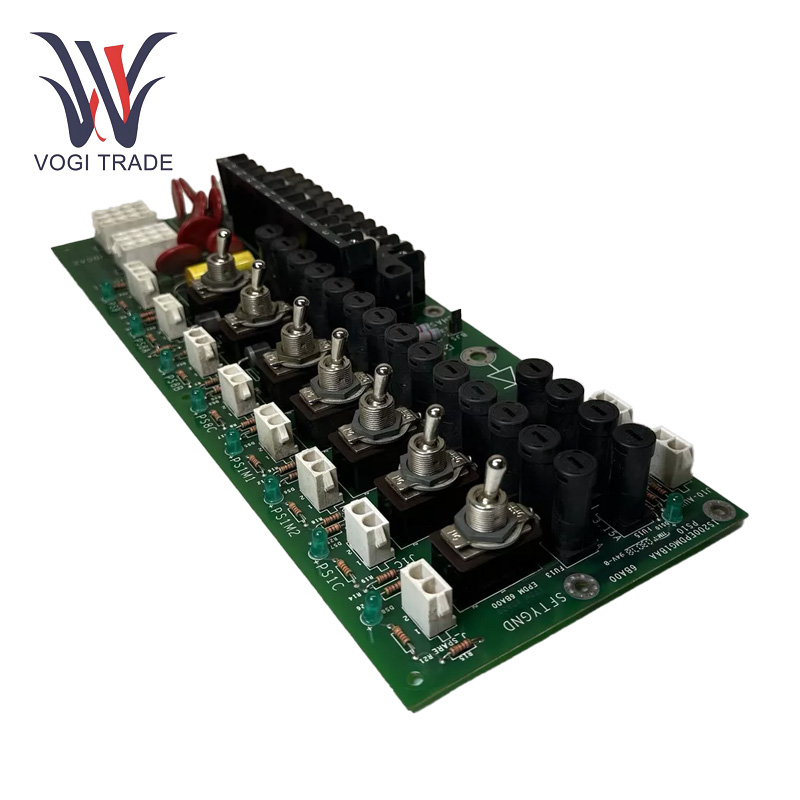

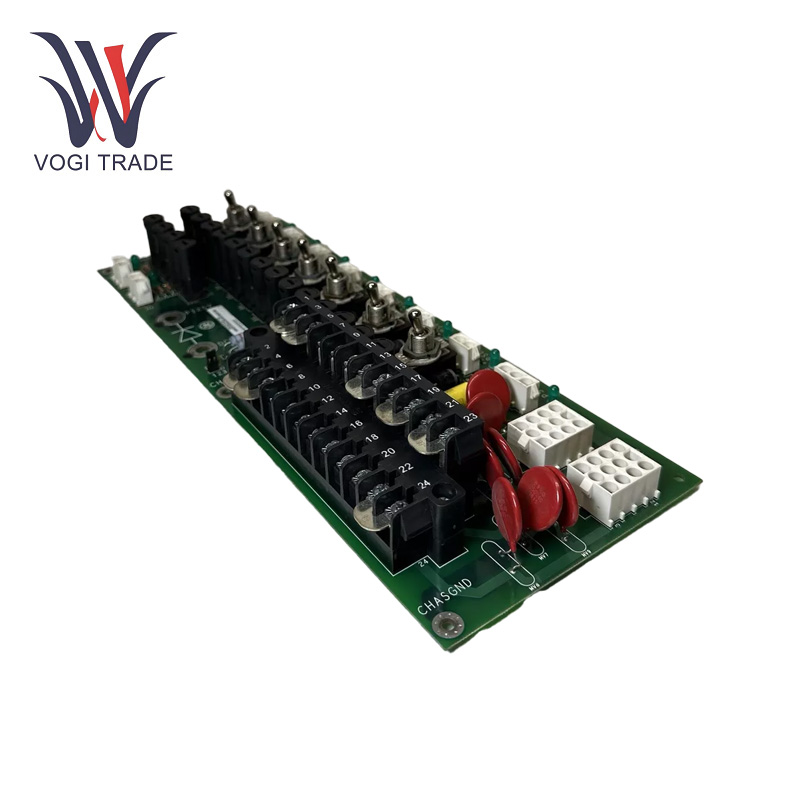

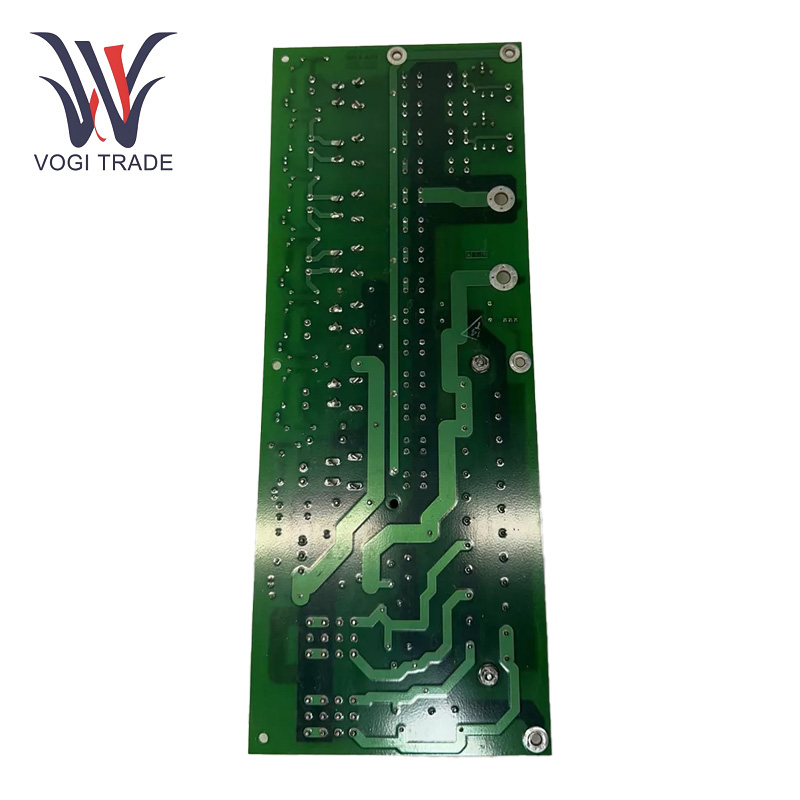

Brand: GE Description: Exciter Power Distribution Module Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 7 Payment Term: T/T Shipping Port: ShenZhen GE IS200EPDMG1BAA is an Excitation Power Distribution Module used to provide power regulation and distribution to turbine excitation systems. Incorporating sophisticated circuit design and fault protection features, it includes fault tolerance measures and minimal impact, allowing for better safety and reliability of the turbine system.
|
Manufacture |
GE |
|
Model Number |
IS200EPDMG1BAA |
|
Ordering Number |
IS200EPDMG1BAA |
|
Catalog |
EX2100 |
|
Country Of Origin |
USA |
|
HS CODE |
8479909090 |
|
Dimension |
40cm*18cm*6cm |
|
Packing Dimension |
42cm*20cm*8cm |
|
Weight |
1.2kg |
Technical Parameter
Input Voltage: 24V DC.
Operating Temperature Range: -40°C to +85°C.
Storage Temperature Range: -40°C to +105°C.
Connectors: Multiple female plug connectors.
Indicator Lights: 8 green LED indicators along one long edge, showing the power-on status.
Protection Devices: Multiple fuses to protect components from overvoltage and other abnormal voltage conditions.
Functional Features
Rapid Processing Capability: GE IS200EPDMG1BAA features a high-performance microcontroller that can execute intricate control algorithms and process real-time data efficiently.
Strong Communications: It supports several communication protocols, allowing integration with other control systems and devices.
Accuracy Control: GE IS200EPDMG1BAA enables accurate control over the working of turbines, increasing their efficiency and reducing the energy consumption.
Operation Methods
Installation: Physically rack GE IS200EPDMG1BAA and plug it into the power supply and comms network
Configuration: The current application and flexibility to use the desired microcontroller as a platform to configure the module.
Diagnostics: Use the integrated diagnostic tools for real-time monitoring of the system performance and information on errors.
Application Areas
Power Generation Industry：In steam turbine power plants, GE IS200EPDMG1BAA played a key role in the Mark VI control system and was in charge of power distribution and collaborating with other equipment to monitor and control the operations of steam turbine.
Petrochemical Industry: The control system can be applied to gas transmission pipeline, used to control the gas turbine drive gas compressor, ensuring the smooth transmission and distribution of natural gas.
Marine Industry: GE IS200EPDMG1BAA is used in marine gas turbines or steam turbine propulsion systems to provide control over the speed and operation status of turbines, offering reliable power for the ship, and improves the performance and safety of the ship.
