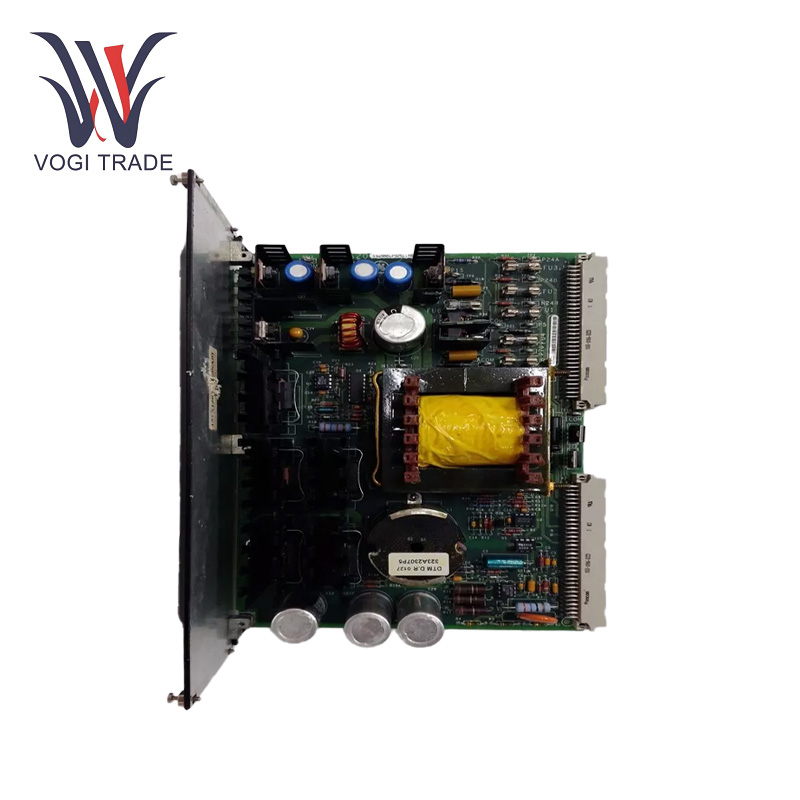

Brand: GE Description: Exciter Power Supply Module Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 7 Payment Term: T/T Shipping Port: ShenZhen GE IS200EPSMG1A converts 125VDC to multiple voltages, providing stable power, integrated protection, and real-time status monitoring with LED indicators.
|
Manufacture |
GE |
|
Model Number |
IS200EPSMG1A |
|
Ordering Number |
IS200EPSMG1A |
|
Catalog |
EX2100 |
|
Country Of Origin |
USA |
|
HS CODE |
8479909090 |
|
Dimension |
35cm*30cm*15cm |
|
Packing Dimension |
37cm*32cm*17cm |
|
Weight |
1.5kg |
Operating Parameters
Input Voltage: 125VDC.
Output Voltage: 5VDC, 15VDC, 24VDC, and 70VDC.
Type of components: transformer, inductor, capacitor, transistor, resistor, integrated circuit, fuse,
LED Quantity: 7.
Fuse Quantity: 9.
Connector Quantity: 2.
Butai Capacitor Type: Axial and high-voltage electrolytic capacitor.
Type of Resistor: film resistors in metal; carbon} composite resistors.
Extra Radiator Quantity: 4.
Inductor coil: The L2 is a small inductor coil.
Product Feature
Provides Stable Power Supply: It provides a stable and accurate power supply for the excitation device to ensure stable operation of generators and the reliability of excitation systems.
Integrated Protection: It has overvoltage, over-current and other protection functions to protect the power supply circuit and associated equipment for high security and reliability.
Front Panel Showing: 7 LED lights on the front panel can visually show the working state of the module.
Variety of Elements: GE IS200EPSMG1A includes transformers, Bionic inductors, a few inductor coils, transistors with heat sinks, axial and high-voltage electrolytic capacitors, disc capacitors, metal film resistors, carbon composite resistors, integrated circuits, fuses and TP test points.
Installation
To install GE IS200EPSMG1A in an EPBP backplane, align the module to the appropriate slot and push it in until the two are firmly connected. Make sure to properly connect the connectors on the module to the appropriate interfaces on its backplane. Tighten the connections to ensure good signal and power transmission.
Troubleshooting
Overheating: If GE IS200EPSMG1A overheats, confirm whether the heat dissipation environment is good. Keep an adequate distance from the module, to ensure airflow. Make sure the cooling fan is functional. Also, experiment on or identify a short circuit or over-current in the circuit that may generate excessive heat.
Abnormal Output Voltage: In this initial step, you need to check the load first connected to the output terminal to find out whether there is a short circuit or overloading, if you find no abnormal to the load connected, then you can check output voltage regarding it not matching any set value. Then, measure the voltage regulation circuit in the module, for example, transistors, integrated circuits.
Application range
Hydro-power Plants: GE IS200EPSMG1A is also suitable for hydro-power plants, so that the excitation system of the hydro-generator can obtain real-time power support and ensure that the power generation equipment operates normally.
Industrial Proses Power: It could be used in some large industrial power systems mainly metallurgical process, chemical process, but also can supply power to the excitation systems of generators of the industrial substation, in order to ensure the stability operation of the industrial power grid.
