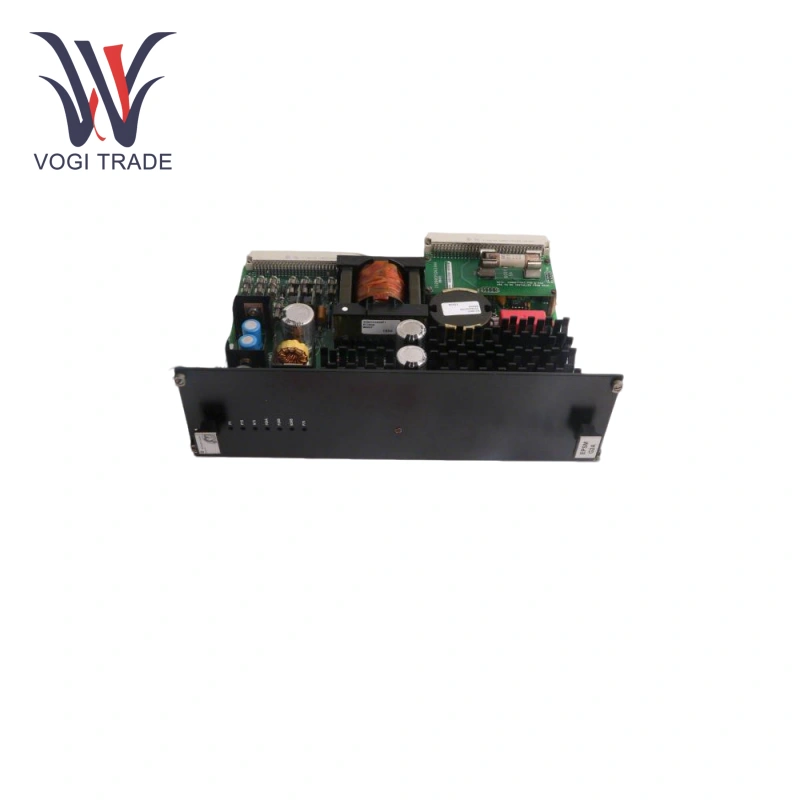

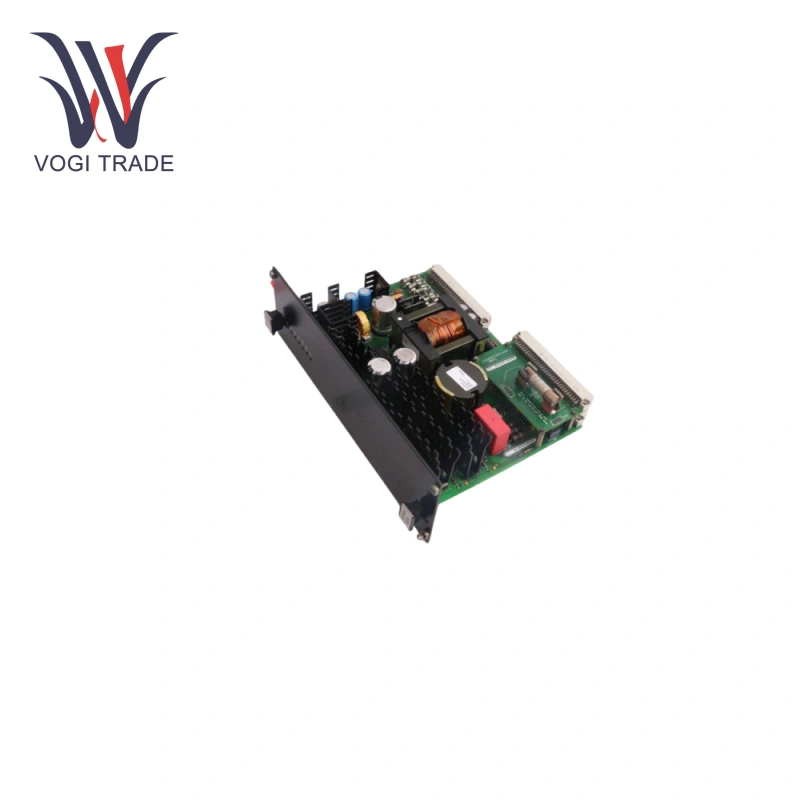

Brand: GE Description: Analog Input Modules Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 3 Payment Term: T/T Shipping Port: Shenzhen GE IS200EPSMG2ADC is a high-performance analog input module for the GE Mark VIe control system, designed for industrial automation.
|
Manufacture |
GE |
|
Model Number |
IS200EPSMG2ADC |
|
Ordering Number |
IS200EPSMG2ADC |
|
Catalog |
GE Mark VIe |
|
Country Of Origin |
USA |
|
HS CODE |
8473309000 |
|
Dimension |
16*11*4CM |
|
Packing Dimension |
18*13*6CM |
|
Weight |
0.8kg |
Number of input channels: 8 differential or 16 single-ended;
Input signal type: ±10V, ±5V, ±2.5V, ±1.25V, 0-10V, 0-5V (voltage); ±20mA, 4-20mA, 0-20mA (current);
Resolution: 16 bits;
Sampling rate: 250Hz/channel;
Isolation type: isolation between channels, isolation between channels and system.
Core Functions
High-precision signal acquisition:16-bit ADC ensures data acquisition accuracy, suitable for temperature, pressure and other high-precision monitoring scenarios.
Flexible Configuration and Expansion: GE IS200EPSMG2ADC supports flexible switching of voltage/current signals to meet the needs of different sensor interfaces.
Anti-interference and stability: channel isolation design to inhibit electromagnetic interference, wide temperature range (-20 ℃ to 70 ℃) to protect the reliability of industrial sites.
Typical Application Scenarios
Power industry: GE IS200EPSMG2ADC is used in power plant monitoring system to collect voltage/current parameters of generators, transformers and other equipment to realize real-time control and fault warning.
Petrochemical industry: GE IS200EPSMG2ADC is used in the process control system of oil refineries to monitor the analog signals of pipeline pressure, flow rate, etc. to optimize the production process.
Metallurgical industry: integrated in the blast furnace temperature control system, through high-precision signal acquisition to ensure the stability of the smelting process.
