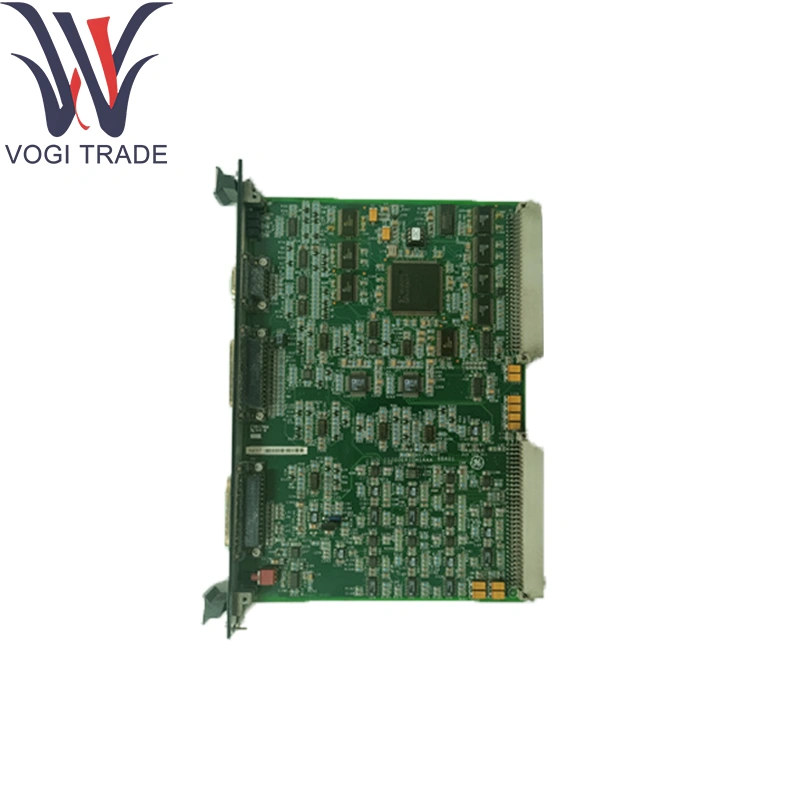

GE IS200EROCH1ABB

Technical Parameters

Operator Inputs:

Up to 16 discrete push-button or selector inputs (24 V DC wetting)

Input debounce: 10 ms hardware GE IS200EROCH1ABB

Isolation: 1 kV channel-to-ground

Operator Outputs:

Up to 16 discrete lamp or LED drive outputs (open-collector, 24 V DC @ 100 mA)

Protected against overcurrent and reverse polarity

Keypad Interface:

4 × 4 matrix keypad support via multiplexed scan bus GE IS200EROCH1ABB

HMI Back-panel Connector: Standard 16-pin ribbon for custom LCD modules or text displays

Status LEDs: Local "Power OK", "Comm OK", "Fault" indicators on front edge

Connectors:

Dual 50-pin I/O-pack backplane connectors

Field wiring via two 26-way pluggable terminal blocks GE IS200EROCH1ABB

Environmental:

Operating Temp: –30 °C to +65 °C

Storage Temp: –40 °C to +85 °C

Humidity: up to 95 % RH, non-condensing

Product function

Local Control Station Interface: Routes discrete operator commands (start, stop, reset, mode select) into the Mark VIe CPU, and drives local status lamps or LEDs in response to system alarms and modes.

Keypad/Display Integration: Provides scanned matrix bus and power to low-power LCD or LED displays for local readouts of key parameters (speed, temperature, trip status).

Emergency Shutdown Support: Interfaces with dedicated E-stop pushbuttons and "Trip" lamps for rapid manual intervention GE IS200EROCH1ABB

Core supporting modules

I/O Pack Carrier: IS42xPSCAH1B power/carrier assembly supplying 24 V DC and IONet connectivity

Controller Module: Mark VIe CPU (e.g., IS200TPROH1C) processing operator inputs and driving outputs via IONet

Annunciator Packs: Complementary lamp-driver modules for high-power indicator loads (e.g., IS400TRLYS1B)

Extension components

Pluggable Terminal Blocks: 26-way blocks keyed for input vs. output channels; available with integrated cable strain relief

Front-Panel Frame Kits: Bezel and gaskets for mounting pushbuttons, selector switches, and indicator lamps

Ribbon-Cable Assemblies: 16-pin harnesses for connection to custom alphanumeric or graphical LCD modules

Emergency Stop Kit: Stainless-steel pushbutton assemblies and mushroom-head operators with integrated wiring harness GE IS200EROCH1ABB

Software support

Configuration: Input-and-output mapping, debounce timing, and lamp-flash patterns defined via GE ToolboxST™ I/O-Pack Wizard

Diagnostics & Monitoring:

Per-channel input and output health flags available in HMI and OPC-DA tags

Self-test on power-up confirming lamp-drive and keypad-scan integrity, with failures logged in controller diagnostics

Firmware: No on-board firmware; all logic resides in the Mark VIe application program

Documentation: Detailed in the GE Mark VIe/VIeS I/O Installation Guide under "Remote Operator Control Interface" section
