Brand: GE Description: IS200ERSCG1AAA Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 13 Payment Term: T/T Shipping Port: Shenzhen GE IS200ERSCG1AAA Provides secure, safety-rated bridging of remote I/O into the Mark VIeS IONet safety network.
|
Manufacture |
GE |
|
Model Number |
IS200ERSCG1AAA |
|
Ordering Number |
IS200ERSCG1AAA |
|
Catalog |
Mark VI |
|
Description |

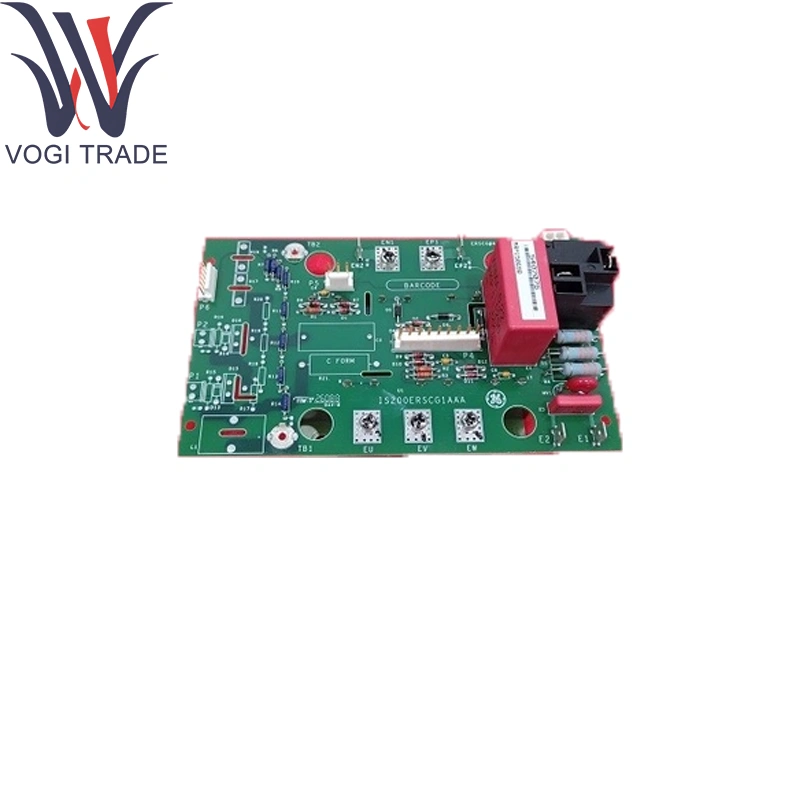

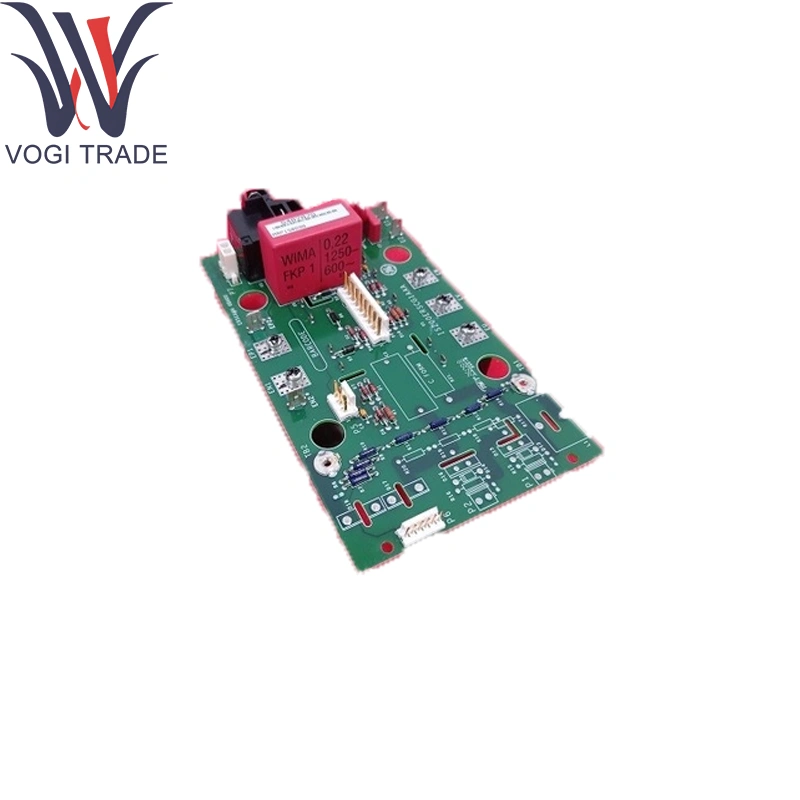

GE IS200ERSCG1AAA Exciter Regulator Static Converter Board |
|
Country Of Origin |
USA |
|
HS CODE |
8479909090 |
|
Dimension |
233 × 160 × 50 mm |
|
Weight |
0.85 kg |
Technical Parameters
Safety Rating: SIL 3 per IEC 61508; certified for YSIL safety loops. The GE IS200ERSCG1AAA provides Ethernet Ports: 2 × 10/100Base-T redundant RJ-45 (auto-MDIX).
Backplane Interface: Dual 50-pin connectors to safety-I/O carrier.
I/O Capacity: Up to 16 remote discrete-safe-input circuits. Up to 8 remote safe-output circuits (dry-contact). This defines the safe channel capacity handled by the GE IS200ERSCG1AAA.
Protocol: Proprietary safety-tunneled IONet over Ethernet (time-sliced, cyclic redundancy).
Isolation: 2 kV reinforced between Ethernet ports and I/O circuits.
Memory & CPU: 64 MB FRAM for safety-solid-state logging. 32 MB Flash for firmware/configuration.
Power: 24 V DC via safety-I/O backplane, 1.2 A max.
Environmental: Operating Temp: –30 °C to +65 °C. Storage Temp: –40 °C to +85 °C. Humidity: up to 95 % RH, non-condensing.
Product function
The GE IS200ERSCG1AAA handles Safety Tunneling: Encapsulates remote safety I/O data into cyclic, time-synchronized Ethernet frames with end-to-end integrity checks and supervised fail-safe thresholds.
Deterministic Delivery: Guarantees I/O update latencies < 2ms with built-in watchdog and heartbeat supervision.
Remote I/O Expansion: Allows field mounting of safety I/O racks up to 100 m from the main cabinet using standard Ethernet cabling, reducing junction-box wiring complexity. This remote capability is enabled by the GE IS200ERSCG1AAA gateway.
Core supporting modules
Safety-I/O Carrier: IS42xYSICAH1B providing power and backplane connections for YSIL loops. This carrier interfaces directly with the GE IS200ERSCG1AAA module.
Core Safety Controller: IS220YSILS1B hosting central shutdown logic and diagnostics.
Terminal Boards: Local discrete-input/output terminal modules (IS200STCIH2A, IS400TRLYS1B) in remote racks.
Extension components
Pluggable Terminal Blocks: Screw-clamp blocks keyed for safe-input and safe-output circuits.
DIN-Rail & Panel Mount Kits: Adapter clips and brackets for remote-rack installation.
Shielding Accessories: Cable-shield clamps and ferrite cores to maintain signal integrity in long-haul runs.
Spare FRAM Modules: Removable logging modules for offline safety-event analysis. FRAM module replacement ensures continued data capture for the GE IS200ERSCG1AAA.
Software support
Configuration: Safety-loop mapping, network-address assignment, and heartbeat parameters set via GE ToolboxST™ Safety-I/O Wizard.
Diagnostics & Monitoring: Per-channel fault counters, latency logs, and link-health indicators accessible through HMI and OPC-DA safety tags. Comprehensive diagnostics monitor the health and performance of the GE IS200ERSCG1AAA. Automatic fault-injection test routines for periodic loop verification.
Firmware Management: Secure-boot firmware updates delivered via ToolboxST™ with CRC and digital-signature validation.
Documentation: Detailed in GE Mark VIeS Ethernet Remote I/O Safety Gateway Manual and the YSIL Safety-I/O Installation Guide.
