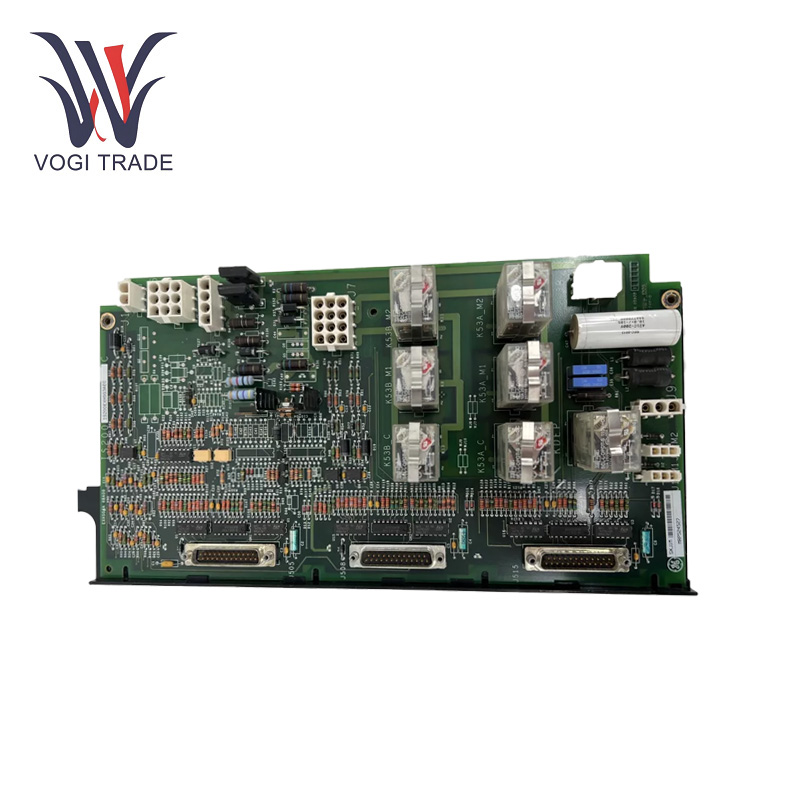

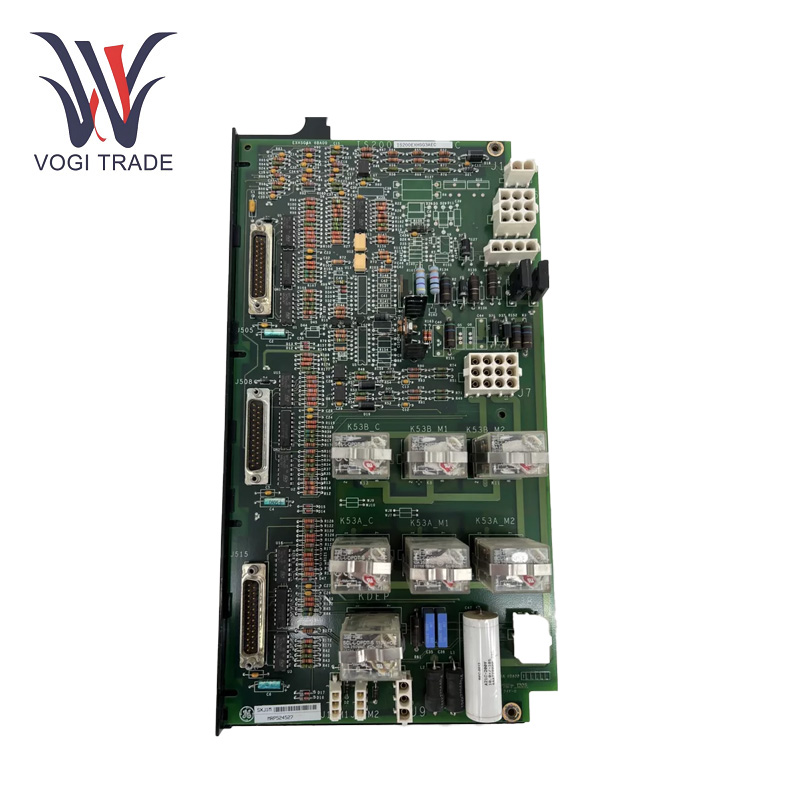

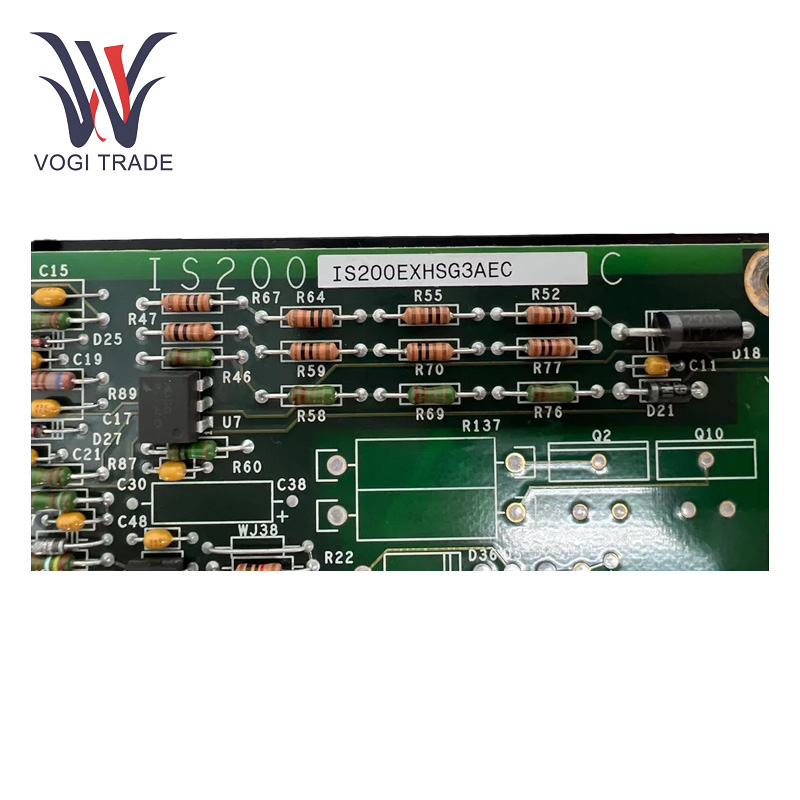

Brand: GE Description: Exciter H.S. Relay Driver Board Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 5 Payment Term: T/T Shipping Port: ShenZhen GE IS200EXHSG3AEC is a high-performance device that is purpose-designed for high-speed data acquisition and signal processing in demanding applications in power generation and other sectors. It supports a wide range of signal types with many input and output channels, operational in analog, digital and pulse formats.
|
Manufacture |
GE |
|
Model Number |
IS200EXHSG3AEC |
|
Ordering Number |
IS200EXHSG3AEC |
|
Catalog |
EX2100 |
|
Country Of Origin |
USA |
|
HS CODE |
8479909090 |
|
Dimension |
40cm*30cm*6cm |
|
Packing Dimension |
42cm*32cm*8cm |
|
Weight |
1.5kg |
Technical Parameter
Input Voltage: 24V DC.
Operating Temperature Range: -40°C to +70°C.
Storage Temperature Range: -40°C to +85°C.
Humidity Tolerance: 5% to 95% (non-condensing).
Communication Protocol: Ethernet-based communication
Relays: 7 in total.
Capacitors4: More than 50.
Resistors4: More than 100.
Functional Features
High-speed relay driving: GE IS200EXHSG3AEC is equipped with solid-state relay driver, can drive high-speed contactor, complete high-speed circuit opening and closing, meeting the system high-speed operation and control needs.
Ethernet Connectivity: GE IS200EXHSG3AEC enables connection to HDMI monitors or projectors for easy human-machine interface visualization.
Signal Transmission and Control: Different signals related to excitation control are received and processed, and then accurate control signals are transmitted to the relevant components to ensure the normal operation of the excitation control system.
Component Integration: GE IS200EXHSG3AEC integrates components such as heat sink components, integrated circuits, transistors, capacitors and resistors, which simplifies the system structure and improves the integration and reliability of the system.
Application Areas
Gas Turbine Power Plants: In the gas turbine power generation system, it is mainly used in the excitation control of gas turbine generators, and helps to keep the stable operation of generator, improve the power plant's efficiency.
Thermal Power Plants: GE IS200EXHSG3AEC is utilized in the excitation control system of generators at thermal power plants, where it controls the excitation current and stabilizes both the output voltage and reactive power of the generator, enhancing power generation in terms of efficiency and stability.
Metal smelting: In metal smelting enterprises, it can be used in the excitation control of large motors and generators in the smelting process, so as to ensure the stable operation of production equipment and improve production efficiency.
Marine propulsion: GE IS200EXHSG3AEC can be further used for the excitation control of marine propulsion motors for enhancing the propulsion efficiency and reliability of ships.
Hydropower Plants: It is used in the excitation control system of hydropower generators, which adjusts the output power of hydropower units according to the water flow situation and enhances the quality of power supply.
