Brand: GE Description: AC Module Power Supply Board Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 4 Payment Term: T/T Shipping Port: Shenzhen GE IS200JPDBG1A is used to provide a stable 28VDC control power supply for AC modules and integrates fault monitoring and status feedback functions. It adopts a modular design, supports redundant configuration, and is suitable for industrial scenarios with high reliability requirements.
|
Manufacture |
GE |
|
Model Number |
IS200JPDBG1A |
|
Ordering Number |
IS200JPDBG1A |
|
Catalog |
Mark VI |
|
Country Of Origin |
United States (US) |
|
HS CODE |
8504902000 |
|
Dimension |
26*22*16cm |
|
Weight |
0.6kg |
Product Features
GE IS200JPDBG1A provides a 28VDC control power supply output, supporting 115V or 230V AC input (20A current, 50/60Hz frequency), and provides real-time feedback on power status through fuses and passive monitoring circuits. All circuits are equipped with independent fuses for quick fault location.

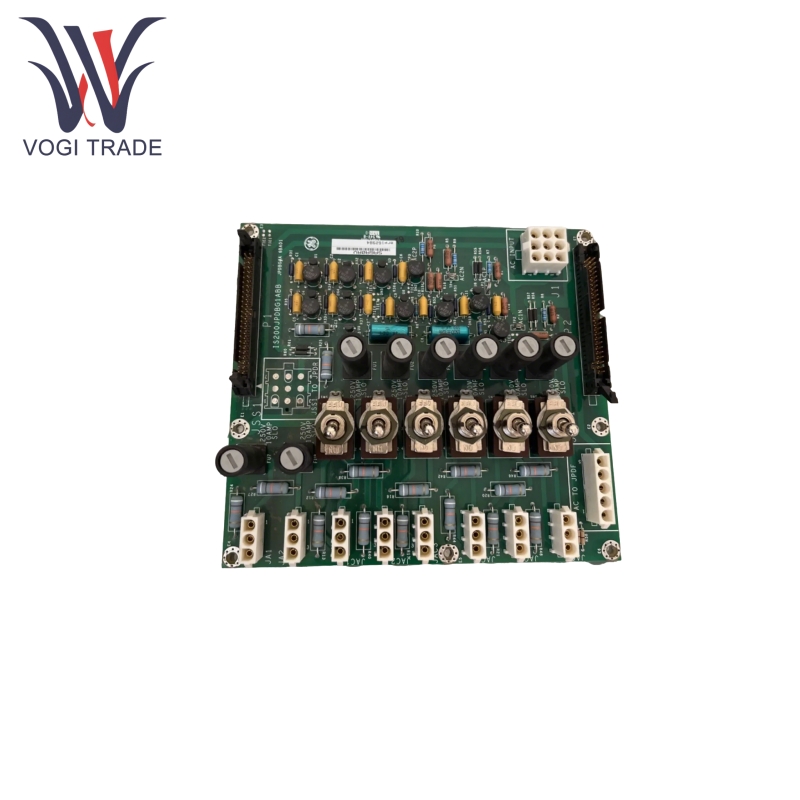

GE IS200JPDBG1A integrates 6 toggle switches and 10 connector ports (including JAC1-JAC6, AC to JPDF, etc.) for channel selection, power switching, and signal transmission. Additionally, the module includes TP test points, resistors, capacitors, and other components to support circuit parameter measurement and diagnosis.
GE IS200JPDBG1A features a metal housing and anti-interference circuits, capable of withstanding a wide temperature range from -30°C to +65°C. Monitoring signals are transmitted via ribbon cable connectors, ensuring stable data transmission.
Product Using Principle
GE IS200JPDBG1A receives external power through the AC input interface, which is then converted by the internal conversion circuit into a 28VDC control power supply. This power is distributed to each output channel via fuses. A toggle switch is used to configure the channel on/off status, while the monitoring circuit continuously monitors the power amplitude and fuse status. In case of abnormalities, the system provides feedback to the control system via LEDs or signals. The ribbon cable connector is responsible for transmitting the monitoring signals to the upper-level module, enabling closed-loop control.
Product Applications
GE IS200JPDBG1A is widely used in gas/steam turbine control systems, providing stable power supply for valve drives, sensors, and actuators.
GE IS200JPDBG1A is suitable for process control in industries such as petrochemicals and metallurgy, and can be integrated with PLC and DCS systems to achieve centralized management of production lines.
When used with the GE Mark VI system, GE IS200JPDBG1A optimizes energy distribution, improves power generation efficiency, and supports renewable energy applications such as wind power and hydropower.
