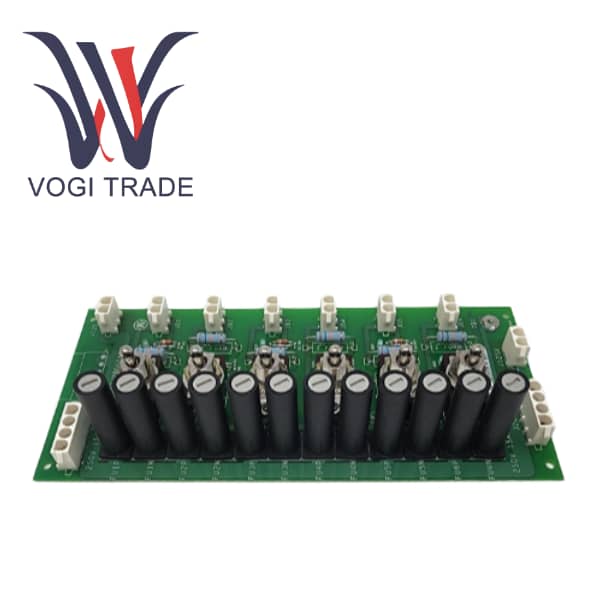

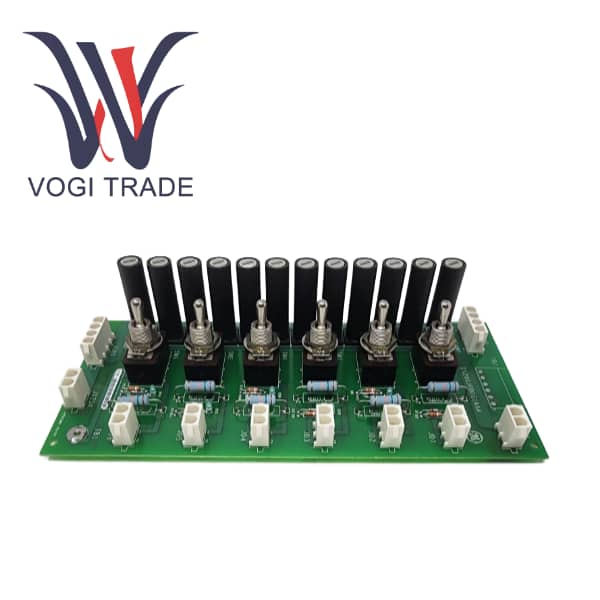

Brand: GE Description: IS200JPDDG1AAA Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 3 Payment Term: T/T Shipping Port: Xiamen The IS200JPDDG1AAA is a DC Power Distribution Board designed as part of the Mark VIe Control System by GE. GE IS200JPDDG1AAA serves to distribute a single DC power input (either 24 V DC or 125 V DC) into multiple isolated and protected output circuits.
|
Manufacture |
GE |
|
Model Number |
IS200JPDDG1AAA |
|
Ordering Number |
IS200JPDDG1AAA |
|
Catalog |
Mark VIe |
|
Description |
dc power distribution board |
|
Country Of Origin |
USA |
|
HS CODE |
8537101190 |
|
Dimension |
233 × 37 × 160 mm |
|
Weight |
0.82 kg |
Technical Parameters
Input Voltage: 24 V DC or 125 V DC (only one input can be used at a time)
Input Connectors: 2-pin Mate-N-Lok (125 V DC), 4-pin Mate-N-Lok (24 V DC)
Output Circuits: 6 identical switched and fused outputs
Output Connectors: 2-pin Mate-N-Lok for TRLY or TBCI boards
Fuse Rating: 15 A, 250 V (¼ in x 1¼ in fuse)Switch: Maintenance switch per output
Indicator: Green LED per output indicating presence of voltage
Operating Temperature: -30°C to +65°C (-22°F to +149°F)
Board Dimensions: 23.495 cm H x 10.795 cm W (9.25 in x 4.25 in)
Mounting: DIN-rail with plastic carrier or base-mounted steel bracket
Product Overview
IS200JPDDG1AAA is a DC distribution board and is part of the GE Mark VIe control system. A single DC power input (24V or 125V) can be distributed to multiple isolated and protected output circuits. Each output includes a maintenance switch, a fuse and a local indicator light, making the IS200JPDDG1AAA highly suitable for applications that require reliable and safe DC power supply for field devices such as relays, solenoid valves and contact input boards.
The GE IS200JPDDG1A belongs to the broader JPDD series and is pre-installed with a 15A fuse, enabling it to be directly used in systems that require branch circuit coordination with standard wiring and connectors.
Functional Features
The dual-input compatibility of this board supports 24V DC and 125V DC inputs, but they cannot be used simultaneously.
The GE dc power distribution board has six fully isolated output circuits, each of which has independent switches and fuses.
This board is easy to maintain. Each circuit contains a switch that can be safely isolated during maintenance.
Visual status indication: Each output green LED indicator light shows the power status.
Floating ground DC system support, designed for floating ground DC power supply, with fuses and switches on both sides of the DC path.
This board contains output connectors that can be used to connect other JPDD boards in a daisy-chain manner.
There is no diagnostic feedback. Unlike the core PDM board, the JPDD of GE IS200JPDDG1AAA is not connected to the PPDA I/O component for system monitoring.
Comparison with Similar Products
|
Model |
Fuse Type |
Fuse Rating |
Features |
|
JPDDG1 |
Pre-installed 15 A fuses |
15 A |
Ready-to-use, standardized protection |
| JPDDG2 |
Empty fuse holders (5 x 20 mm) |
User-defined |
Customizable fuse rating |
| JPDDG3 |
Empty fuse holders (¼ in x 1¼ in) |
User-defined |
Flexible for local fuse preferences |
|
JPDA (AC Version) |
AC distribution, 15 A fuses |
15 A |
For AC loads, similar form factor |
Advantages and disadvantages
Advantages
Plug and play, pre-installed fuses can reduce installation time and errors.
Powerful protection, each output is equipped with a fuse and switch to ensure safety and maintainability.
Flexible input, supporting 24V and 125V DC systems.
Compact design, DIN rail installation saves panel space.
Visual feedback and LED indicator lights simplify troubleshooting.
Disadvantage
It has no diagnostic function and cannot be integrated with PPDA for remote monitoring.
Non-redundant design, when the input power is lost, there is a single point of failure.
Customization is limited. Fixed fuse ratings may not be applicable to all applications (unlike G2/G3 versions).
