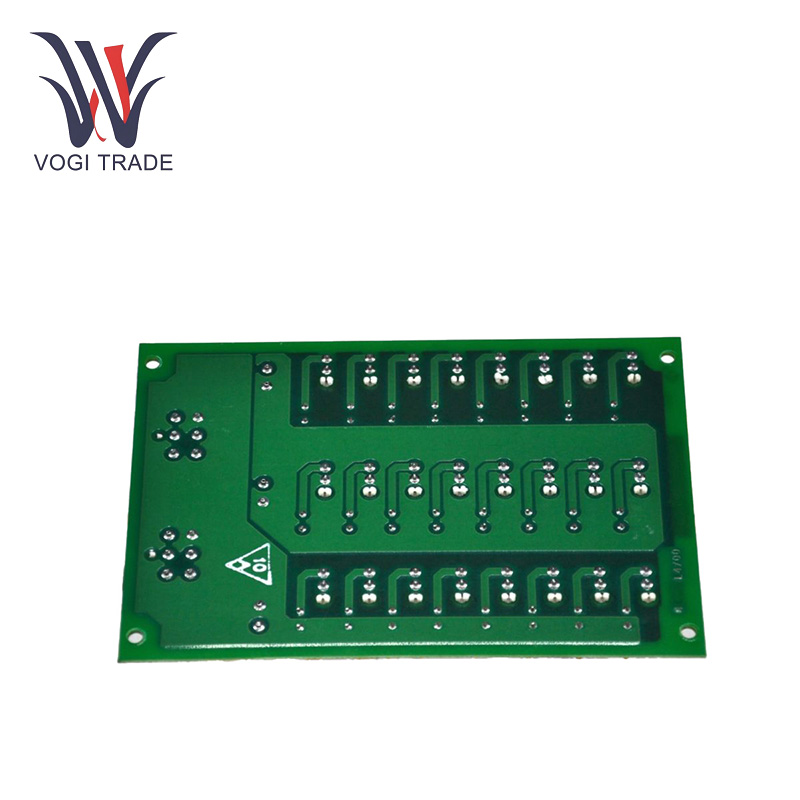

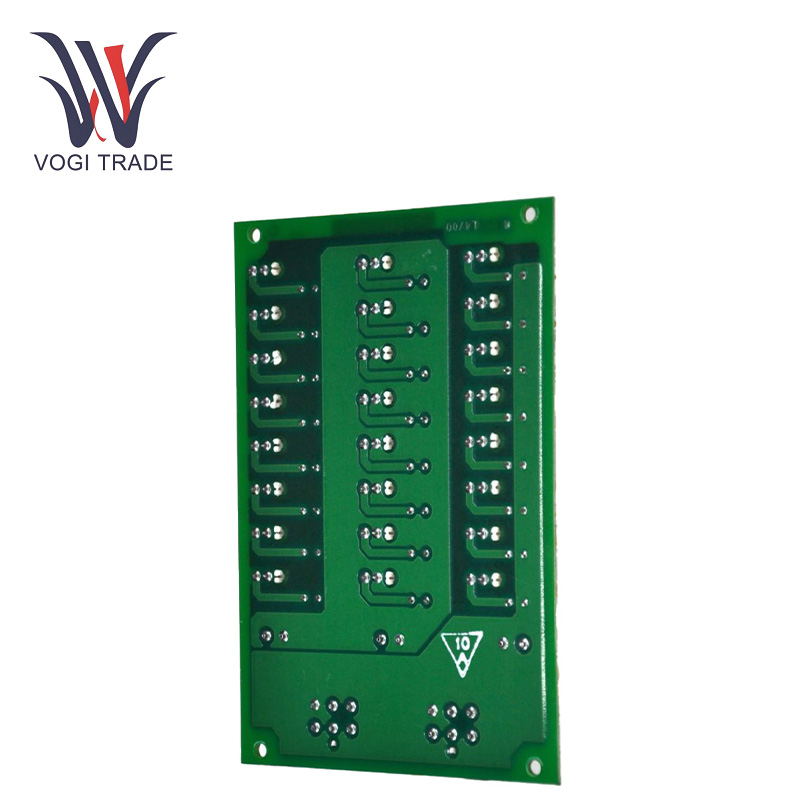

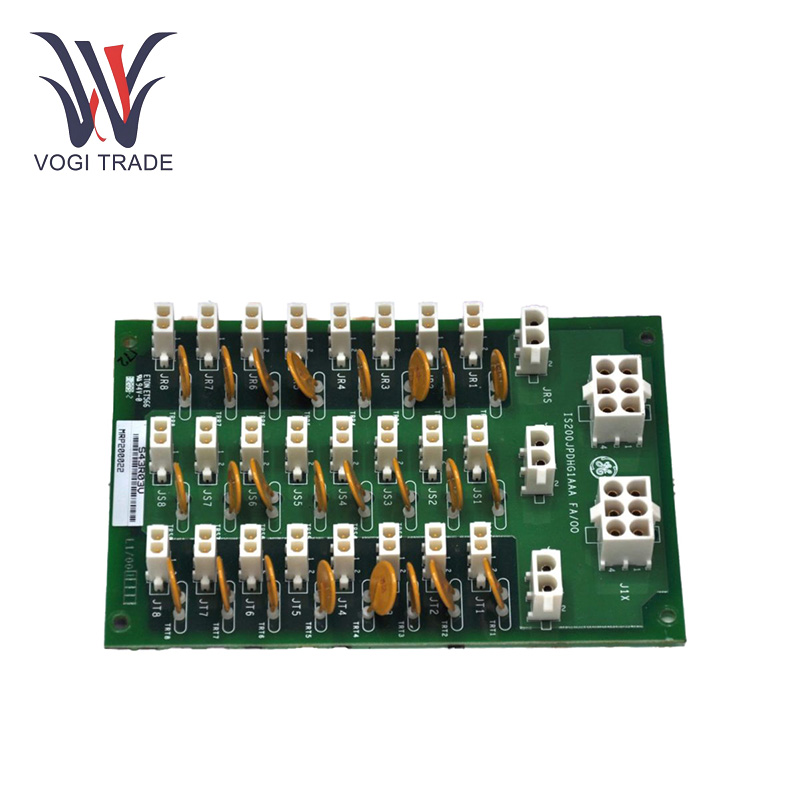

GE IS200JPDHG1AAA

Electrical rating: 24/28 VDC.

Number of plug connectors: 29, including 2 six-pin connectors, 27 two-pin connectors

Temperature range: -30 to 65℃

Humidity range: 5% -95%

Protection level: GE IS200JPDHG1AAA is universally dustproof and moisture-proof, suitable for industrial field environments

Applicable safety standards: UL 508A, CSA 22.2 No.14, EN 61010-1 and other certified safety standards.

Hazardous areas: Applicable to ATEX Zone 2 Group IIC, Class I Division 2 Groups A to D;

Features

Multi-row connectors: Each row contains three rows of eight connectors for providing main power to independent I/O packages.

Branch protection: Each I/O package circuit is equipped with a temperature coefficient fuse device, which can be protected by branch circuits and a positive temperature fuse is provided.

Power supply monitoring: GE IS200JPDHG1AAA has the function of power supply status monitoring, which can monitor the output voltage, current and other parameters in real time, and feed back the relevant information to the control system, so as to detect power supply abnormalities in time and take corresponding measures.

Application Scope

Thermal power generation: In coal-fired, oil-fired or gas-fired thermal power plants, GE IS200JPDHG1AAA serves as a control interface and bridge to achieve precise control of generators and improve power generation efficiency and stability.

Petroleum refining: In factory purification, atmospheric and vacuum distillation and catalytic cracking can achieve precise control and monitoring of parameters such as temperature, pressure, flow, and liquid level during the production process to ensure safe and efficient operation of the refining process.

Chemical manufacturing: In the manufacturing process of chemical products such as fertilizers, plastics, rubber, and fibers, GE IS200JPDHG1AAA is used for the coordinated control of automatic control systems and reactors, heat exchangers, pumps, valves and other devices to achieve precise control of chemical reaction processes, material transportation and distribution, and improve the quality and output of chemical production.

Steel smelting: GE IS200JPDHG1AAA is used for communication and control between iron making, steel making, production control systems and blast furnaces, electric furnaces, rolling mills and other equipment to achieve precise control and monitoring of parameters such as temperature, pressure, flow, and speed during the production process, and improve the quality and efficiency of steel production.

Paper making industry: In the paper making production line, as the control interface between the control system and the paper machine, pulping machine, dryer, and other equipment, it can also accurately control and monitor the production process parameters such as vehicle speed, tension, humidity, temperature, etc., to improve paper quality and production efficiency.

Shipbuilding industry: In the ship power system and automatic control system, it realizes information exchange and collaborative work between systems to improve the operation safety and automation level of the ship.
