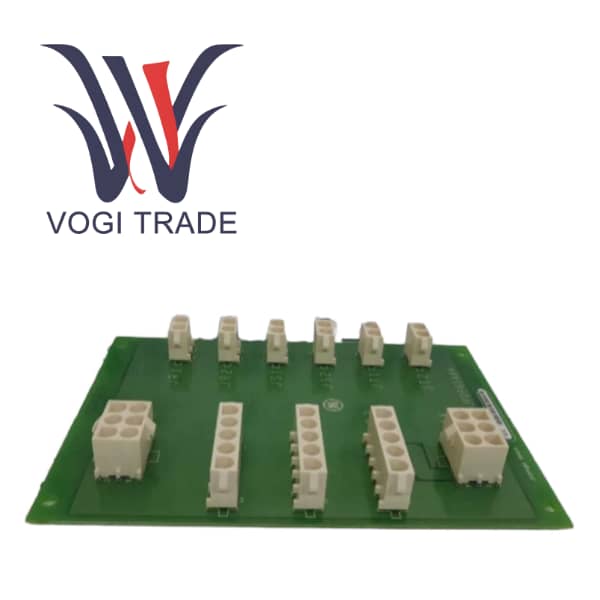

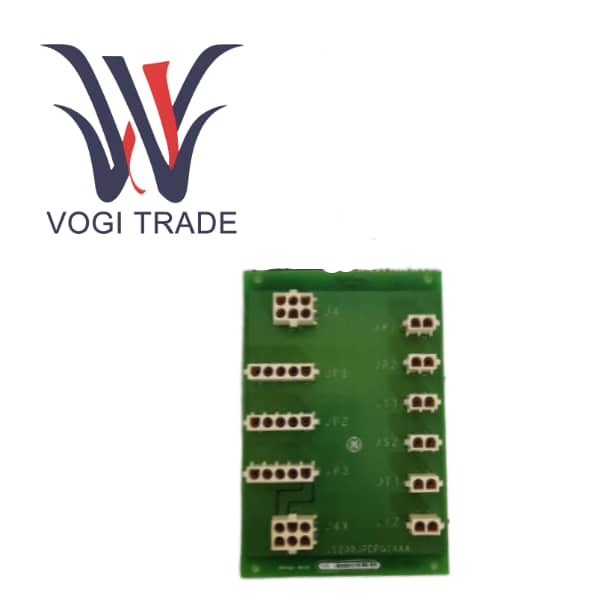

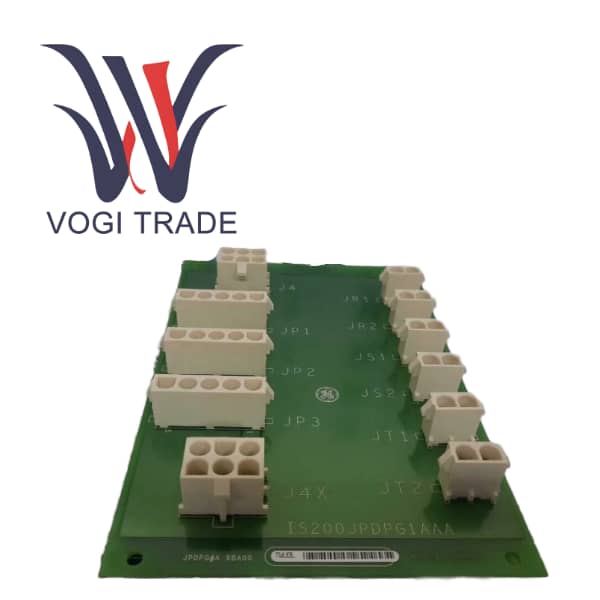

GE IS200JPDPG1AAA

Product Overview

GE IS200JPDPG1AAA is a 125V DC power distribution module specially designed and manufactured by General Electric for its advanced Mark VIe turbine control system. The DC power distribution module is a crucial power infrastructure component in the entire Mark VIe I/O subsystem. The core function of this module is to obtain power from one or more highly reliable 125V DC power sources and distribute it safely, stably, and selectively to various terminal boards, I/O processors, and other critical loads in the system. IS200JPDPG1AAA is not merely a simple distribution panel. The module integrates functions such as input protection, filtering, status monitoring, and diagnostic feedback, ensuring a pure, uninterrupted power supply for downstream sensitive control electronic equipment, and is the cornerstone for ensuring the safe, stable, and continuous operation of key power equipment such as gas turbines and steam turbines.

Product Function Features

The high-reliability redundant power supply architecture is the most prominent feature of IS200JPDPG1AAA.

The module can simultaneously accept inputs from a DC battery and one or two independent AC-DC converters. This design achieves N+1 or even N+2 power redundancy. Even if the battery system or any of the AC-DC converters fails, the system can seamlessly switch to other available power sources, ensuring that the 125V DC control power supply is never interrupted, significantly enhancing the availability of the entire turbine control system.

The comprehensive power purification and protection ensure that the integrated input filter can effectively suppress electromagnetic interference and radio frequency interference from the power supply line, providing a clean power supply for the downstream precise I/O electronic devices. The DC circuit breaker provides overcurrent protection, while the series diode prevents damage caused by reverse power connection due to incorrect wiring.

Intelligent Diagnosis and Status Feedback

Through the close integration with the PPDA I/O package, this module is no longer a dumb power distribution unit. The IS200JPDPG1AAA can promptly feed back key information such as bus voltage, grounding insulation status, and the on/off status of each output branch to the main controller of the Mark VIe. This enables maintenance personnel to remotely diagnose the health status of the power system in the control room, achieve predictive maintenance, quickly locate the fault point, and significantly reduce downtime.

Flexible load distribution capability

In addition to powering the standard terminal board, it also provides two dedicated outputs with current-limiting resistors. This design takes into account the possible special power demands in the field, enhancing the adaptability and flexibility of the system.

Standardization and modular design

As part of the Mark VIe platform, the modules follow unified mechanical and electrical interface standards, facilitating installation, replacement and maintenance within the control cabinet.
