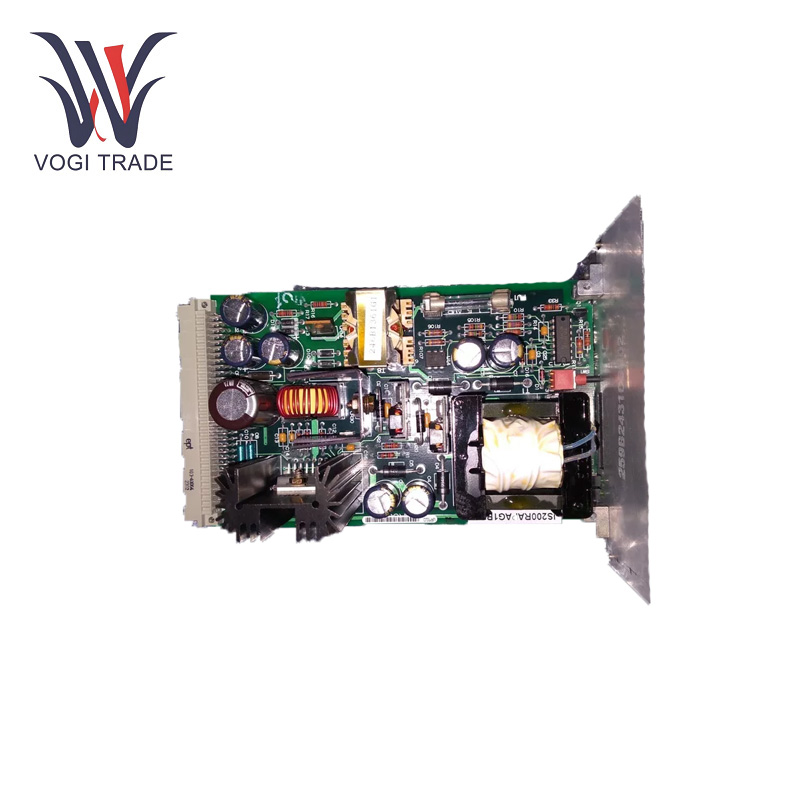

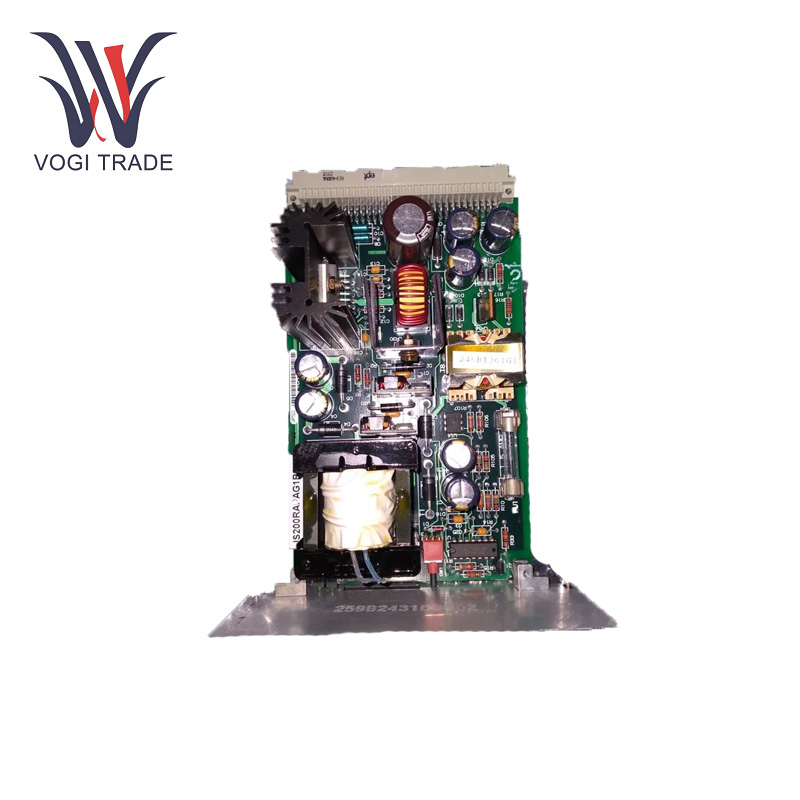

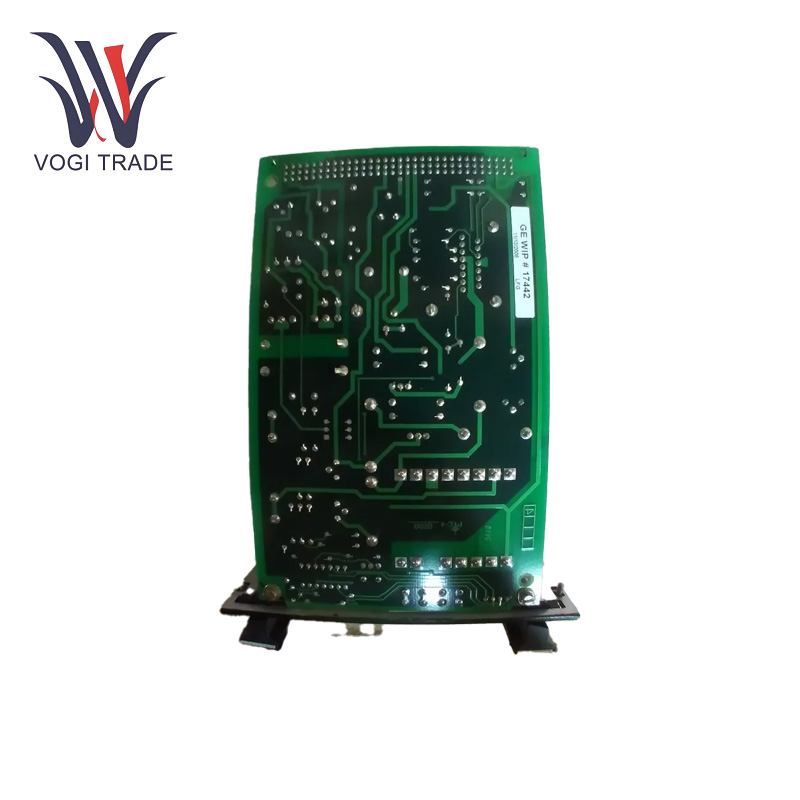

GE IS200RAPAG1BCA

Operating Parameters

Input Voltage: 120V AC or 240V AC.

Current signal type: 0 - 20mA, 0 - 200mA.

Terminal Wire Capacity: For #18 AWG wires.

Data up to October 2023. Connector Type: DC - 37 pin connector.

Isolation voltage: 500V (approx).

Temperature of operation: 0 - 60°C.

Mounting Type: DIN railing or bolted to panel.

Input Frequency: 50/60 Hz (predicted).

Product Features

Flexible Signal Input and Output: It can accept a variety of analog input and output signals The package for analog input supports two - wire, three - wire, and four - wire transmitters and can also work with externally powered transmitters and DC voltage of 5V and 10V. In terms of analog output, the working signals cover both 0 - 20mA and 0 - 200mA current signals. With an extraordinary collection of signal compatibility, it can work with a wide range of sensors and actuators, making it an incredibly flexible solution for a variety of industrial control requirements.

Redundant Protection Function: Backup trip relay in Mark VIe or Mark VleS control systems Together with PPRO or YPRO, it is wired to the relay board and offers a back up protection. By having this as a backup protective feature, it adds to the reliability and safety of the entire control system. If there is a fault in the main protection circuit circuit, GE IS200RAPAG1BCA is ready to take over for equipment safe shutdown and to avoid injury or damage.

Installation

Mounting: Choose an installation site in the control cabinet, clean, dry and well - ventilated. If there is strong electromagnetic interference in the environment, please make sure to eliminate it. Gather desired equipment, such as screwdrivers and wire strippers Inspect GE IS200RAPAG1BCA for any signs of damage, and make sure all components and connectors are functional. The board can be mounted on a DIN rail or attached to a metal plate secured to the panel. If your project utilizes a DIN rail, simply clip the board onto the rail and secure it with the appropriate fasteners. If you bolt to a panel, adjust the mounting holes of the board with the holes on the panel and then use screws to set it. This is to make sure that the board will be installed flat and stable during operating to avoid vibration and loosening.

Troubleshooting

Abnormal signal input As analog input signals are abnormal or unstable in the case, and first made sure that the sensor wire connection is correct, no damage. Verify If the sensor is being powered optimally. In that case, measure the input signals at GE IS200RAPAG1BCA terminals with the multi-meter, this will definitely help you find out if the issue lies in the board or the external sensor.

Protector function failure If the backup protection function does not work, please check whether the wiring between GE IS200RAPAG1BCA and the relay board is correct and firm. Ensure that the configuration and settings of the protection function in the control system are reasonable; If a hardware failure happens like burnt relay in the circuit you may need to replace the board and replace the circuit with a new relay.

Communication Issue: A communication issue may cause it to fail fully, so make sure the communication cable is properly connected and undamaged. Review the board and other devices communication settings and parameters, such as baud rate, to ensure they match the settings expected by the example.

Application range

Gas turbine power plants：In gas turbine power generation systems, GE IS200RAPAG1BCA is an important component to monitor and protect the gas turbine operation. It monitors the voltage and speed signals of the generator and adjusts the fuel supply and combustion process of the gas turbine in conjunction with other control components to ensure efficient and stable operation of the gas turbine and improve the power generation efficiency.

Steam Turbine Power Plants: This board is another key component for steam turbine power plants control system. Steam turbine supervisory system is a control system used to monitor the various parameters of the operation of steam turbine on real time basis including the steam pressure and generator voltage, with the necessary protection and control. Abnormal conditions, such as over-voltage and overs-peed, can quickly actuate the steam turbine stop protection mechanism to prevent equipment damage.

Industrial Automation System：In a variety of industrial automation production lines, GE IS200RAPAG1BCA can be used to monitor and control the operation of motors, pumps, and other equipment. It helps to realize precise control of equipment operation and ensure stable operation of the production line by collecting and processing analog signals from sensors. In the metallurgical and chemical industries, for example, it can monitor the temperature, pressure and flow of the production process, and control the start and stop of equipment to ensure product quality and production safety.
